单端面集装式：只�?对密封结合面，出厂时由密封厂家预先组装好，无需客户调整，直接装配就好。安装方便，使用简单。冷却水压力控制�?.05-0.1MPa之间

外装单端面密封图�?nbsp;

单端面同时又分为内装式（整个密封含大法兰全部浸泡在浆液里，其装配方法从叶轮端往电机端装配）和外装式（整个密封少量部分浸泡在浆液里，其装配方法从电机端往叶轮端装配）

内装单端面密封图牆�/p>

结构特点９�/p>

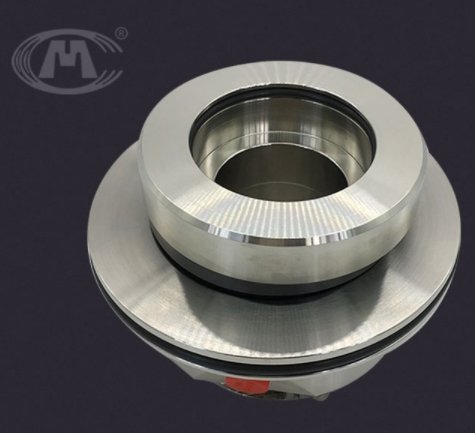

单端面（外装或内装）集装式机械密封。安装方便，使用简单。平衡性，任意旋向、�/p>

内部工作长度短。静环补偿多弹簧外置不与介质接触、�/p>

适用介质９�/p>

含石膏、石灰浆液等杂质含量较高的介质、�/p>

工作参数９�/p>

固定物含量：�?0%

�?nbsp; 度：�?80ℂ�/p>

�?nbsp; 力：�?.5MPa

�?nbsp; 径：�?00mm

材质参数９�/p>

主体材质�?16L�?205�?507�?.4529

密封环材质：SSiC或SiC

橡胶材质：氟橡胶或全氟醚橡胶

主要应用９�/p>

此型机械密封主要用于燃煤发电烟气脱硫上，适用于吸收塔浆液循环泵、石膏浆液泵、石灰石浆液泵、石膏排出泵、�/p>

常见泵号如下９�/p>

LCF40/250I LCF40/350I LCF40/400I LCF40/450I LCF50/350N2 LCF50/400I

LCF50/460I LCF65/310I LCF65/315I LCF65/350I LCF65/400I LCF80/400I

LCF80/450I LCF100/300 LCF100/320I LCF100/350I LCF100/420I LCF125/405I

LCF150/300I LCF150/350I LCF200/300I LCF100/500T LCF150/400I LCF200/410I

LCF250/430I LCF250/430I LC300/500I LC300/530I LC300/400I LC300/635I

LC300/630I LC350/500I LC350/560I LC400/500I LC400/540I LC450/635I

LC500/630I LC550/700I LC550/710I LC550/750I LC600/825I LC700/900I

LC700/898I LC800/1000I LC900/1150I LC500/630II LC550/700II LC550/710II

LC550/750II LC600/825II LC700/900II LC700/898II LC800/1000II LC900/1150II

密封型号９�/p>

HTM-30S251Z HTM-30S351X HTM-30S220Z HTM-30S220Q

HTM-30D251ZZ HTM-30D351X

HTM-40S251Z HTM-40S351X HTM-40S220Z HTM-40S220Q

HTM-40D251ZZ HTM-40D351XX

HTM-55S251Z HTM-55S351X HTM-55S220Z HTM-55S220Q

HTM-55D251ZZ HTM-55D351XX

HTM-60S251Z HTM-60S351X HTM-60S220Z HTM-60S220Q

HTM-60D251ZZ HTM-60D351XX

HTM-80S251Z HTM-80S351X HTM-80S220Z HTM-80S220Q

HTM-80D251ZZ HTM-80D351XX

HTM-85S251Z HTM-85S351X HTM-85S220Z HTM-85S220Q

HTM-85D251ZZ HTM-85D351XX

LB-LK7-120S LB-LK7-120D LB-LK6-115S LB-LK6-115D

HTM-30S HTM-40S HTM-55S HTM-60S HTM-80S

HTM-30D HTM-40D HTM-55D HTM-60D HTM-80D

HR3-125 HR3-142 HR3-158 HR3-175 HR3-198

HR325/230 HR325
