仪器简介：

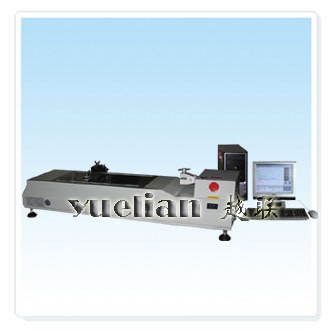

YL-1103　卧式拉力试验朹�/strong>

YL-1103 Horizontal Tensile Tester

一、简　� Brief Introduction

本机针对180��剥离试验而开发设计，采用微电脑芯片控制与荷重元读取数据，与电脑连接做双向传输，搭配功能强大的电脑软件，可将试验结果以曲线与表格显示、可进行比较、打印输出。This Tester is designed for 180�� peel force testing� controlled by microcomputer chip and adopts force sensor to read data� connected computer for two-way transmission� allocated with powerful function computer software� shown testing result by curve chart and form. Testing result can compare and print out.

技术参数：

规　� Specification

容量选择 Optional Capacity 10�?0�?0�?00�?00N

力量解析Force Resolution 1/250�?00

可测行程 Test Stroke 400mm

行程解析 Stroke Resolution 0.005mm

速度范围 Speed range 5~500mm/min，可电脑设定 available set by computer

可测宽距 Test Width 110mm

机台尺寸 Machine Dimension 110x30x26(W��D��H)cm

机台重量 Machine Weight 36kg

机台电源 Power 单相�?00~240VAC�?A� Single phase 100~240VAC�?A

主要特点９�/strong>

YL-1103　卧式拉力试验朹�/strong> Horizontal Tensile Tester

一、简　� Brief Introduction

本机针对180��剥离试验而开发设计，采用微电脑芯片控制与荷重元读取数据，与电脑连接做双向传输，搭配功能强大的电脑软件，可将试验结果以曲线与表格显示、可进行比较、打印输出。This Tester is designed for 180�� peel force testing� controlled by microcomputer chip and adopts force sensor to read data� connected computer for two-way transmission� allocated with powerful function computer software� shown testing result by curve chart and form. Testing result can compare and print out.
