一、A40Y带散热器弹簧全启式安全阀概述９/strong>
A40Y型带散热器弹簧全启式安全阀适用于工作温度≤400℃、YA40Y-1?50℃的空气、水、氮氢混合气等介质的设备或管路上，A40Y-P适用于工作温度≤300℃有腐蚀性介质的设备或管路上，作为超压保护装置?nbsp;

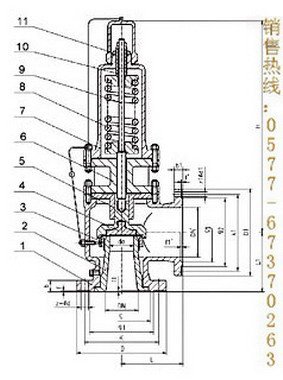

二、A40Y带散热器弹簧全启式安全阀结构图片９/strong>
三、A40Y带散热器弹簧全启式安全阀主要零部件材斘/strong>９/strong>
NO. |
零件名称 |
YA40Y-C材料 |
YA40Y-P材料 |
YA40Y-I材料 |
1 |
阀佒/span> |
WCB |
ZG1Cr18Ni9Ti |
ZG1Cr5Mo |
2 |
阀?/span> |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
3 |
调节圇/span> |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
4 |
阀瓢/span> |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
5 |
导向奖/span> |
2Cr13 |
1Cr18Ni9Ti |
1Cr18Ni9Ti |
6 |
散热?/span> |
ZG230-450 |
ZG230-450 |
ZG230-450 |
7 |
阀盕/span> |
ZG230-450 |
ZG230-450 |
ZG230-450 |
8 |
弹簧 |
50CrVA |
50CrVA包覆氟塑斘/span> |
50CrVA包覆氟塑斘/span> |
9 |
阀杅/span> |
2Cr13 |
1Cr18Ni9Ti |
2Cr13 |
10 |
调整螺杆 |
45 |
1Cr18Ni9Ti |
2Cr13 |
11 |
阀帼/span> |
ZG200-400 |
ZG200-400 |
ZG200-400 |
密封面材斘/span> |
堆焊Co基硬质合釐/span> |
|||
四、A40Y带散热器弹簧全启式安全阀外型尺寸和连接尺寸：
型号 |
公称通径 |
do |
D |
K |
g |
g1 |
b |
f |
f1 |
Z-ød |
DN' |
D1 |
K1 |
g3 |
g2 |
b1 |
f' |
f1' |
z1-ød1 |
L |
L1 |
≈H |
YA40Y-16C |
20 |
15 |
105 |
75 |
55 |
16 |
2 |
4-14 |
25 |
115 |
85 |
65 |
16 |
2 |
4-14 |
110 |
95 |
518 |
||||
25 |
16 |
115 |
85 |
65 |
16 |
2 |
4-14 |
32 |
140 |
100 |
78 |
18 |
2 |
4-18 |
110 |
95 |
518 |
|||||
32 |
20 |
140 |
100 |
78 |
18 |
2 |
4-18 |
40 |
150 |
110 |
85 |
18 |
3 |
4-18 |
115 |
100 |
518 |
|||||
40 |
25 |
150 |
110 |
85 |
18 |
3 |
4-18 |
50 |
165 |
125 |
100 |
20 |
3 |
4-18 |
120 |
110 |
579 |
|||||
50 |
32 |
165 |
125 |
100 |
20 |
3 |
4-18 |
65 |
185 |
145 |
120 |
20 |
3 |
4-18 |
135 |
120 |
639 |
|||||
65 |
40 |
185 |
145 |
120 |
20 |
3 |
4-18 |
80 |
200 |
160 |
135 |
20 |
3 |
8-18 |
160 |
140 |
671 |
|||||
80 |
50 |
200 |
160 |
135 |
20 |
3 |
8-18 |
100 |
220 |
180 |
155 |
22 |
3 |
8-18 |
170 |
135 |
676 |
|||||
100 |
65 |
220 |
180 |
155 |
22 |
3 |
8-18 |
125 |
250 |
210 |
185 |
22 |
3 |
8-18 |
195 |
175 |
787 |
|||||
125 |
80 |
250 |
210 |
185 |
22 |
3 |
8-18 |
150 |
285 |
240 |
210 |
24 |
3 |
8-23 |
210 |
190 |
977 |
|||||
150 |
100 |
285 |
240 |
210 |
24 |
3 |
8-23 |
175 |
310 |
270 |
240 |
26 |
3 |
8-23 |
255 |
230 |
1035 |
|||||
200 |
125 |
340 |
295 |
265 |
26 |
3 |
12-23 |
250 |
405 |
355 |
320 |
30 |
3 |
12-26 |
300 |
260 |
1193 |
|||||
YA40Y-25 |
20 |
15 |
105 |
75 |
55 |
16 |
|
