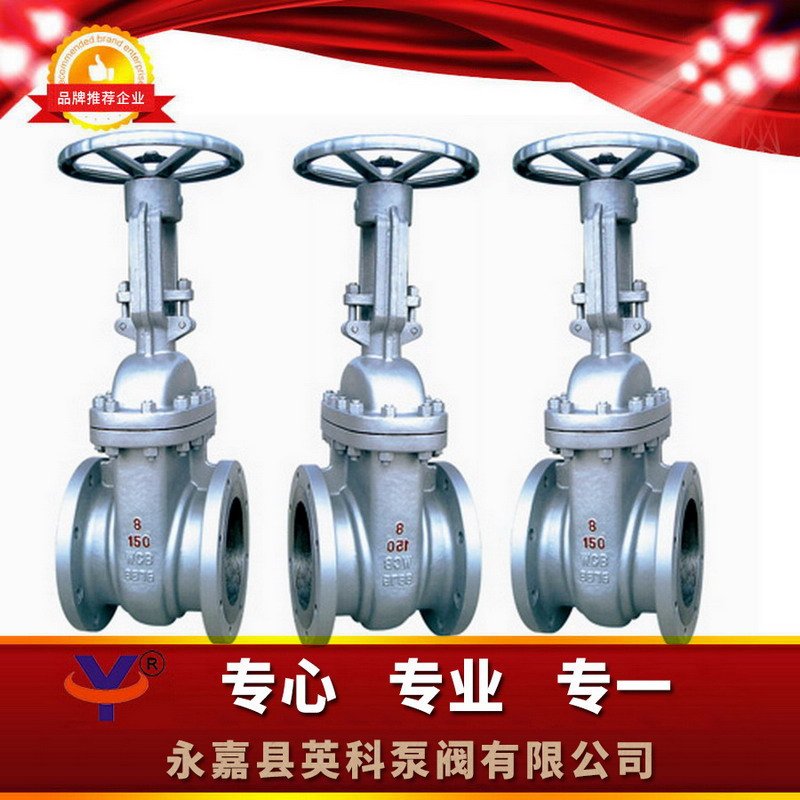

一、Z40WAPI低温法兰闸阀简介:
名称:API低温法兰闸阀
型号:DZ41Y
口径?0?00MM
压力?.6?.4Mpa
温度?196?96ℂ/span>
材料:碳钢、不绣钢筈br/>设计标准:JB、GB、ANSI、BS、API、ISO、DIN、NF
二、Z40WAPI低温法兰闸阀结构特点9/strong>
1、符合国内外先进标准要求,密封可靠,性能优良,造型美观、/p>

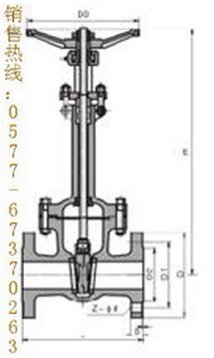

2、闸板与阀座密封面采用司太立(stellite)钴基硬质合金堆焊而成,耐磨、耐高温、耐腐蚀、抗擦伤性能好?nbsp;三、Z40WAPI低温法兰闸阀结构图片9/strong>四、Z40WAPI低温法兰闸阀执行标准9/strong>
项目 |
设计制速/span> |
压力 - 温度基准 |
结构长度 |
法兰连接试验 |
试验与检浊/span> |
标准 |
API600 |
ANSIB16.34 |
ANSI16.10 |
ANSIB16.5 |
API598 |
五、Z40WAPI低温法兰闸阀试验压力9/strong>
试验项目 |
壳体强度试验 Mpa |
高压密封试验 Mpa |
低压密封试验 Mpa |
适应温度 |
|
?/span> |
氳/span> |
氓/span> |
|||
压力等级 |
150Lb |
3.0 |
2.2 |
0.6 |
≣/span>150 ℂ/span> |
压力等级 |
300Lb |
7.5 |
5.5 |
0.6 |
≣/span>150 ℂ/span> |
压力等级 |
600Lb |
15.0 |
11.0 |
0.6 |
≣/span>150 ℂ/span> |
六、Z40WAPI低温法兰闸阀主要零件材质9/strong>
零件名称 |
CF8系列 |
CF3系列 |
CF8系列 |
CF3系列 |
WCB系列 |
阀 / 阀盕/span> |
CF8 |
CF3 |
CF 8M |
CF 3M |
WCB |
闸板 |
CF8 |
CF3 |
CF 8M |
CF 3M |
WCB |
阀杅/span> |
F304 |
F 304L |
F316 |
F 316L |
1Cr13 Graphite |
填料 |
PTFF编织 |
PTFE编织 |
PTFE编织 |
PTFE编织 |
石墨 Graphite+304 |
垫片 |
PTFE+304 |
PTFE+ 304L |
PTFE+ 316L |
PTFE+ 316L |
石墨 +304 |
压盖 |
CF8 |
CF3 |
CF 3M |
CF 3M |
WCB |
填料压环 |
304 |
304L |
316L |
316L |
1Cr13 |
螺栓 |
193-BB |
A193-B8 |
193-B 8M |
A193-B 8M |
35CrMoA |
螺母 |
A194 -8M |
A194 -8M |
A194 -8M |
A194 -8M |
45 |
七、Z40WAPI低温法兰闸阀150LB主要连接尺寸重量9/span>
尺寸 |
In |
1/2 |
3/4 |
1′/span> |
1-1/4 |
1-1/2 |
2′/span> |
2-1/2 |
3′/span> |
4′/span> |
5′/span> |
6′/span> |
8′/span> |
10′/span> |
12′/span> |
14′/span> |
16′/span> |
18′/span> |
20′/span> |
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
|
L |
In |
5.51 |
5.98 |
6.49 |
7.00 |
7.48 |
8.50 |
9.48 |
11.14 |
12.00 |
15.00 |
15.86 |
16.49 |
17.99 |
19.76 |
30.00 |
32.94 |
35.98 |
39.01 |
Mm |
140 |
152 |
165 |
178 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
762 |
838 |
914 |
991 |
|
H |
In |
6.10 |
6.29 |
7.32 |
8.50 |
9.84 |
12.99 |
14.48 |
15.51 |
18.62 |
25.98 |
27.99 |
32.00 |
39.48 |
44.76 |
58.62 |
62.24 |
79.40 |
87.71 |
Mm |
155 |
160 |
186 |
216 |
250 |
330 |
368 |
394 |
473 |
660 |
711 |
813 |
1003 |
1137 |
1489 |
1581 |
2017 |
2228 |
|
DO |
In |
3.93 |
3.93 |
4.92 |
6.29 |
6.29 |
9.48 |
9.48 |
11.81 |
11.81 |
13.77 |
13.77 |
15.74 |
19.68 |
23.62 |
23.62 |
25.59 |
32.99 |
35.00 |
Mm |
100 |
100 |
125 |
160 |
160 |
250 |
250 |
300 |
300 |
350 |
350 |
400 |
500 |
600 |
600 |
650 |
838 |
889 |
七、Z40WAPI低温法兰闸阀600LB主要连接尺寸重量9/strong>
尺寸 |
In |
1/2′/span> |
3/4 |
1′/span> |
1-1/4 |
1-1/2 |
2′/span> |
2-1/2 |
3′/span> |
4′/span> |
5′/span> |
6′/span> |
8′/span> |
10′/span> |
12′/span> |
14′/span> |
16′/span> |
18′/span> |
20′/span> |
DN |
15 |
20 |
25 |
|
