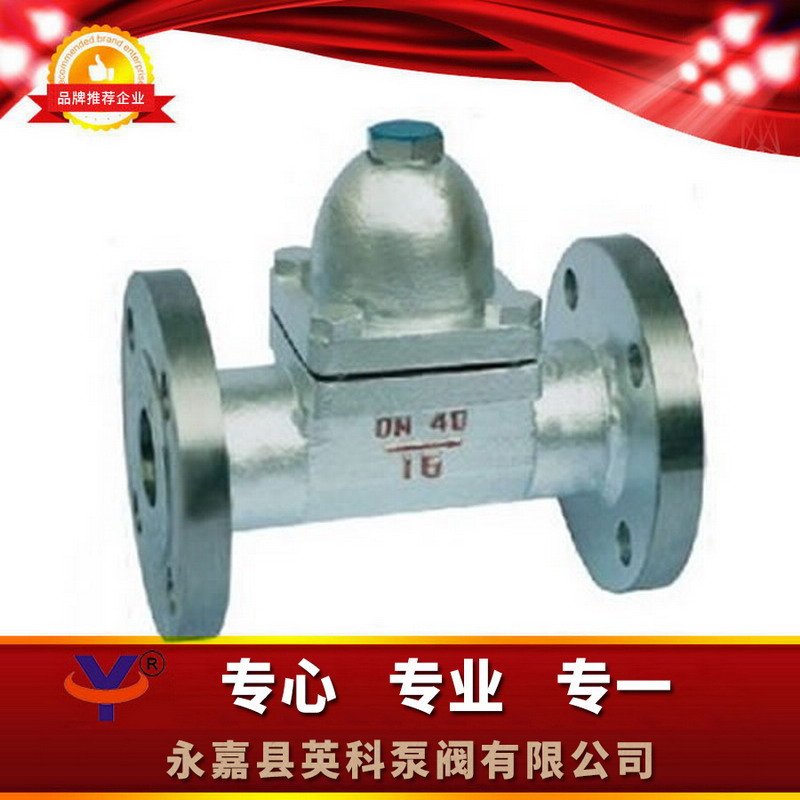

一、CS47H可调双金属片式蒸汽疏水阀主要特点９/strong>
结构独特、性能优良、排水量大、漏汽温度可调节，过冷度?ℂ/span>左右，可能排除大量冷空气和其它不凝汽体，不会产生汽堵现象。可更换内件，易于维修和调整、/span>
二、CS47H可调双金属片式蒸汽疏水阀主要性能规范９/strong>
| 型号Type/项目Item | CS17H-16C | CS17H-25 | CS17H-40 | 单位 |
| CS47H-16C | CS47H-25 | CS47H-40 | Unit | |
| CS67H-16C | CS67H-25 | CS67H-40 | ||
| 公称压力 | 1.6 | 2.5 | 4 | Mpa |
| Nominal Pressure | ||||
| 壳体试验压力 | 2.4 | 3.8 | 6 | |
| Shell Test Pressure | ||||
| **工作压力 | 1.6 | 2.5 | 4 | |
| Max | ||||
| **工作温度Max | 203 | 220 | 247 | ℂ/td> |
| Works Temperature | ||||
| **允许温度Max | 425 | 425 | 425 | |
| Vouchsafement Temperature | ||||
| 工作介质 | 蒸汽、凝结水Stemam | |||
| Working Medium | ||||
三、CS47H可调双金属片式蒸汽疏水阀主要零件材料Materal For Main Parts
型号Type/项目Item |
17 CS47H- 671625C40 |
阀体Body |
碳钢Carbon Steel |
阀盖Donner |
|
阀?/span> |
不锈钢Atainless Steel |
阀座Seat |
不锈钢Atainless Steel |
热敏元件 |
热双金属牆/span> |
过滤器Percolator |
不锈钢Atainless Steel |
四、CS47H可调双金属片式蒸汽疏水阀主要外形及连接尺寷/strong>
Main External And Connecting Dinensions９/strong>
型号 |
DN |
螺纹连接 |
承接焊连?/span> |
法兰连接 |
||||||||||||||
RC |
L |
H |
W |
L |
H |
W |
d‘/span> |
T |
L |
H |
D |
K |
d |
C |
F |
N-φ |
||
(mm) |
(mm) |
(mm) |
||||||||||||||||
CS17H-16C |
15 |
1/2 |
100 |
92 |
82 |
100 |
92 |
82 |
22 |
12 |
150 |
92 |
95 |
65 |
45 |
14 |
2 |
4-14 |
20 |
3/4 |
100 |
92 |
82 |
100 |
92 |
82 |
27 |
12 |
150 |
92 |
105 |
75 |
55 |
14 |
2 |
4-14 |
|
25 |
1 |
100 |
92 |
82 |
100 |
92 |
82 |
34 |
12 |
160 |
92 |
115 |
85 |
65 |
14 |
2 |
4-14 |
|
32 |
11/4 |
165 |
140 |
115 |
165 |
140 |
115 |
42 |
13 |
200 |
140 |
135 |
100 |
78 |
16 |
2 |
4-18 |
|
40 |
11/2 |
165 |
140 |
115 |
165 |
140 |
115 |
48 |
13 |
200 |
140 |
145 |
110 |
85 |
16 |
3 |
4-18 |
|
50 |
2 |
175 |
140 |
115 |
175 |
140 |
115 |
61 |
14 |
230 |
140 |
160 |
125 |
100 |
16 |
3 |
4-18 |
|
CS17H-25 |
15 |
1/2 |
100 |
92 |
82 |
100 |
92 |
82 |
22 |
12 |
150
|
|||||||
