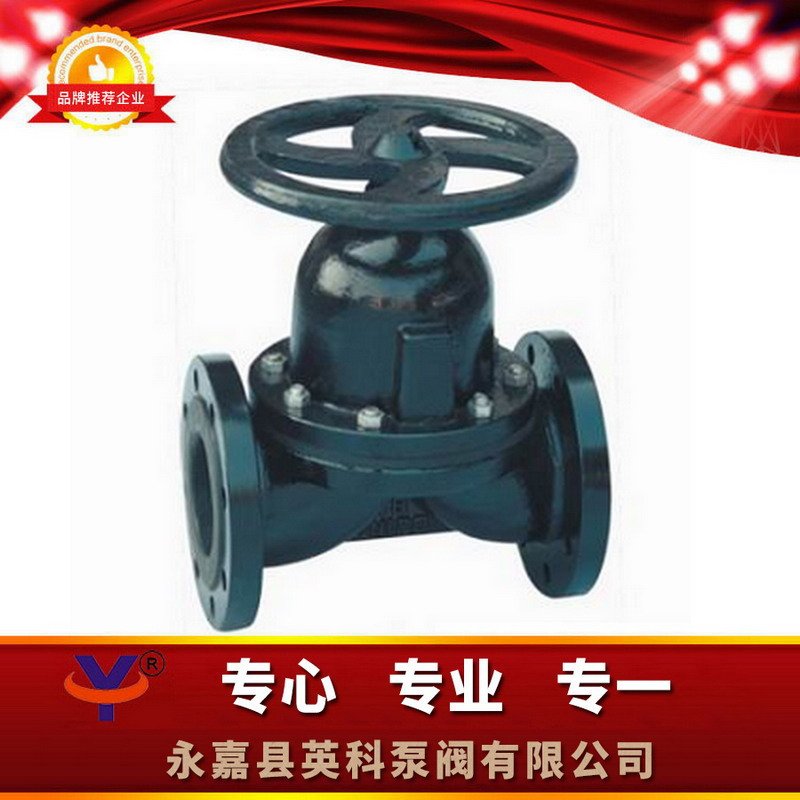

一、EG41J英标衬胶隔膜阀用途：
适用范围 应用于国防、科研、航天、电子、机械、冶金、石油，化工，能源、环保、生物医药、制冷、食品等各种领域
二、EG41J英标衬胶隔膜阀性能规范９/strong>
型号 |
公称压力 |
试验压力PS＇/span>Mpa（/span> |
适用介质 |
工作温度＇/span>ℂ/span>（/span> |
|
壳体试验 |
密封试验 |
||||
EG41J-6 |
0－/span>6 |
0－/span>9 |
0－/span>66 |
W．非腐蚀性流佒/span> |
?00 |
EG41J-10 |
1－/span>0 |
1－/span>5 |
1－/span>1 |
||
EG41J-16 |
1－/span>6 |
2－/span>4 |
1－/span>76 |
||
G41J-6 |
0－/span>6 |
0－/span>9 |
0－/span>66 |
||
G41J-10 |
1－/span>0 |
1－/span>5 |
1－/span>1 |
||
三、EG41J英标衬胶隔膜阀连接尺寸９/strong>
型号 |
公称通径 |
尺寸 |
质量（㎏（/span> |
|||||||
J垊/span> |
W垊/span> |
f |
D1 |
D |
D0 |
n-d |
H |
|||
EG41J-16 EG41W-16 EG41FS-16 |
20 |
121 |
117 |
2 |
75 |
105 |
70 |
4-14 |
92 |
3 |
25 |
131 |
127 |
2 |
85 |
115 |
83 |
4-14 |
96 |
4 |
|
32 |
150 |
146 |
2 |
100 |
140 |
114 |
4-18 |
131 |
6－/span>5 |
|
40 |
163 |
159 |
2 |
110 |
150 |
114 |
4-18 |
142 |
7－/span>5 |
|
50 |
194 |
190 |
2 |
125 |
165 |
150 |
4-18 |
167 |
10－/span>5 |
|
65 |
220 |
216 |
2 |
145 |
185 |
165 |
4-18 |
203 |
17－/span>5 |
|
80 |
258 |
254 |
2 |
160 |
200 |
230 |
8-18 |
216 |
25 |
|
100 |
309 |
305 |
2 |
180 |
220 |
280 |
8-18 |
270 |
36 |
|
125 |
362 |
356 |
3 |
210 |
250 |
280 |
8-18 |
319 |
47 |
|
150 |
412 |
406 |
3 |
240 |
285 |
368 |
8-22 |
365 |
73 |
|
200 |
529 |
521 |
4 |
295 |
340 |
483 |
8-22 |
462 |
142 |
|
250 |
641 |
635 |
4 |
350 |
395 |
12-22 |
||||
300 |
757 |
749 |
4 |
400 |
445 |
12-22 |
||||
EG41J-10 EG41W-10 EG41FS-10 |
20 |
121 |
117 |
2 |
75 |
105 |
70 |
4-14 |
92 |
3 |
25 |
131 |
127 |
2 |
85 |
115 |
83 |
4-14 |
96 |
4 |
|
32 |
150 |
146 |
2 |
100 |
140 |
114 |
4-18 |
131 |
6－/span>5 |
|
40 |
163 |
159 |
2 |
110 |
150 |
114 |
4-18 |
142 |
7－/span>5 |
|
50 |
194 |
190 |
2 |
125 |
165 |
150 |
4-18 |
167 |
10－/span>5 |
|
65 |
220 |
216 |
2 |
145 |
185 |
165 |
4-18 |
203 |
17－span style="font-family: ˎ̥;font-size: 12px">5 |
|
80 |
258 |
254 |
2 |
160 |
200 |
230 |
8-18 |
216 |
25 |
|
100 |
309 |
305 |
2 |
180 |
220 |
280 |
8-18 |
270 |
36 |
|
125 |
362 |
356 |
3 |
210 |
250 |
280 |
8-18 |
319 |
47 |
|
150 |
412 |
406 |
3 |
240 |
285 |
368 |
8-22 |
365 |
73 |
|
200 |
529 |
521 |
4 |
295 |
340 |
483 |
8-22 |
462 |
142 |
|
EG41J-6 EG41W-6 EG41FS-6 |
125 |
362 |
356 |
3 |
210 |
250 |
280 |
8-18 |
319 |
47 |
150 |
412 |
406 |
3 |
240 |
285 |
368 |
8-22 |
365 |
73 |
|
200 |
529 |
521 |
4 |
295 |
340 |
483 |
8-22 |
462 |
142 |
|
250 |
641 |
635 |
4 |
350 |
395 |
12-22 |
