产品简今�span style="padding-left: 10px; color: rgb(153, 153, 153); font-style: italic; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 16px; line-height: normal; font-family: georgia;">Product description

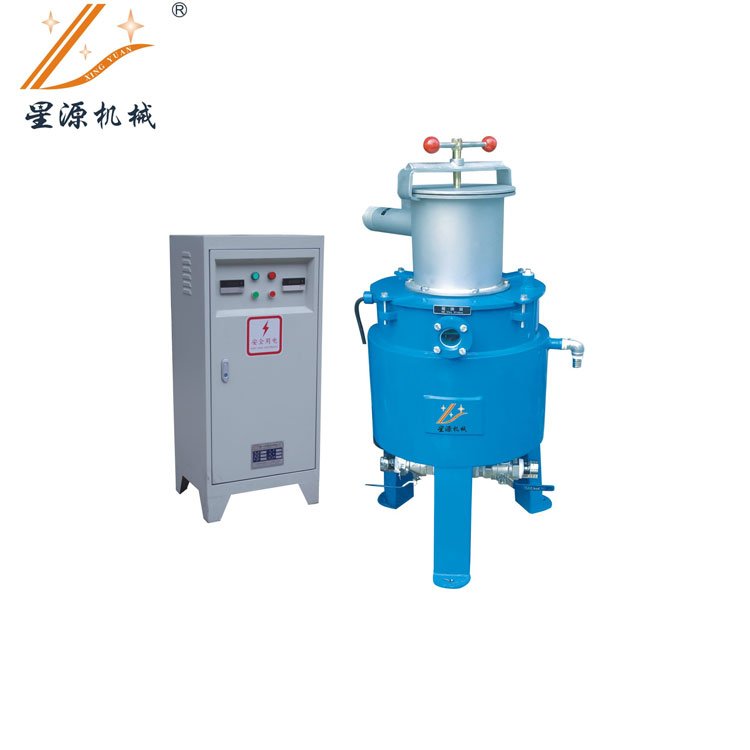

XYDC-B5-20K

半自动浆料电磁选机

Wet electromagnet separator semi-automatic type

适用范围（Application（�span style="font-family: " times="" new="">:

本产品广泛适用于去除陶瓷、矿工、化工、电子、食物等行业浆釉料中的铁粉、微铁粉、磁性物质等、�/span>

This machine is widely used in ceramic ,mining,chemicals,electronic,food industry for remove magnetism substance and ferrous materials in liquid slurry form.

产品特点(Features):

l能耗低、磁场梯度高、磁场分布均匀、除铁效果明显、�/span>

l采用H级高温电磁线，绝缘等级高、�/span>

l脱铁方便快捷、砌底、无残余铁粉、�/span>

l磁介网采用高效不锈钢导磁片，磁场可达20000GS、�/span>

l断掉励磁线圈电源后无残留磁性，便于脱铁、�/span>

lLow in energy consumption ,high in magnetic field gradient,even in magnetic field distribution and obvious effort in eliminating iron.

lThe H level hightemperatureelectromagnetic wire isadopted, highinsulationgrade.

lEliminating iron in a fast, convenient and more complete way with no iron powder remaining.

lThe magnetic medium is made of high efficiency stainless steel magnetic conductive sheet and the maximum working magnetic field up to 20000GS.

lThe highest magnetic field may reach 20000GS .When the power is off, magnetic coils have no residual magnetism favor ofeliminatingiron.

产品参数（parameters（�/span>:

型号 Model	额定电压 Rated voltage	额定功率 Rated power	背景磁场 Background Magnetic Field	绝缘等级 Insulation rank	冷却方式 Cooling ways	处理能力 Processing capacity
XYDC-B5K	380V	1.5KW	1000GS	F�?/span>	油冷 （Oil cooling（�/span>	2T/h-3T/H
XYDC-B10K	380V	4.0KW	2000GS	F�?/span>		4T/h-6T/H
XYDC-B15K	380V	7.5KW	3000GS	F�?/span>		10T/h-15T/H
XYDC-B20K	380V	11KW	4000GS	F�?/span>		15T/h-20T/H
