高岭土除铁设夆/div>

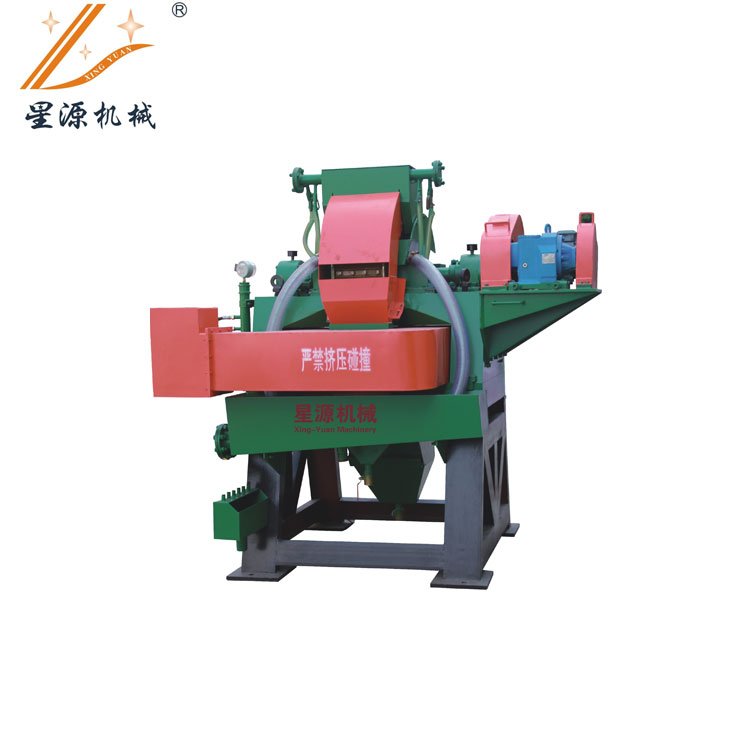

高岭土除铁设备的图片
参考报价:
面议
品牌9/dt>
高明星源
关注度:
1197
样本9/dt>
暂无
型号9/dt>
高岭土除铁设
产地9/dt>
广东
信息完整度:
典型用户9/dt>
暂无
磁场磁系9/div>
其他
磁场种类9/div>
其他
磁场强度9/div>
其他
产品简今/div>

产品简今span style="padding-left: 10px; color: rgb(153, 153, 153); font-style: italic; font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 16px; line-height: normal; font-family: georgia;">Product description


产品概述(Products Overview(span style="font-family: "Times New Roman";">:

立环脉动高梯度磁选机是目前国内外性能辂/span>好、技术先进的强磁设备,该机采用转环立式旋转、反冲精矿,并配有脉动机构,从根本上解决了平环强磁选机和平环高梯度磁选机磁介质容易堵塞这一世界性技术难题,它具有富集比大、对矿粒度、浓度和品位波动适应性强、工作可靠、操作维护方便等优点,该机分选弱性矿石实现了精矿品位高和回收率高的双高优点、/span>

Vertical ring pulsating high gradient magnetic separator is the best and most advanced strong magnetic separation equipment in domestic and oversea at present. It adopts vertical rotating ring, recoil concentrate, and is equipped with pulsating mechanism. Fundamentally solves the worldwide technical problem that the magnetic medium of the Horizontal ring magnetic separator is easily blocked. It has the advantages of large enrichment ratio, strong adaptability to the fluctuation of ore size, concentration and grade, reliable operation and easy maintenance, etc. The machine has the advantages of high concentrate grade and high recovery rate by separating weak magnetic ores.

适用范围(Application):

◎/span>赤铁矿、褐铁矿、岭铁矿、钛铁矿、烙铁矿、黑钨矿、钽铌矿等弱磁性矿物的选矿、/span>

◎/span>石英、长石、霞石、萤石、硅线石、锂辉石、高岭土等非金属矿物的除铁提纯?nbsp;

◎/span>For processing fine.Feebly magnetic minerals, such as hematite, limonite, siderite,ilmenite, wolframite, tantalum-niobium, and etc.

◎/span>For purifyingandiron removalofnonmetallic minerals such as quartz, feldspar, nepheline, fluorite, sillimanite, spodumene and kaolin.

产品参数(Parameters(/span>:

4.注:不同物料的矿浆和干矿处理量都有所差异,以下指标仅为参考,须按实际物料再确定!

Note: There are difference in processing capacity between ore pulp and dry ore, the following indicators are for reference only, to be confirmed in accordance with the actual materials.

型号Model

参数

Specifications

XHLH

-500

XHLH

-750(Ⅰ)实验室

XHLH

-750(Ⅱ(/span>

工业垊/span>

XHLH

-1000

转环直径

Ring diameter'/span>mm(/span>

500

750

750

1000

转环转逞/span>

Rotating speed of Ring(r/min)

0.3-3

0.3-3

3

2-4

给矿粒度

Ore-feeding size (mm) (-200mesh%)

-1.0

-1.0

-1.0

-1.2

(30-100)

给矿浓度

Ore-feeding concentration(%)

10-40

10-40

10-40

10-40

矿浆通过能力

Slurry put through (m3/h)

0.25-0.5

0.5-1.0

5-10

12.5-20

干矿处理野/span>

Capacity (t/h)

0.03-0.12

0.06-0.25

2-4

4-7

额定背景场强

Background Field (T)

1.1

1.1

1.1

1.1

额定激磁电?/span>

Energizing current (A)

1200

1100

850

650

额定激磁电厊/span>

Energizing Voltage (V)

8.3

12

13

26.5

额定激磁功玆/span>

Energizing Power (KW)

10

13

11

17

转环电动机功玆/span>

Ring Power (KW)

0.18

0.55

0.75

1.1

脉动电动机功玆/span>

Pulsating Power (KW)

0.37

0.75

1.5

2.2

脉动冲程

Pulsating stroke (mm)

0-50

0-50

0-20

0-30

脉动冲次

Pulsating frequency (r/min)

0-400

0-400

0-300

0-300

供水压力

Water pressure (MPa)

0.1-0.2

0.1-0.2

0.1-0.2

0.2-0.3

耗水野/span>

Water consumption (m3/h)

0.75-1.5

1.5-2.5

5-8

8-14

冷却水水野/span>

Consumption of cooling water (m3/h)

1.5-2

1.5-2

1.5-2

1.5-2

主机重量

Machine Weight (t)

1.5

3

4

6

部件重量

Weight of the heaviest part (t)

0.3

0.6

1.0

2.22

外形尺寸

Dimension(L×W×H)(mm)

1800*1400*1320

2000*1360*1680

2250*1700*1680

2700*2000*2400
