USS-9200超声波焊接系绞/strong>
产品介绍

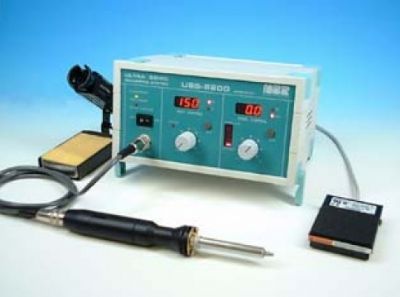

USS-9200 系统包含９/span>
-微处理控制单元及控制旋钮和显
示器
-陶瓷加热手持工具，振动单元，
3mm 长焊接头和电线（1.5 m（/span>
-工具枵/span>
-脚踏开关带?m 电线
规格
频率 60kHz3kHz-自动跟踪共振频率
输出电压（超声波 4-12W?*（/span>
温度控制 零交叉切换，测量电阻与陶瓷加?/span>
元件整合
温度范围 150?480ℂ/span>
加热 陶瓷80W
电源 100V-230V AC 48-65Hz
大小（基本单元） 240130200 mm
重量 3 kg
手持工具/铁杆和Robot 头：
超声波振动元件（音极）整合在手柄内部。这一构造使手柄部分略似
臃肿。但是，由于采用了人体工程学设计，是该仪器便于使用、/span>
标准手持工具12W 920-101
总长 240 mm
大小 27 mm/ 20 mm
重量（不包含线） 150 g
线长 1.5 m
手持工具Light 12 W 9200-103
长度 230 mm
大小 24 mm / 16.5 mm
重量（不包含线） 110 g
线长 1.5 m
标准手持工具带有压缩空气接头 气压控制阀
用于快速冷 为手持工具提供压缩空气接叢/span>
焊接夳/span>
有四种不同的焊接头可供选择。直径分别为1.0 mm 2.0 mm 3.0 mm*
4.0 mm *如不特别注明，此为标准焊接头、/span>
焊接 1.0 mm
焊接 2.0 mm
焊接 3.0 mm
焊接 4.0 mm
焊接头可定制
产品应用９/span>
-焊接金属薄片的引纾/span>
-焊接两根由铝、镁、钨制成的引纾/span>
-在铝底板上焊接电路元仵/span>
-在印刷电路板上修复焊接接夳/span>
-太阳能电池的焊接（如：硅片上铝带的焊接）
USS-9200 Ultrasonic Soldering System
Product information
The USS-9200 system includes:
- Microprocessor controlled base unit with control knobs and
displays
- Hand tool with ceramic heater＋/span>
vibration unit 3 mm soldering tip
and cable (1.5 m)
- Tool stand
- Foot switch with cable ( 2 m)
Specifications:
Frequency 60kHz 3kHz-automatically follow to
resonance frequency
Output Power (ultrasonic) 4-12W max.
Temperature control Zero-crossing switching measure resistance
integrated in the ceramic heating element
Temperature range 150?480ℂ/span>
Heater Ceramic 80W
Power 100V-230V AC 48-65Hz
Dimensions (base unit) 240130200 mm
Weight 3 kg
Hand Tools / Irons and Robot Head:
Inside the handgrip the ultrasonic vibration element (sonotrode) is
integrated. This circumstance makes the handgrip portion look quite big
and heavy. However due to the ergonomic design the instrument is easy
to handle even for personnel with small hands.
Standard Hand Tool 12 W 920-101
Length total 240 mm
Diameter 27 mm/ 20 mm
Weight without cable 150 g
Cable length 1.5 m
Hand Tool Light 12 W 9200-103
Length total 230 mm
Diameter 24 mm / 16.5 mm
Weight without cable 110 g
Length of cable 1.5 m
Soldering Tips:
There are four different soldering tips interchangeable. 1.0 mm 2.0 mm＋/span>
3.0 mm* and 4.0 mm in diameter. *If no other specification is mentioned＋/span>
this is the standard tip delivered with the system.
Soldering tip 1.0 mm
Soldering tip 2.0 mm
Soldering tip 3.0 mm
Soldering tip 4.0 mm
Soldering tip special / customised
Application:
-Soldering wire leads to thin metal sheets (as in the semi-conductor field)
-Joining two wire leads made of aluminum magnesium or tungsten
-Soldering electronic circuit components to an aluminum chassis
-Repairing soldered connections on printed circuit boards
-Tight sealing of solar cells between two glasses
-Contacting of Photovoltaic-Cells (e.g. Aluminun on Silicon)
