该系统属激光诱导电流测量系统，通过激光光斑照射在太阳能电池和移动的工作台，可以实现太阳能电池的光电转换器件的光电流测量等、/span>
产品应用９/span>
评价钙钛矿、硅基太阳能电池电流均匀?/span>
规格参数９/span>
1?span>项目：激光诱导电流测量系绞/span>
2?span>测量项目：光电流扫描
3?span>测量范围９/span>50x50mm＇/span>Max X-Y stage travel range 30mm（/span>
4?span>照射光斑尺寸?#934;100m
5?span>激光：532nm绿激先/span>
6?span>激光输出：10MW
7?span>激光束的稳定性：?#177;2%
8?span>测量电流范围９/span>10｝/span>1A（Keithley Model 2401（/span>

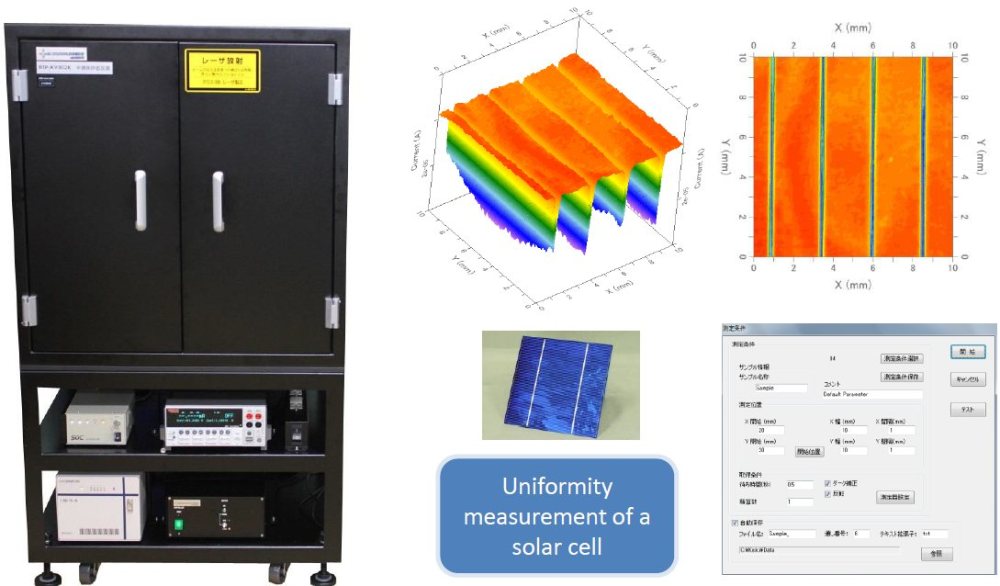

The Model LBC-1 Laser Induced Current Measurement System can perform mapping measurement of the photocurrent of the photoelectric converting element for the solar cells and etc. by irradiating the laser beam on the solar cell and moving it with the X-Y stage.
As standard 532nm of the green laser is provided with the system. The oscillator output is as high as 10mW which enables to make the current measurement with good S/N ratio.
Adjustment of the measurement position can be done easily through the sample observation monitor function.
●An ideal system to evaluate the uniformity of the perovskite solar cells
●Easy adjustment of measurement position through the sample observation monitor
●Option available to switch the Irradiation direction from the top to that from the bottom
