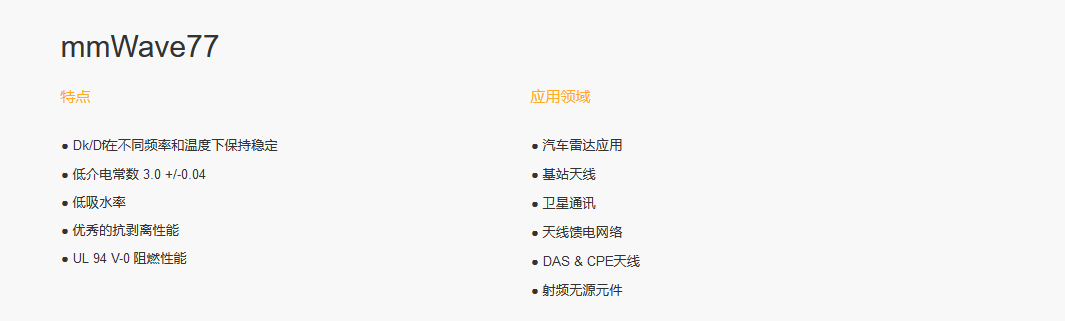

mmWave77
产品性能９/p>
| Items | Method | Condition | Unit | Typical Value |
|---|---|---|---|---|
| Dielectric Constant, Process Dk |
IPC-TM-650 2.5.5.5 | 10GHz/23ℂ/td> | - | 3.00±0.04 |
| Loss Tangent | IPC-TM-650 2.5.5.5 | 10GHz/23ℂ/td> | - | 0.0010 |
| CTE (X/Y/Z-axis) | IPC-TM-650 2.4.41 | TMA (-55-288? | ppm/ℂ/td> | 16/16/22 |
| Td | ASTM D3850 |
TGA |
ℂ/td> | 538 |
| Volume Resistivity | IPC-TM-650 2.5.17.1 | A | MΩ·cm | 1.04X108 |
| Surface Resistivity | IPC-TM-650 2.5.17.1 | A | MΩ | 4.38X108 |
| Peel Strength | IPC-TM-650 2.4.8 | 288?10s | N/mm [lb/in] | 1.64 [9.37] |
| Electrical Strength |
IPC-TM-650 2.5.6.2 |
0.127mm [0.005”] |
kV/mm |
60 |
| Water Absorption | ipc-tm-650 2.6.2.1 | D-24/23 | % | 0.01 |
| Thermal Conductivity | ASTM C518 | 100ℂ/td> | W/(m·K) | 0.50 |
| Density | ASTM D792 | - | g/cm3 | 2.15 |
| Flammability |
UL-94 |
C-48/23/50 |
Rating |
V-0 |
Remarks:
Remarks:
All the typicalvalues listed above are for your reference only and not intended forspecification. Please contact Shengyi Technology Co., Ltd. for detailedinformation. All rights from this data sheet are reserved by Shengyi TechnologyCo., Ltd.
