特点９/strong>
波长范围?75 nm -1550 nm，功率高? W
低噪音、单纵模
优异的光束指向稳定性和功率稳定?/p>
超紧凑结构设计，易于OEM封装
高达200 MHz高速调刵/p>
自由空间光输出、光纤耦合输出

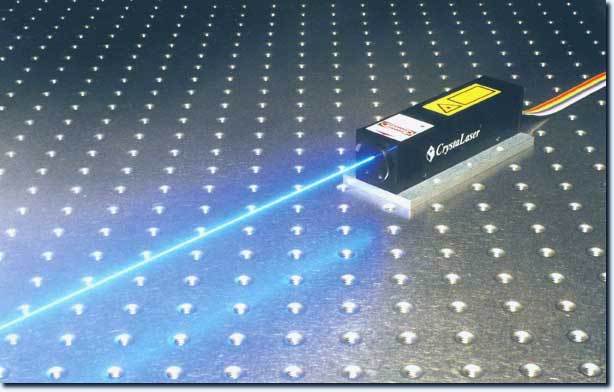

Violet Blue Laser
| Wavelength (+/-5 nm) TEMoo laser Max. output SLM laser Max. output CW output model Transverse mode Beam diameter (1/e2) Beam divergence Longitudinal mode SLM available Spectrum linewidth Output stability Beam point stability Polarization Noise (rms) Operating temperature Size of laser head Size of power supply Warm-up time Operation voltage Power consumption |
375 405 390-425 445 473 488 nm 60 300 100 80 80 150 mW 25 50 40 30 30 50 mW 0.5W-2W* 300 200 150 100 80 50 25 10 mW TEMoo M2<1.3 1 mm 0.6 mrad Multiple longitudinal mode Single longitudinal mode with > 50 m coherence length 1 nm nominal; SLM version: < 0.0001 nm <1 % over 24 hours +/-0.005 mrad/C Vertical ratio 100 : 1 <0.5 % 10Hz-20MHz 10 to 40 degree C 3 x 3 x 12 cm with a fixed 6 mm thick base plate AC: 5x14x15 cm (2x5x6 inch) DC: 3.5x8.5x12.7 cm 30 seconds 11-18 VDC or 90-250 VAC Typical 6 Watts |
TTL modulation analog modulation single mode or mutimode fiber coupling options are available for all lasers.
* Laser beam of 500 mW to 1W 405 and 445 nm laser is 1.5x2.5 mm M2<3; 1W to 2W 405 nm and 445 nm lasers are available in fiber coupled output
Compact Red Laser
SpecificationsThe single longitudinal mode red lasers provide >5 meters (option >50-100 meters) coherence length
| Wavelength(+/-4 nm) Maximum output SLM laser output Transverse mode Beam diameter (1/e2) Beam divergence Output stability rms Noise (rms) Beam point stability Polarization Longitudinal mode SLM version Spectrum linewidth Operating temperature Operating voltage Warm-up time Power consumption Size of laser head Size of power supply |
633-647 660 690 785 808-852 980-1550nm 150mW 200mW 50mW 300mW 500mW 300mW-2W 70mW 50mW 50mW 150mW 200mW 1000mW TEMoo M2<1.3 1.2 mm 1 mrad <1 % over 24 hours <0.5 % 10 Hz - 20 MHz +/-0.005 mrad/K Linear; Polarization ratio >100:1 Several longitudinal modes Single longitudinal mode with>5m (option >100m) coherence length SLM laser: <0.001 nm or <0.01 cm-1; other laser: 1 nm norminal 10 to 35 degree C 90-250 VAC or 12 VDC 30 seconds 5 W 3 x 3.6 x 12 cm type 4 or type 1 AC: 5x14x15 cm (2x5x6 inch) DC: built in laser head |
Intermediate power available from 1 mW to the maximum output power with lower cost
Beam divergence 0.4 mrad and beam size 2.5 mm is available on request
New DC version laser has a built-in power supply inside the laser head which keeps the same dimensions of 3 x 3 x 12 cm
