特点９�/strong>

调谐速度快（20 ms（�/p>

输出功率高（20 mw（�/p>

ITU grid锁定

Ethernet接口可远程控�

GPIB、USB及RS-232接口灵活选择

应用９�/strong>

WDM器件的测试及质量评估

光纤传感

PMD和PDL测量

光学相干层析成像（OCT（�/p>

研发测试测量领域

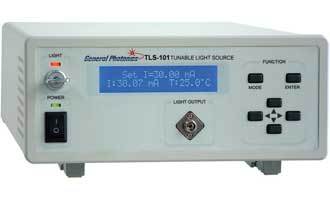

TLS-101是为日常测试、测量应用而设计的一款可调谐激光器，波长覆盖C或L波段，波长调谐精�?0 GHz，调谐时间小�?0 ms。波长内部锁定功能可以确保输出光的波长或频率在ITU grid上。光源有三种操作模式可供选择９�/p>

1、单波长输出：用户可选择89个波长或频率中的一个做为输出；

2、单程波长或频率扫描：用户可以设定范围、步长和速度：�/p>

3、循环波长或频率扫描、�/p>

光源有Ethernet、USB、GPIB及RS-232多个通信接口，可实现仪器的远程控制，是WDM器件测试、光纤传感、PMD和PDL测量以及光学相干层析成像（OCT）应用中的一款理想光源、�/p>

Specifications:

Wavelength/Frequency	C band	L band
Tuning Range	1528.77 to 1563.86nm 191.7 to 196.1THz	1568.77 to 1607.47 nm 186.5 to 191.1 THz
Number of ITU Channels	89	93
Tuning Resolution(Minimum Tuning Step)	50 GHz	93
Optical Power	13 dBm	10 dBm
Power Ripple	0.3 dB typical0.5 dB max.} over tuning range
Side Mode Suppression Ratio (SMSR)	> 40 dB
Output Linewidth (Lorentz)	< 5 MHz (1MHz typical)
Average Relative Intensity Noise (RIN) (10 MHz -1GHz) (1-10GHz)	< -110 dB/Hz < -145 dB/Hz
OSNR (0.1nm Bandwidth)	> 50 dB
Polarization Extinction Ratio	> 20 dB
Return Loss	> 40 dB
Locked Frequency Accuracy	-1.8 to 1.8 GHz
Shuttered Output Power	< -30 dBm
Tuning Speed	20 ms for adjacent channels
Operating Mode	Single wavelength output; Single trip & round trip wavelength scanning
Operating Temperature	5 to 50 ��C
Storage Temperature	0 to 70 ��C
Output Optical Interface	PM� FC/APC connector
Communication Interface	USB� Ethernet� RS-232� and GPIB
Electrical Power Supply	100 � 240 VAC� 50 � 60 Hz
Dimensions	2U 19� half rack width 14� (L) x 8.5� (W) x 3.5� (H
