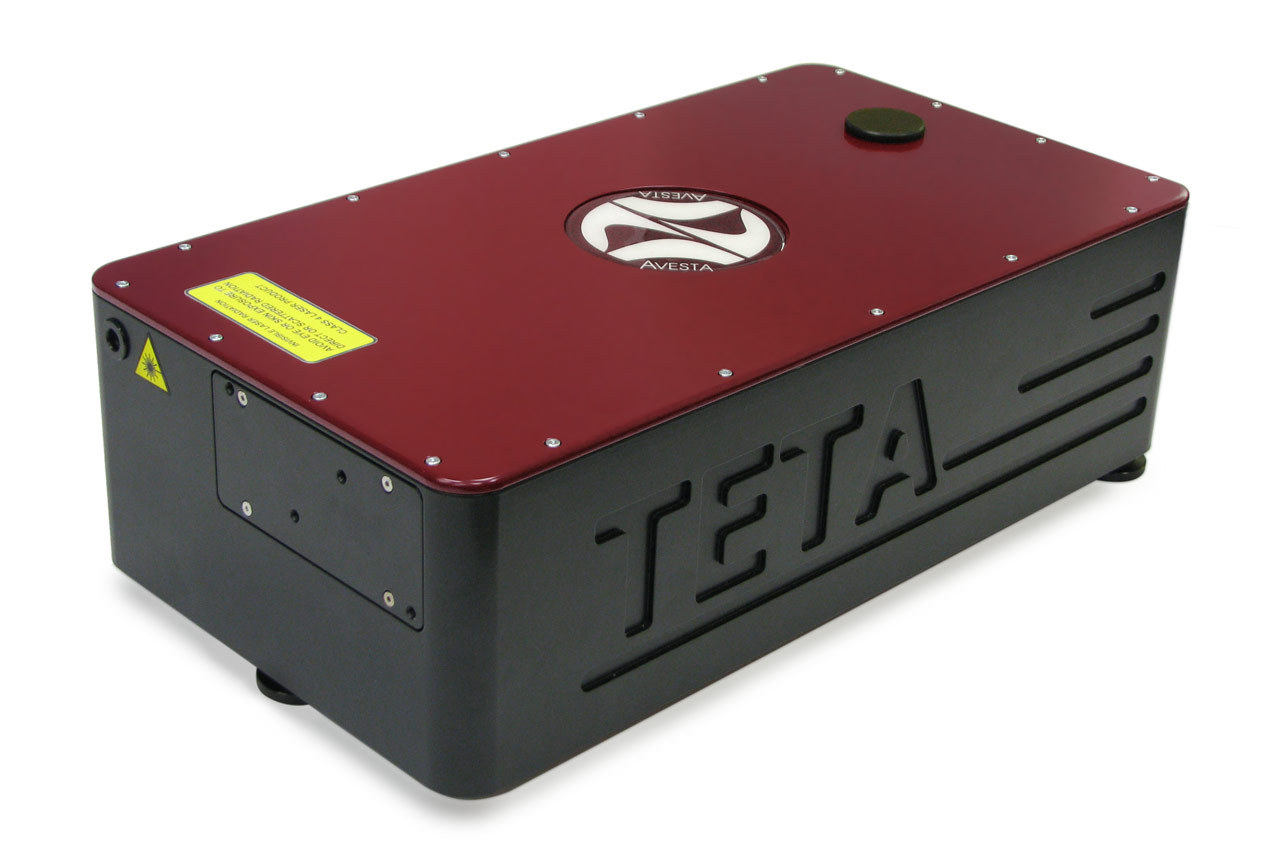

TETA-6

TETA-10

TETA-20

Maximum average output power

6 W

10 W

20 W

Maximum pulse energy

>400 uJ

>1 mJ

Minimum pulse duration¹⁾

<270 fs

<350 fs

Pulse duration tuning range¹⁾

<270 fs - 10 ps

<350 fs - 10 ps

Central wavelength²⁾(fixed)

1033��3 nm

1030��3 nm

M^2

<1.15

<1.25

Beam diameter (at 1/e^2)

3��0.3 mm

5��0.5 mm

Pulse repetition rate (user-adjustable)

single-shot�?00 kHz (up to 1 MHz upon request)

Pre- and post-pulse contrast

>5000:1

Long-term output stability³⁾

<0.5% rms over 48 h

Output polarization

linear� vertical

Spatial mode

TEM00

Beam ellipticity⁴⁾

<10%

Beam astigmatism⁴⁾

<10%

Beam divergence (full angle)

<0.6 mrad

Beam pointing stability

<25 urad/��C

Cold start warm-up time (beam position� output power)

<40 min

Environmental and utility specifications

Operating temperature

15-30 ��C

Relative humidity

<60%� non-condensing

Voltage

single-phase; 100-240 VAC; 50/60 Hz

Power consumption

<1.5 kW

<2 kW

Physical dimensions

Laser head (LxWxH)

460x250x147 mm

500x330x147 mm

Control and power supply 19" rack (WxLxH)

553x600x663 mm

Umbilical length

3 m

1) - measured with Avesta's AA-10DD-12PS interferometric autocorrelator using Gaussian fitting; motorized tunable pulse duration with PC control up to 10 ps is also installed by default; the Compulse-1030 external hollow-fiber pulse compressor with output pulse duration down to 30 fs is also available as an option;

2) - external second� third and fourth harmonic generators are available upon request; certain built-in combinations are also available; Raman shifters to 1530 nm and 1890 nm are also available;

3) - measured under stable environmental conditions;

4) - measured at maximum average power and 100 kHz repetition rate.
