AA-DD扫描自相关仪
特点９/strong>
10-30000 fs脉宽范围
扫描率：0.1-20 Hz
线性畸变：<1 %
USB接口和软仵/p>
全反射光学元仵/p>
位置测量
条纹分辨自相关函?/p>
无摩擦运?/p>
可选光纤输?/p>

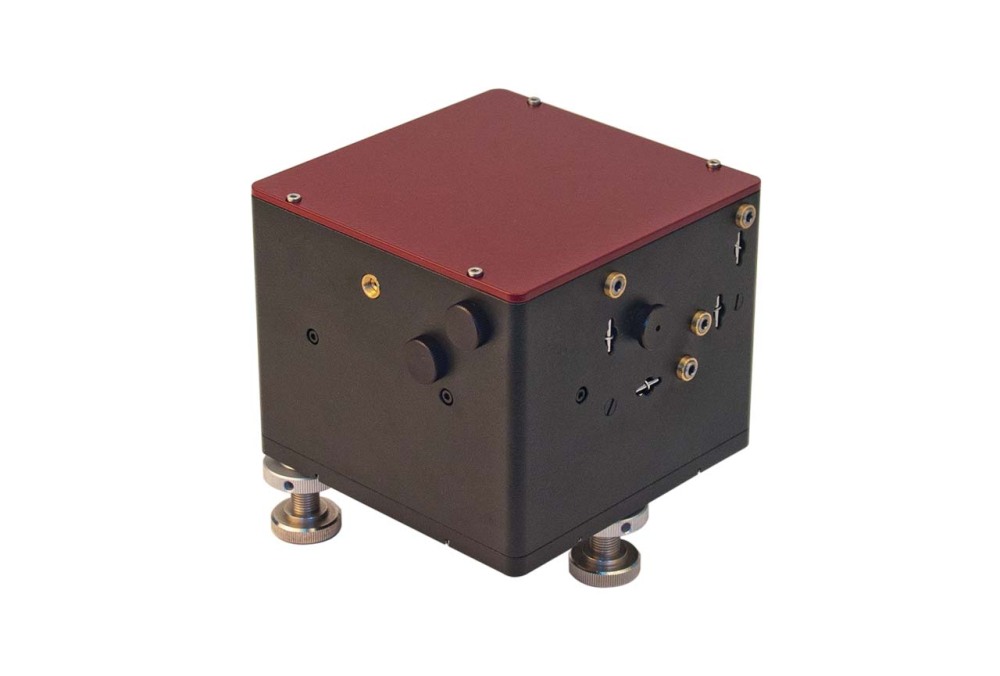

AA-20DD实时自相关仪用于平滑快速测量飞秒和皮秒脉宽。自相关仪不同型号对应不同波长，AA-20DDM使用3个可互换光电探测器和光学元件可以覆盖这几个波长范围。根据需要可以覆盖两个独立的范围。输入脉宽范围从10 fs?0 ps，易于监视不同的激光器系统，尤其是飞秒和皮秒振荡器（监视放大器，见ASF-20单次自相关仪）、/p>
仪器使用USB接口，可以连接Windows操作系统的计算机。提供Labview驱动及多种软件工具。采集的脉宽数据可视化，可存储或导出txt或dat文件。可以计算并实时显示自相关函数和*终FWHM飞秒脉宽。而且，可以高斯或双曲线拟合，也可查看强度函数。统计分析功能可以对几个单独的脉冲测量结果进行对比、/p>
AA-20DD?32123118 mm）体积小，可以用在任何对空间要求严格的实验装置中、/p>
可选择光纤输入，不同光纤进行快速可靠脉宽测量。而且，这种情况下自相关仪依然可以进行自由空间测量、/p>
AA-20DD |
AA-10DD-12PS |
AA-10DD-30PS |
|
Possible full wavelength range* |
450-3200 nm |
||
Subranges*(exchangeable photodetector/beam splitter pairs) |
V: 450-700 nm R1: 700-1300 nm R2: 1300-2000 nm R3: 1950-3200 nm |
||
Input pulse duration range |
20 fs - 6 ps |
10 fs - 12 ps |
10 fs - 30 ps |
Input pulse repetition rate |
>10 kHz |
>10 Hz |
>10 Hz |
Sensitivity(typical) |
100 mW2 |
||
Input polarization |
linear horizontal (vertical upon request) |
||
Scan rate |
0.1-20 Hz |
||
Linear distortion |
<1% |
||
Collinear autocorrelation |
yes (interferometric and intentsity) |
||
PC connection |
USB |
||
Required equipment |
Windows PC or oscilloscope |
||
Fiber input (optional) |
FC/PC or FC/APC (other types on request) |
||
Signal source and detector type |
two-photon conductivity in semiconductors |
||
Dimensions＋/strong> mm |
132x129x117 - optical unit 225x190x45 - control unit |
185x180x145 - optical unit 225x190x45 - control unit |
185x180x145 - optical unit 225x190x45 - control unit |
* - the indicated subranges are covered by exchangeable photodetector/beam splitter pairs. I.e. the customer may choose from one subrange of their choice (to cover a desired corresponding wavelength region indicated in the table above) to four sets for complete full wavelength range coverage. Please indicate the required subranges for precise quotation and information when making a request for the product. |
|||
