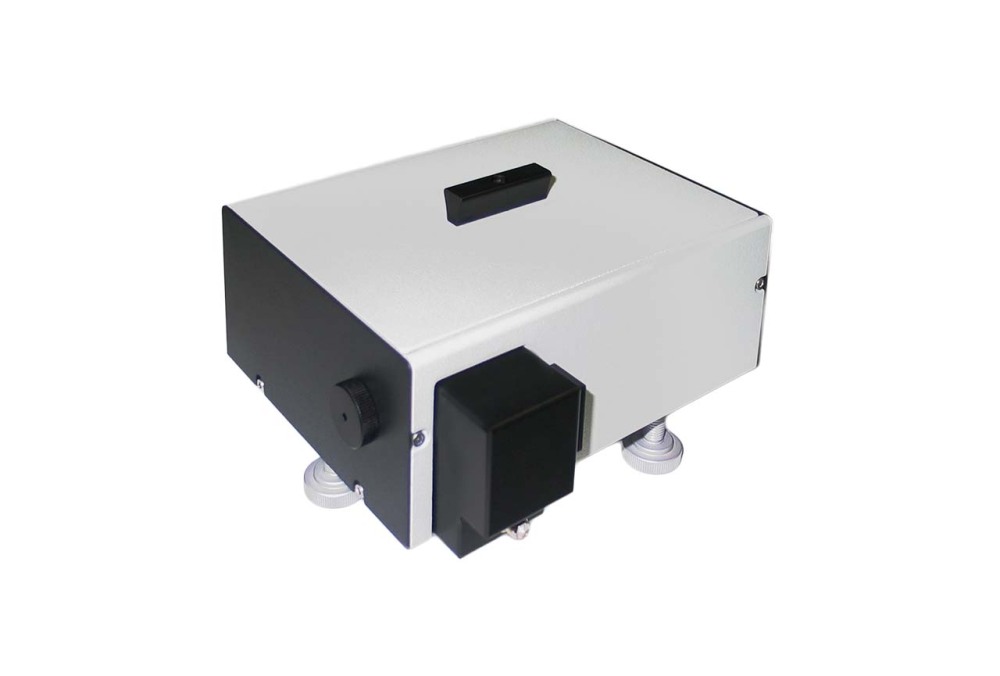

ASF单次自相关仪
特点９/strong>
CCD探测?/p>
灵敏?1 J
包含LabView驱动
应用９/strong>
飞秒脉宽的单次测野/p>
复杂实验系统的自动控刵/p>
ASF单次自相关仪用于监视超快振荡器和放大器的脉冲宽度，以及用于实时放大系统的调谐。CCD相机记录入射辐射不共线二次谐波的横向部分（非线性晶体中产生二次谐波）。计算机USB接口和Windows采集软件提供平滑简捷的数据采集和记录，LabView 驱动为复杂的多级实验装置提供灵活扩展和在线控制、/p>
两个基本型号为多个波长范围提供测量范?5?00 fs（ASF-15M）和200?000 fs （ASF-200）。请咨询定制脉冲宽度和波长范围、/p>
ASF-5 |
ASF-15 |
ASF-50 |
ASF-200 |
|
Possible wavelength range |
400-2000* nm |
450-2000* nm |
||
Input pulse duration range |
5-150 fs |
15-200 fs |
50 fs - 2 ps |
200 fs - 10** ps |
Required pulse energy |
single-shot mode: from 1 uJ at <200 fs; up to 100 uJ at 10 ps; multiple-shot mode: from 1.2 nJ at <100 fs 80-100 MHz (~100 mW average power) |
|||
Input pulse repetition rate |
single-shot...150 MHz;single-shot mode (registration of single pulses): from single-shot to 50 kHz; multiple-shot mode (averaging of 2 or more pulses): >50 kHz |
|||
Input polarization |
linear horizontal (vertical upon request) |
|||
Data interface |
USB with Windows PC acquisition and analysis software (included in the standard package) |
|||
Dimensions (LxWxH) |
please enquire |
156x120x70 mm |
215x120x70 mm |
430x240x80 mm |
* - exact wavelength range is quoted based on each customer's requirements; ** - from 500 fs to 15 ps on request; combined ranges from 100 fs may also be possible upon request for some cases. |
||||
