APC Kit FS

APC Kit DF

APC Pro FS

APC Pro DF

Prism material

fused silica

dense flint

fused silica

dense flint

Wavelength

700-900* nm

GVD range of dispersion compensator at 800 nm

user-defined� tuning range width 13000 fs²

user-defined� tuning range width 30000 fs²

from +6900 fs²to -1630 fs²**

from +16500 fs²to -13800 fs²

Transmission

>90% @800 �ߧ�

Polarization

linear� horizontal***

Beam diameter

up to 4 mm

Dimensions

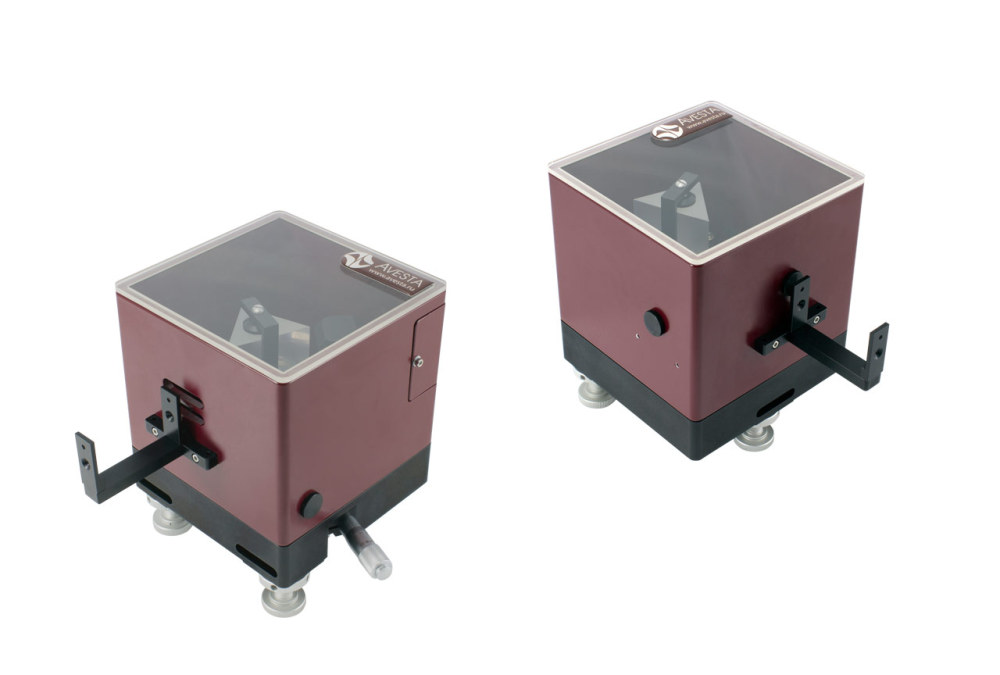

two units� 165*180*129 mm each

410*324*186 mm

* - other wavelength ranges are available upon request;

** - tuning range can be shifted to (+5700 fs²to -2830 fs²) upon request;

*** - vertical polarization upon request.
