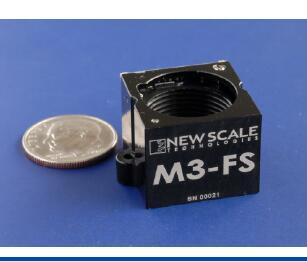

NewScale M3-FS聚焦模块
NewScale M3-FS聚焦模块的图?/></a></div></div></div>         <div class=
参考报价:
面议
品牌9/dt>
关注度:
386
样本9/dt>
暂无
型号9/dt>
产地9/dt>
美国
信息完整度:
典型用户9/dt>
暂无
索取资料及报件/a>
认证信息
高级会员 2平/div> 称: 森泉光电有限公司
证:工商信息已核宝br /> 访问量:210798
手机网站
扫一扫,手机访问更轻杽/div>
产品分类
产品简今/div>

M3-FS

M3-FS聚焦模块可以内置集成到手持与便携设备?小型光学系统中,提供高精度的镜头运动及优异的动态稳定性。模块本身是完整的闭环运动解决方案,包括内置控制器,除了镜头安装基座意外无需额外空间。镜头移动所需的功耗极低,而且镜头可零功耗地保持在任意位置,因此可理想应用于电池供电设备、/span>

迷你“一体化”解决方桇/span>

优异的光束质野/span>

低电压、低功耖/span>

易于系统集成

高度灵活性,可量?/span>

成本低,可迅速推向市圹/span>

Model

Original M3-F

New M3-FS

Lens type(lens not included)

M12x0.5mmAccepts smaller lenses (to M8x0.35) with adapter by special order

M16x1mmAccepts M12x0.5mm with standard adapter. Other sizes by special order

Lens weight*

< 5 grams

< 5 grams (all orientations)

Travel range

up to 1.5 mm

up to 1.5 mm

Housing dimensions

20 x 22 x 16 mmincluding controller

20 x 23 x 16 mmincluding controller

Max image sensor area(image sensor not included)

17 x 17 mm(see drawing)

17 x 17 mm(see drawing

Max. speed

5 mm/s

5 mm/s

Resolution

0.5 m

0.5 m

Repeatability

Uni-directional: +/- 8 mBi-directional: +/- 20 m

Uni-directional: +/- 2.5 mBi-directional: +/- 5 m

Linear accuracy

+/- 30 m

+/- 12 m

Static tilt

< +/- 1 degree

< +/- 0.7 degree

Dynamic tilt

< +/- 0.15 degree

< +/- 0.05 degree

Static concentricity

< +/- 0.25 mm

< +/- 0.25 mm

Dynamic concentricity

< +/- 0.02 mm

< +/- 0.002 mm typical

Digital interface

I2C or SPI

I2C or SPI

Input voltage

3.1 to 3.6 VDC

3.1 to 3.6 VDC

Input power**

< 1 Watt (5mm/s with 5g mass)< 0.13 Watts quiescent

< 1 Watt (5mm/s with 5g mass)< 0.13 Watts quiescent

Temperature and humidity***

5C to 70C (lower possible)<70% relative humidity non-condensing

5C to 70C (lower possible)<70% relative humidity non-condensing

Mean time before failure

>2 million cycles (fixed orientation) or 500?00 cycles (random orientation)

>1 million random-sized steps over the travel range (any orientation)

Weight of module(without lens)

5.8 grams

8 grams

Compliance

CE RoHS

CE RoHS

Control interface

Via USB adapter from PCordirectly via I2C or SPI

Via USB adapter from PCordirectly via I2C or SPI

Controller

embedded

embedded

* Fixed orientation may allow for heavier lenses. Please consult the factory.** Power depends on input voltage speed and load.*** Ask us about lower temperature requirements
