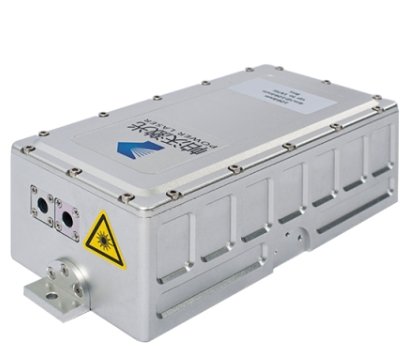

PD系列半导体泵浦脉冲激光器具有脉冲宽度窄、脉冲频率灵活可调、结构紧凑、安装灵活等特点，适合对空间尺寸限制并要求和其他设备外联合的应用。区别于传统闪光灯泵浦的能量脉冲激光器,特别适用于全天候工作的工作状?采用了TEC控温的传导冷却技术，在保证激光器稳定工作的同?避免了冷却水的使用，真正做到了免维护、/p>
PD series high frequency pulse laser is featured with high pulse frequency, flexible adjustable frequency, compact structure,flexible installation, different from traditional flash lamp pumped pulse laser, using LD pumped and TEC control temperatureconduction cooling technology, improving the stability and long- -term working reliability of laser, realizing the free maintenance,especially suitable for all day working status.
| 应用领域 | Applications |
激光雷辽/p> 信号模拟 激光遥愞/p> 光电探测 激光测跜/p> |
Laser radar Signal simulation Laser remote sensing Photoelectric detection Laser ranging |
光学参数 Specifications |
|||
型号 Model |
PD-1064-0.2-k |
PD-1064-3-k |
PD-1064-4-k |
重复频率 Pulse repetitionrate |
single- 10kHz |
single- 500Hz |
single- 1kHz |
单脉冲能野/span> Single pulse energy |
200uJ |
2.5mJ |
4mJ |
脉冲宽度 Pulse width |
< 15ns |
< 10ns |
< 10ns |
光斑尺寸 Beam diameter |
1mm |
1.2mm |
1.5mm |
能量稳定?/span> Energy stability |
<1% |
||
发散觑/span> Divergence |
<2.0mrad |
||
指向稳定?/span> Pointing stability |
<20μrad |
||
光斑模式 Laser mode |
TEM00 |
||
冷却方式 Cooling |
风冷 |
||
PD-1064-0.2-K 激光机械尺寸图
PD-1064-0.2-K Laser Dimension Figure
