� 窄脉宽特� ◆Unique end-pumped technology, small volume, long lifetime � 高峰值功� ◆Perfect beam quality and High beam pointing stability � 可选波� ◆High precision temperature control system to ensure the pulse stability � 结构紧凑 ◆Innovative thermal lens compensation cavity design

PWH系列低重频脉冲皮秒激光器，可选择1064nm�?32nm�?55nm三波段输出，可单个或多波长切换使用；通过皮秒激光种子源、选单器件得到比较低的重复频率的皮秒激光，再经通过预放大装置及能量放大装置产生高能量的皮秒激光。经过长时间验正是客户的理想选择、�/p>

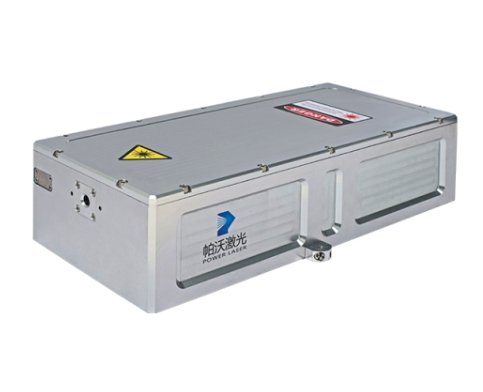

PWH series low repetition frequency pulse pico-second laser has three-band output which is 1064nm, 532nm, 355nm, and singleor multiple wavelength could be switch used; reaching low repetition frequency pico-second laser by seed source and pulsepicker device, then producing high energy pico- second laser through laser pre- amplifier and laser energy amplifier. To meet 24/7industry environment atter long time testing, it's the ideal choice of micro processing.

应用领域	Applications
� 强场光学 � 材料加工 � 太赫兹光�?/p> � 分子动力学反库�/p> � 高精度激光测跜�/p>	� Microelectronics resistance regulation � Solar film-scribed � Metal and non-mental marking � Micro hole dilling � Light source of scientific research

光学参数 Specifications
型号 Model	PWH- 1064-2
波长 Wavelength	1064nm/532nm/355nm
重复频率 Repetition Rate	1Hz~ 1000Hz
脉冲能量1 Energy **能量�?HZ频率上�/span>	1064nm: 100mJ max
	532nm: 50mJ max
	355nm: 30mJ max
脉冲宽度 Pulse width	10~ 30ps
偏振方向 Polarization	垂直@IR Vertical@IR
能量稳定�?/span> Energy stability	<2%@RMS
指向稳定�?/span> Pointing stability	<20 μrad
工作温度 Operation temperature	15�?35ℂ�span style="margin: 0px; padding: 0px; outline: none !important; box-sizing: border-box; animation-fill-mode: both;"> (不结霱�span style="margin: 0px; padding: 0px; outline: none !important; box-sizing: border-box; animation-fill-mode: both;">) 15ℂ�span style="margin: 0px; padding: 0px; outline: none !important; box-sizing: border-box; animation-fill-mode: both;">-35�?nbsp;(No condensation)
制冷方式 Cooling	Water

说明Notes:

1.此为该系列产品的**能量，具体脉冲能量和脉冲频率参数请咨询销售代表、�br style="margin: 0px; padding: 0px; outline: none !important; box-sizing: border-box; animation-fill-mode: both;"/>

This is the highest energy of this series of products.
Please consult the sales representative for specific pulse energy and pulse frequency parameters.

PWH-1064-2激光机械尺寸图
PWH-1064-2 Laser Dimension Figure
