窄脉宽特?/span>
◆Narrow pulse width 高重复频 ◆High repetition frequency 高光束质 ◆High beam quality 可外 ◆External control available

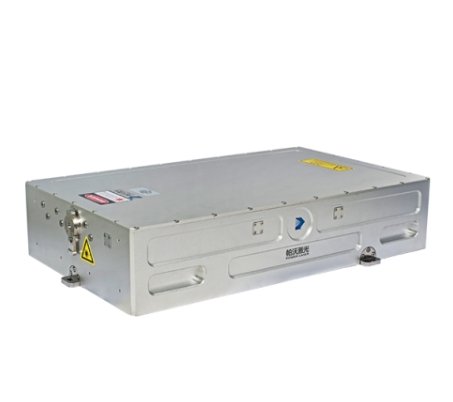

PWK系列激光器是工业级高功率皮秒激光器；通过皮秒激光种子源、脉冲选单模块得到较低重复频率的皮秒激光，再经通过预放大装置及功率放大装置产生高平均功率的皮秒激光。该系列经过24/7的工业制造环境长时间验证，是微细加工的理想选择、/p>
PWK series laser is industrial high power pico-second laser; getting low repetition frequency pico-second laser by pico-secondlaser seed source and pulse picker module, then producing high average power pico-second laser by laser pre-amplifier andhigh power laser amplifier. To meet 24/7 industry environment after long time test, it is the ideal choice of micro processing.
| 应用领域 | Applications |
玻璃、陶瓷、蓝宝石切制 微細打孔 金属非金属加?/p> 微孔钻孔 科研应用 |
Glass,ceramic,sapphire cutting Fine drilling Metal/Non-metal processing Micro hole drilling Research application |
| 光学参数 Specifications |
||||
| 型号Model | PWK-1064-10 |
PWK-1064-30 |
PWK-1064-50 |
|
波长 Wavelength |
1064nm ( 532nm/355nm option ) |
|||
重复频率1 Pulse Repetition Rate |
100kHz~ 600kHz |
|||
平均功率 Average power |
1064 |
>10W@500kHz |
>30W @500kHz |
>50W @500kHz |
>7W@100kHz |
>25W @200kHz |
>40W @200kHz |
||
532 |
>4W |
>12W |
>25W |
|
355 |
>3W |
>9W |
>15W |
|
单脉冲能野/span> Pulse Energy |
1064 |
>70uJ@100kHz |
>250uJ@100kHz |
>200uJ@200kHz |
532 |
>40uJ@100kHz |
>60uJ@200kHz |
>125uJ@200kHz |
|
355 |
>20uJ@100kHz |
>45uJ@200kHz |
>75uJ@200kHz |
|
光斑直径 Beam Diameter |
?.5mm |
｝/span>2.0mm |
｝/span>2.0mm |
|
发散觑/span> Beam Divergence, Full Angle |
<2mrad |
|||
脉冲宽度 Pulse Duration |
< 13ps@1064nm, < 10ps@532nm,< 8.5ps@355nm |
|||
光束质量 Beam Quality |
TEM00(M2<1.5) |
|||
光斑圆度 Beam Ellipticity |
>85% |
|||
偏振方向 Polarization |
1064nm: Vertical;532nm: Vertical; 355nm: Horizontal |
|||
偏振?/span> Polarization Ratio |
> 100:1 |
|||
功率稳定?/span> Average Power Stability |
<1%RMS |
|||
指向稳定?/span> Pointing Stability |
<20μrad |
|||
工作条件 Operating Conditions |
15?35ℂspan style="margin: 0px; padding: 0px; outline: none !important; box-sizing: border-box; animation-fill-mode: both;">（不结露（/span> |
|||
制冷方式 Cooling Type |
水冷 |
|||
预热时间 Warm-up Time |
<40mins | |||
说明Notes?.*低频?0kHz?*频率1000kHz，可定制。Pulse Repetition Rate can down t0 50 kHz or up to 1000 kHz when order.
PWK-355-15 激光机械尺寸图
PWK-355-15 Laser Dimension Figure
