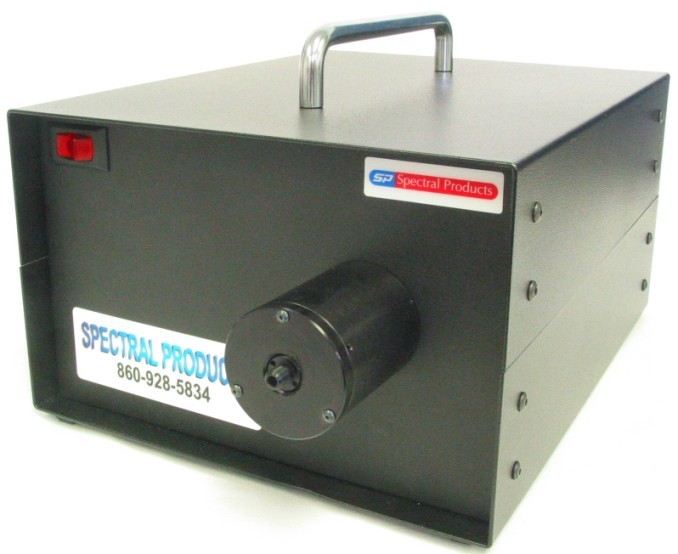

Spectral products专业制造深紫外氘灯光源ASBN-D130/230，波长范围从180-400nm，在紫外光提供率**的光功率，可提供自由空间输出和光纤耦合书橱两种输出模式、/p>
ASBN-D130内置一?0W氘灯，和电源适配设备。使用了一组适当的聚?校准双重棱镜使得光源能有**的光功率输出、/p>
一般用途，氘灯的光功率会低于卤素灯，但卤素灯在紫外光输出功率很低。在一些特殊的用途需要高功率的紫外光时，就需要氘灯光源、/p>
| Feature | Value |
|---|---|
| Lamp: | Type: Deuterium with fused silica jacket mounted and pre-aligned. Power input: 30 Watt (nominal) per each lamp Lamp current: 300 30 mA DC Average Life: 1000 hours (nominal) |
| Lamp Housing: | 1" quartz doublet (f#/1 1X) collection lens. Convection cooled. Dimension: 6" X 5" X 10" |
| Power Supply: | Power input:115 vac 50/60 Hz 3 amps. 230 vac 50/60 Hz 1 amp optional Power output: Constant current dc 60-120vdc selectable 300 mA DC Regulation: + 10 mA Stability: 100 ppm/C Operating Temperature: 5-35C |
| Warranty: | One year |
| Options: | Spare lamp (mounted and pre-aligned)＋/span> Specify SM FC ST CL or CS for specific fiber couplers. |
