ASBN-W系列高功率卤钨灯
美国SP公司是光电技术仪器及产品的带领者，作为CVI的子公司，其光谱产品的研发有着丰富的经验及创新理念。产品范围覆盕分光光度计、单色仪、光谱仪、摄谱仪、光谱分析仪、探测系统、光源、/span>

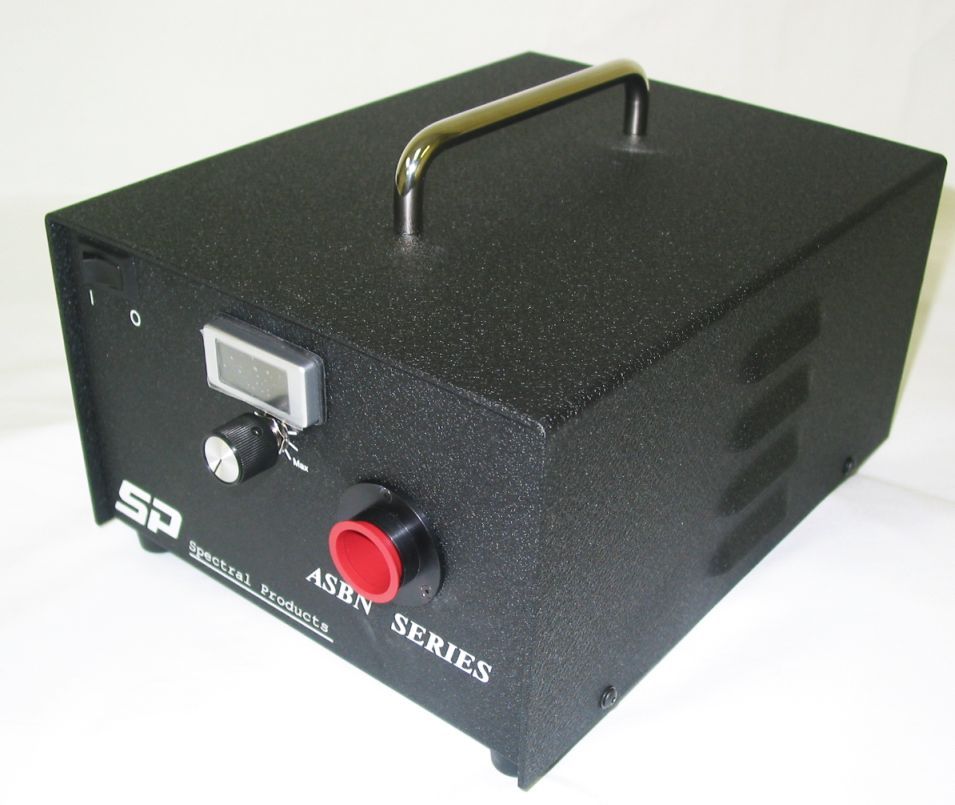

FIG1.ASBN高功率卤钨灯FIG2.光谱
型号９/strong>
ASB-W-030: 30W 卤钨?/p>
ASBN-W-050: 50W卤钨?/p>
ASBN-W-075: 75W卤钨?/p>
ASBN-W-100-L: 100W低色温卤钨灯
ASBN-W-100-H: 100W高色温卤钨灯
ASBN-W-150-L: 150W低色温卤钨灯
特点９/strong>
各种可变单色光输出，选择从近紫外?00nm）到近红外（2.6m（/p>
计算机控制（与单色仪配合（/p>
双向扫描，扫描单位包括nm，A、cm-1、ev
可以配置成光纤输出，也可准直输出
标准设计允许改装
与SP的产品耦合
| Feature | Value | ||||
|---|---|---|---|---|---|
| Lamp: | Power input | Light output | Color Temp. | Life Time | Filament size |
| 50W | 900 lumens | 3?00K | 2?00 hours | 4.2mm X 2.5mm | |
| 75W | 1?00 lumens | 3?00K | 2?00 hours | 5.0mm X 1.6mm | |
| 100W-H | 3?00 lumens | 3?00K | 50 hours | 5.3mm X 3.0mm | |
| 100W-L | 2?00 lumens | 3?00K | 2?00 hours | 5.2mm X 2.3mm | |
| 150W | 4?00 lumens | 3?00K | 50 hours | 6.2mm X 3.1mm | |
| Housing: | Air cooling fan with a regulated power supply 1" UV grade focusable fused silica collection lens (f#/1.2) 1" UV protected Al coated mirror (f = 12.5mm) Dimension: 8" X 10" X 5" |
||||
| Power Input: | Input Voltage: 85-264 VAC (110V/220V compatible) Input Frequency: 47-63Hz Inrush Current: 30A/100V 40A/200V Over-voltage Protection: Clamp 115-135% Current Limit: 105-150% typ Self-reset Fold back Safety: UL / TUV / CE Oper. Temp.: 0 to 50 C |
||||
| Power Output: | Type: constant current DC VDC: 12V (24V for 150W) Max. Current: 12.5A (8.4A for 150W) Ripple/Noise (20MHz BW): 100mV Pk-Pk typ. Regulation: 0.5% typ |
||||
| Warranty: | One year | ||||
| Options: | Spare lamp: ASBN-WB-050/075/100-H/100-L/150 Input power controller: ASBN-W-PV (including voltage indicator) Needed to be specify the fiber coupling or collimated output Focusing lens set for monochromator: ASBN-W-FL (1" UV fused silica lens) |
||||
