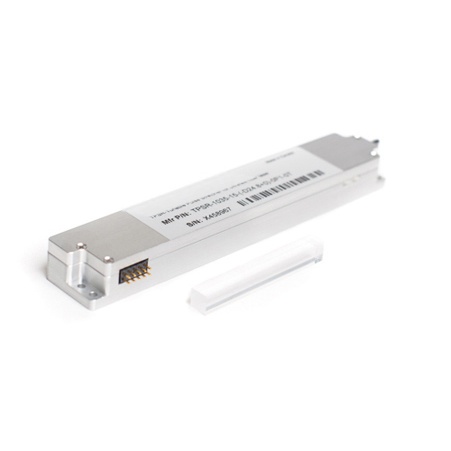

PWS-CM-V用于超快激光器的啁啾模块结合了TeraXion的可调谐脉冲展宽器和体布拉格光栅（VBG）压缩器。每PWS-CM-V都内部配对到特定的VBG压缩机，通过在压缩阶段更简单、更少的光学对准，大大提高了激光器的稳定性。其灵活的软件选项可轻松集成到任何设计中，并允许对激光系统进行全电子校准，从而缩短周期时间，提高产量并降低运营成本、/p>
可提供了下面两种标准配置CM-V９/p>
1、飞秒激光器专用45 ps/nm CM-V：CM 1030V-400[16F-10.9-(45)]-M1-0P2-0T1
2、飞秒激光器专用85 ps/nm CM-V：CM 1030V-700[9F-6-(85)]-M1-0P2-0T1
产品特性：
> 工厂设定VBG配对
>电子脉冲宽度调整高达50 ps
>坚固设计
>高阶色散调谐
>工业*小封裄/span>
TERAXION超快脉冲压缩 VBG啁啾模块PWS-CM-V
Center Wavelength |
Slow Axis |
1030 |
nm |
Minimum recompressed pulse duration1 |
< |
400 |
fs |
Beam Quality M2 |
< |
1.35 |
|
Stretching Factor |
45 |
ps/nm |
|
Total Stretching Window2 |
500 |
ps |
Reflectivity |
> |
70 |
% |
Spectral Bandwidth (FWHM) |
16 |
nm |
|
Tolerance on Spectral Bandwidth |
+/- |
1 |
nm |
Full D2Tuning Range |
1.35 |
ps/nm |
|
Full D3Tuning Range |
0.006 |
ps/nm2 |
|
Fiber Type |
PMCMS |
||
Pigtail length |
> |
1 |
m |
Connector Type |
None |
||
Module Dimensions (without cable) |
14 x 22 x 130 |
nm |
|
Supply Voltage |
5 |
V |
|
Power Consumption |
3 |
W |
|
Control Protocol |
I2C |
OptiGrate—VBG体布拉格光栅参数９/strong>
Spectral Bandwidth |
10.85 |
nm |
|
Tolerance on Spectral Bandwidth |
+/- |
1.1 |
nm |
Diffraction Efficiency |
> |
85 |
% |
Grating Thickness |
50 |
mm |
|
Tolerance on Grating Thickness |
+/- |
5 |
mm |
Grating Aperture (clear aperture > 85%) |
5 x 5 |
mm |
|
Assembly Dimensions |
55 x 6 x 10 |
mm |
|
AR Coating Type |
High Energy Broadband |
||
电源和通信模块（可选）
3端子光学循环?可?
TERAXION超快脉冲压缩 VBG啁啾模块PWS-CM-V
