描述９/strong>

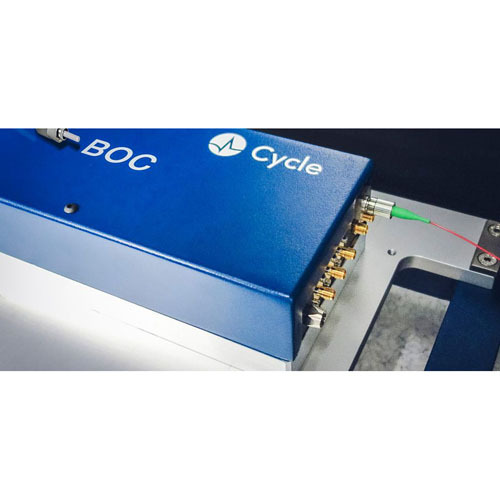

全自动FLS由光纤链路，BOC平衡光交叉相关器和所有其他必需的驱动器，光纤组件和控制元件组成，以支持全自动时间稳定光纤链路。通过飞行时间互相关将定时信号传送到远程位置时，它保留了主激光器的低噪声特性，从而形成低漂移和低抖动定时分布、/p>
应用９/strong>
光纤时间链路的飞行稳定时闳/p>
FLS光纤链路稳定?/strong>
参数 |
数倻/strong> |
单位 |
备注 |
时间抖动1 |
<5 |
fs RMS |
Within 35 Hz - 1 MHz bandwidth Specified for a 150m link with 5?C peak-to-peak environment temperature fluctuation |
时间分辨玆/span> |
< 0.5 |
fs |
Integrated detector noise floor within 10 kHz bandwidth |
光纤链路长度2 |
< 10 |
km |
Performance specifications for a 150 m link. Customized fiber lengths available. |
光纤类型 |
SMF / PM |
With FC or SC connector |
|
光纤链路输出功率 |
> 10 |
mW |
Average |
波长 |
1550 50 |
nm |
Operating at pulsed mode |
重复频率 |
< 500 |
MHz |
Tailored for the frequency of interest |
集成反馈 |
included |
Optimized PID parameters |
|
控制系统界面 |
included |
Available in Epics Tango?/span> |
|
自动锁定 |
included |
||
尺寸 |
BOC: 362mm x 109mm x 65mm + Optical Delay Line: 350mm x 120mm x 52mm |
||
重量 |
BOC: 3kg + Delay Line: 3kg |
||
FLS光纤链路稳定?/strong>测试数据
