首页 > 产品中心 > 光学仪器及设 > 保偏光纤隔离?/div>
产品简今/div>

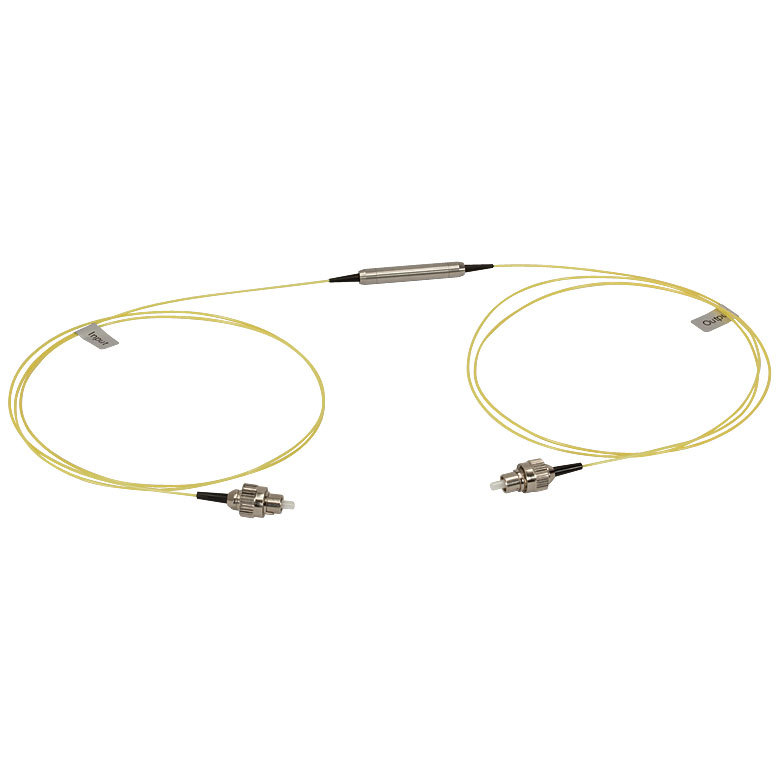

High Power Polarization MaintainingIsolator
Features
High Power Handling
Optical Path Epoxy-free Design
High Return Loss
Low Insertion
Applications
Fiber Laser
Fiber Amplifier
DWDM systems
Lab Research
Product Characteristics
Parameters |
Unit |
Values |
||
Stage |
dB |
Single Stage |
Dual Stage |
|
Central Wavelength |
nm |
1060 1310 1480 1550 |
||
Operating Wavelength Range |
nm |
20 |
||
Typ.PeakIsolation |
dB |
42 |
56 |
|
Min. Isolation in Band(at 25ℂ/span>) |
dB |
28 |
48 |
|
Typ.Insertion Loss(at 25? |
dB |
0.4 |
0.5 |
|
Max.Insertion Loss |
dB |
0.55 |
0.65 |
|
Min. Return Loss |
dB |
55 |
55 |
|
Min. Extinction Ratio (only for B Type) |
dB |
22 |
22 |
|
Max. OpticalPower(CW) |
W |
1 3 5 10 or Specify |
||
Fiber Type |
/ |
PM 980 Pandafiber |
||
Tensile Load |
N |
5 |
||
Operation Temperature |
ℂ/span> |
-5~+70 |
||
StorageTemperature Range |
ℂ/span> |
-20 ~ +85 |
||
