产品简今/div>

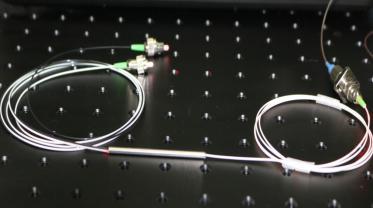

VIS-FC-W0633 633nm单模光纤耦合?/strong>（适用波长范围630-670nm（/span>
产品描述
VIS-FC-W0633VISIBLE系列单模光纤耦合?/strong>基于我司单模光纤熔融拉锥朹/span>IPCS-5000-SMT研制生产出来的一款用于可见光波段分光的耦合器，性能优良，我们可以为客户提供中心波长丹/span>405nm488 nm＋/span>532nm＋/span>633nm?50nm的窄带耦合器带宽为20nm＋/span>我们皃/span>耦合器带接头或裸纤时?*功率丹/span>500 mW＋/span>我们月/span>50:50＋/span>75:25＋/span>90:10戕/span>99:1的多种耦合比耦合器提供给客户。我们的2x2耦合器基于熔融拉锥工艺所以都是双向工作的的，任何端口都可用作输入?/span>、/span>
产品特点
熔融光纤耦合器，用于405nm 488nm 532nm 633nm
50:50?/span>75:25?/span>90:10戕/span>99:1的耦合毓/span>
双向耦合(任一端都可用作输入端)
2.0 mm窄键FC/PC戕/span>FC/APC接头
每个宽带耦合器附带各自的测试报告
应用领域
可见光通讯
功率监控
光学分路
测试仪器
技术参?/span>
VIS-FC-633参数 |
|
Spectral |
|
中心波长 |
633nm |
带宽 |
20nm |
插入损耖/span> |
；span>3.7dB |
回波损耖/span> |
＝span>55dB |
光纤类型 |
630-HP/SM600 |
操作功率 |
500mw |
连接夳/span> |
FC/APC or FC/PC |
工作温度 |
-10-+70ℂ/span> |
存储温度 |
-45-+85ℂ/span> |
PDL |
≣/span>0.15 dB |
均一?/span> |
≣/span>1.0 dB |
尺寸信息 |
|
封装尺寸 |
3.0mm () x 60.0mm (L) |
尾纤长度 |
1m |
是否充电工作 |
No |
注：1.所有的测试结果并不包含接头
2.更好的参数或者其他需求我们可以接受定刵/span>
单点数据测试1X2?0:50＇/span>633nm＋/span>5mw单模光纤耦合激光器测试为例（/span>
VIS-FC-W0633-633nm黑色port |
VIS-FC-W0633-633nm發/span>艱span>port |
订购型号９/span>
VIS-FC- W□□□□-S◊/span>-CR▼/span>-★span>-▲/span>-XX
W □□■/span>９/span>Wavelength
0405:405nm
0488:488nm
0532:532nm
0633:633nm
*****0650:650nm
S○：Port Structure
12:1x2
22:2x2
13:1x3
33:3x3
CR▽：
0199: 1:99
1090: 10:90
5050: 50:50
★/span>９/span>
Pigtail Length
05:0.5m
1９/span>1m
10:10m
△：Loose Tube
B:Bare Fiber
9:900um Loose Tube
20:2mm Loose Tube
30: 2mm Loose Tube
XX: Fiber and Connector Type
SA=SMF-28E+ FC/APCSP=SMF-28E+ FC/PC
PA=PM Fiber+ FC/APCPP=PM Fiber+ FC/PC
型号 |
单价 |
库存 |
描述 |
VIS-FC-W0633-S12-CR5050-1-9-SA |
RMB1600 |
2 |
633nm单模光纤耦合?/strong>＋/span>1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP630光纤＋/span>FC/APC接头 |
VIS-FC-W0633-S22-CR5050-1-9-SA |
RMB1800 |
0 |
633nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP630光纤＋/span>FC/APC接头 |
VIS-FC-W0633-S22-CR0199-1-9-SA |
RMB1800 |
0 |
633nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>1:99＋span>1米长尾纤＋/span>900um松套管，HP630光纤＋/span>FC/APC接头 |
VIS-FC-W0633-S12-CR5050-1-9-PA |
RMB3200 |
0 |
633nm保偏光纤耦合器，1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM630-HP＋span>FC/APC接头 |
VIS-FC-W0633-S22-CR5050-1-9-PA |
RMB3400 |
0 |
633nm保偏光纤耦合器，2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM630-HP＋span>FC/APC接头 |
VIS-FC-W0650-S12-CR5050-1-9-SA |
RMB1600 |
0 |
650nm单模光纤耦合?/strong>＋/span>1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP630光纤＋/span>FC/APC接头 |
VIS-FC-W0650-S22-CR5050-1-9-SA |
RMB1800 |
0 |
650nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP630光纤＋/span>FC/APC接头 |
VIS-FC-W0650-S22-CR0199-1-9-SA |
RMB1800 |
0 |
650nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>1:99＋/span>1米长尾纤＋/span>900um松套管，HP630光纤＋/span>FC/APC接头 |
VIS-FC-W0650-S12-CR5050-1-9-PA |
RMB3200 |
0 |
650nm保偏光纤耦合器，1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM630-HP＋/span>FC/APC接头 |
VIS-FC-W0650-S22-CR5050-1-9-PA |
RMB3400 |
0 |
650nm保偏光纤耦合器，2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM630-HP＋/span>FC/APC接头 |
VIS-FC-W0532-S12-CR5050-1-9-SA |
RMB1800 |
0 |
532nm单模光纤耦合?/strong>＋/span>1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP460光纤＋span>FC/APC接头 |
VIS-FC-W0532-S22-CR5050-1-9-SA |
RMB2200 |
0 |
532nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP460光纤＋span>FC/APC接头 |
VIS-FC-W0532-S22-CR0199-1-9-SA |
RMB2200 |
0 |
532nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>1:99＋/span>1米长尾纤＋/span>900um松套管，HP460光纤＋span>FC/APC接头 |
VIS-FC-W532-S12-CR5050-1-9-PA |
RMB3600 |
0 |
532nm保偏光纤耦合器，1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM460-HP＋/span>FC/APC接头 |
VIS-FC-W0532-S22-CR5050-1-9-PA |
RMB4100 |
0 |
532nm保偏光纤耦合器，2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM630-HP＋/span>FC/APC接头 |
VIS-FC-W0488-S12-CR5050-1-9-SA |
RMB1800 |
0 |
488nm单模光纤耦合?/strong>＋/span>1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP460光纤＋span>FC/APC接头 |
VIS-FC-W0488-S22-CR5050-1-9-SA |
RMB2200 |
0 |
488nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP460光纤＋span>FC/APC接头 |
VIS-FC-W0488-S22-CR0199-1-9-SA |
RMB2200 |
0 |
488nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>1:99＋/span>1米长尾纤＋/span>900um松套管，HP460光纤＋span>FC/APC接头 |
VIS-FC-W488-S12-CR5050-1-9-PA |
RMB3800 |
0 |
488nm保偏光纤耦合器，1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM460-HP＋/span>FC/APC接头 |
VIS-FC-W0488-S22-CR5050-1-9-PA |
RMB4300 |
0 |
488nm保偏光纤耦合器，2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM630-HP＋/span>FC/APC接头 |
VIS-FC-W0405-S12-CR5050-1-9-SA |
RMB2200 |
0 |
405nm单模光纤耦合?/strong>＋/span>1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP405光纤＋span>FC/APC接头 |
VIS-FC-W0405-S22-CR5050-1-9-SA |
RMB2600 |
0 |
405nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，HP405光纤＋span>FC/APC接头 |
VIS-FC-W0405-S22-CR0199-1-9-SA |
RMB2600 |
0 |
405nm单模光纤耦合?/strong>＋/span>2x2，分光比９/span>1:99＋/span>1米长尾纤＋/span>900um松套管，HP405光纤＋span>FC/APC接头 |
VIS-FC-W405-S12-CR5050-1-9-PA |
RMB4200 |
0 |
405nm保偏光纤耦合器，1x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM-S405-XP+＋/span>FC/APC接头 |
VIS-FC-W0405-S22-CR5050-1-9-PA |
RMB4800 |
0 |
405nm保偏光纤耦合器，2x2，分光比９/span>50:50＋/span>1米长尾纤＋/span>900um松套管，PM-S405-XP+＋/span>FC/APC接头 |
