光电参数(T_CHIP= 25 ��C� T_CASE= 25 ��C)

Characteristic

MIN

TYP

MAX

UNIT

中心波长

759

761

763

nm

线宽

-

10

-

MHz

输出功率

6

9

-

mW

驱动电压

-

2.0

2.5

V

驱动电流

-

125

mA

Mode-Hop-Free Range^b

20

-

-

mA

边模抑制毓�/span>

30

50

-

dB

30 dB BW in Mode-Hope-Free Range^c

-

-

0.3

nm

阈值电�?/span>

-

55

-

mA

斜坡效率

0.1

0.12

-

W/A

电流波长系数

-

0.002

-

nm/mA

温度波长系数

-

0.052

-

nm/��C

探测响应�?/span>

-

50

-

��A/mW

消光毓�/span>^d

16

-

-

dB

隔离�?/span>

-

30

-

dB

TEC Operation (T_CHIP= 25 ��C� T_CASE= 25 ��C)

Characteristic

MIN

TYP

MAX

UNIT

TEC电流

-

0.24

-

A

TEC电压

-

0.31

-

V

热敏电阻

-

10

-

kOhm

General Specifications

Characteristic

Value

监控PD

Yes^a

封装形式

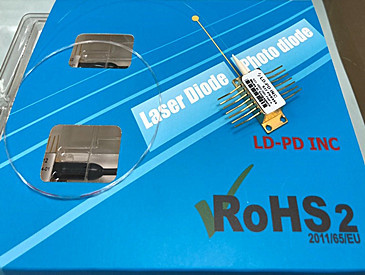

PM-Pigtailed Butterfly

Pin引脚定义

14-Pin Type 1^b

是否内置隔离�?/span>

Yes

模式

Single Frequency^c

波长测试

Yes

光纤

Characteristic

光纤类型

PM780-HP

模场直径^a

5.3 �� 1.0 ��m @ 850 nm

数值孔徃�/span>

0.12

光纤长度

1.5 m

接头类型

FC/APC (2.0 mm Narrow Key Aligned to Slow Axis)

保护奖�/span>

?3 mm

1

Thermoelectric Cooler (+)

8

N/C

2

Thermistor

9

N/C

3

PD Monitor Anode (-)

10

Laser Anode (+)

4

PD Monitor Cathode (+)

11

Laser Cathode (�?

5

Thermistor

12

N/C

6

N/C

13

Case Ground

7

N/C

14

Thermoelectric Cooler (�?
