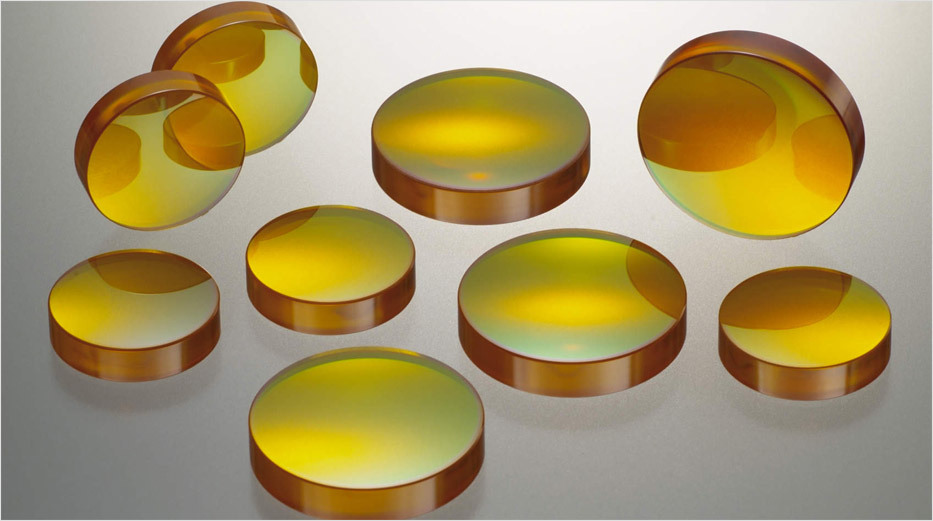

硒化锌窗片的图片
参考报价：
面议
品牌９/dt>
关注度：
233
样本９/dt>
暂无
型号９/dt>
产地９/dt>
加拿
信息完整度：
典型用户９/dt>
暂无
认证信息
高级会员 2平/div> 称： 筱晓（上海）光子技术有限公号/b>
证：工商信息已核宝br /> 访问量：175758
手机网站
扫一扫，手机访问更轻杽/div>
产品分类

太赫兹频率测量仪THz Frequency Mete

1550nm高峰值功率脉冲光纤激光器(DTS,激光雷?

NTT 1398nm高温水分子检测DFB激光器TDLASTDLAS激光气体分析综合控制器紫外波段氟化锂光学晶体窗?0.104m-7m)

1567nm 2nm可调谐DFB CO气体检测激光器
公司品牌
品牌传达企业理念
友情链接
产品简今/div>

ZNSE硒化锌窗牆/strong>＇/span>CO2激光器（/span>

产品描述

硒化锋/span>(ZnSe)?常用的材料，因为它对红外CO2激光束的透过率极高（吸收系数小），并且可以传播可见的导光、/span>使用非球面镜头、平凸镜头或弯月镜头。焦距越长，光斑直径和焦距越大。请根据工件选择镜头。当使用高压气体来辅助切削加工时，请根据气压选择镜头的厚?/span>

产品特点

高数值孔径，**收集效率

紧凑的单透镜设计

衍射限制设计

RoHS认证

应用领域９/span>

深红外光谱分枏/span>

?/span>外激光传辒/span>

CO2激光器

红外光学

外延基片

技术参?/span>

透射波段范围 :

0.6 to 21.0 um

折射率：

2.4028 at 10.6 um

反射损耗：

29.1% at 10.6 um (2 surfaces)

吸收系数９/span>

0.0005 cm-1at 10.6 um

吸收峰：

45.7 um

dn/dT :

+61 x 10-6/ at 10.6 um at 298K

dn/du = 0 :

5.5 um

密度９/span>

5.27 g/cc

熔点９/span>

1525 (see notes below)

导热系数９/span>

18 W m-1K-1at 298K

热膨胀９/span>

7.1 x 10-6/℃at 273K

硬度 :

Knoop 120 with 50g indenter

比热容量 :

339 J Kg-1K-1

Dielectric Constant :

n/a

Youngs Modulus (E) :

67.2 GPa

Shear Modulus (G) :

n/a

Bulk Modulus (K) :

40 GPa

弹性系 :

Not Available

Apparent Elastic Limit :

55.1 MPa (8000 psi)

泊松 :

0.28

Solubility :

0.001g/100g water

Molecular Weight :

144.33

Class/Structure :

HIP polycrystalline cubic ZnS F43m

折射玆/span>:(No = Ordinary Ray)

m

No

m

No

m

No

0.54

2.6754

0.58

2.6312

0.62

2.5994

0.66

2.5755

0.7

2.5568

0.74

2.5418

0.78

2.5295

0.82

2.5193

0.86

2.5107

0.90

2.5034

0.94

2.4971

0.98

2.4916

1.0

2.4892

1.4

2.4609

1.8

2.4496

2.2

2.4437

2.6

2.4401

3.0

2.4376

3.4

2.4356

3.8

2.4339

4.2

2.4324

4.6

2.4309

5.0

2.4295

5.4

2.4281

5.8

2.4266

6.2

2.4251

6.6

2.4235

7.0

2.4218

7.4

2.4201

7.8

2.4183

8.2

2.4163

8.6

2.4143

9.0

2.4122

9.4

2.4100

9.8

2.4077

10.2

2.4053

10.6

2.4028

11.0

2.4001

11.4

2.3974

11.8

2.3945

12.2

2.3915

12.6

2.3883

13.0

2.3850

13.4

2.3816

13.8

2.3781

14.2

2.3744

14.6

2.3705

15.0

2.3665

15.4

2.3623

15.8

2.3579

16.2

2.3534

16.6

2.3487

17.0

2.3438

17.4

2.3387

17.8

2.3333

18.2

2.3278

透射曲线国/span>

订购型号９/span>

型号９/span>MP-ZNSE-25-4-ARZinc Selenide＇/span>硒化锋/span>）窗牆/span>（镀增透膜（/span>

单价９/span>3800兂/span>/牆/span>库存数量９/span>6牆/span>

描述９/span>

IR?/span>抛光硒化锌窗牆/strong>AR/AR镀膜（3-12um（/span>

尺寸９/span>25mm dia x4mm

型号９/span>MP- ZNSE-50-3Zinc Selenide（硒化锌）窗片（无镀膛/span>（/span>

单价９/span>2800兂/span>/ 库存数量９/span>6

描述９/span>

IR级抛先strong>硒化锌窗牆/strong>

尺寸９/span>50mm ? x3mm

型号９/span>MP- ZNSE-70-3 Zinc Selenide（硒化锌）窗片（无镀膜）

单价９/span>6800兂/span>/ 库存数量９/span>6

描述９/span>

IR级抛先strong>硒化锌窗牆/strong>

尺寸９/span>70mm ? x 3mm

我们的库存列?/span>

尺寸

数量

备注

3.4 mm ? x 0.5 mm

129 Pcs

3.4 mm ? x 0.5 mm

5 Pcs

Coated BBAR 3-12m

3.75 mm ? x 0.5 mm

11 Pcs

4.0 mm ? x 0.5 mm

3 Pcs

4.0 mm ? x 1.0 mm

17 Pcs

5.0 mm ? x 1.0 mm

14 Pcs

1 degree wedge

5.0 mm ? x 6.0 mm

4 Pcs

5.75 mm ? x 0.5 mm

24 Pcs

6.0 mm ? x 2.0 mm

19 Pcs

Wedged 45'

6.35 mm ? x 2.0 mm

3 Pcs

6.5 mm ? x 0.8 mm

36 Pcs

7.0 mm ? x 1.0 mm

24 Pcs

7.3 mm ? x 1.0 mm

5 Pcs

7.4 mm ? x 0.9 mm

504 Pcs

7.85 mm ? x 1.0 mm

26 Pcs

BBAR 2-15m

8.0 mm ? x 0.5 mm

25 Pcs

8.0 mm ? x 1.0 mm

29 Pcs

8.0 mm ? x 1.0 mm

60 Pcs

AR 2-15m

9.0 mm ? x 2.0 mm

42 Pcs

10.0 mm ? x 0.5 mm

8 Pcs

Parallel to <36 sec

10.0 mm ? x 1.5 mm

1 Pcs

AR Wedge 8min

10.0 mm ? x 2.0 mm

17 Pcs

10.0 mm ? x 2.0 mm

3 Pcs

AR2-15m

10.0 mm ? x 2.0 mm

6 Pcs

1 Wedge

10.0 mm ? x 3.0 mm

1 Pcs

10.0 mm ? x 5.0 mm

9 Pcs

11.0 mm ? x 0.5 mm

1 Pcs

11.0 mm ? x 4.0 mm

11 Pcs

12.0 mm ? x 0.4 mm

17 Pcs

12.0 mm ? x 2.0 mm

25 Pcs

12.0 mm ? x 2.0 mm

3 Pcs

1 Wedge

12.0 mm ? x 2.0 mm

1 Pcs

AR 400-700 m

12.0 mm ? x 8.0 mm

7 Pcs

12.5 mm ? x 2.0 mm

1 Pcs

0.5 degree Wedge

Zinc Selenide Windows & Components

12.7 mm ? x 3.0 mm

11 Pcs

2-3 Fringes

12.8 mm ? x 3.0 mm

3 Pcs

Polished one face

13.0 mm ? x 0.5 mm

32 Pcs

13.0 mm ? x 4.0 mm

1 Pcs

13.0 mm ? x 5.0 mm

4 Pcs

13.0 mm ? x 6.0 mm

1 Pcs

AR/AR 500-700nm

13.0 mm ? x 6.0 mm

11 Pcs

13.0 mm ? x 10.0 mm

5 Pcs

13.5 mm ? x 3.0 mm

15 Pcs

14.0 mm ? x 2.0 mm

31 Pcs

15.0 mm ? x 1 mm

4 Pcs

15.0 mm ? x 4.0 mm

1 Pcs

15.0 mm ? x 5.0 mm

5 Pcs

16.0 mm ? x 1.0 mm

37 Pcs

16.0 mm ? x 1.0 mm

3 Pcs

1min 30 sec Wedge

16.0 mm ? x 2.0 mm

4 Pcs

17.5 mm ? x 1.5 mm

10 Pcs

17.5 mm ? x 1.5 mm

8 Pcs

BBAR/BBAR 2-15 m

18.0 mm ? x 2.0 mm

6 Pcs

18.0 mm ? x 7.0 mm

5 Pcs

19.0 mm ? x 2.0 mm

1 Pcs

19.0 mm ? x 3.2 mm

5 Pcs

19.4 mm ? x 1.5 mm

9 Pcs

19.8 mm ? x 1.8 mm

2 Pcs

19.8 mm ? x 2.0 mm

6 Pcs

19.8 mm ? x 3.0 mm

10 Pcs

20.0 mm ? x 1.5 mm

36 Pcs

20.0 mm ? x 2.0 mm

8 Pcs

20.0 mm ? x 3.0 mm

36 Pcs

20.0 mm ? x 4.0 mm

1 Pcs

AR/AR 2 12.5m

20.0 mm ? x 5.0 mm

3 Pcs

AR 2-15m

22.0 mm ? x 0.3 mm

5 Pcs

22.0 mm ? x 1.5 mm

2 Pcs

22.5 mm ? x 3.5 mm

2 Pcs

23.0 mm ? x 2.0 mm

1 Pcs

23.8 mm ? x 2.0 mm

2 Pcs

24.0 mm ? x 2.5 mm

6 Pcs

24.0 mm ? x 2.5 mm

2 Pcs

Semi Circular

25.0 mm ? x 1.0 mm

5 Pcs

AR 8 -12 m

25.0 mm ? x 1.5 mm

12 Pcs

25.0 mm ? x 2.0 mm

2 Pcs

AR (one face) 2 15m

25.0 mm ? x 2.0 mm

4 Pcs

AR/AR (both faces) 2 15m

Zinc Selenide Windows & Components

25.0 mm ? x 2.7 mm

8 Pcs

AR/AR 2-12m

25.0 mm ? x 4.0 mm

4 Pcs

Drilled

25.0 mm ? x 4.0 mm

2 Pcs

25.0 mm ? x 5.0 mm

1 Pcs

25.0 mm ? x 5.0 mm

1 Pcs

AR one face 2-15 m

25.0 mm ? x 6.0 mm

1 Pcs

25.0 mm ? x 10.0 mm

1 Pcs

AR/AR Coated1000-8000 nm

25.2 mm ? x 1.0 mm

4 Pcs

25.2 mm ? x 2.0 mm

5 Pcs

25.4 mm ? x 0.5 mm

2 Pcs

AR 8-12m

25.4 mm ? x 1.0 mm

21 Pcs

25.4 mm ? x 1.1 mm

7 Pcs

25.4 mm ? x 1.1 mm

7 Pcs

25.4 mm ? x 2.0 mm

23 Pcs

25.4 mm ? x 2.8 mm

21 Pcs

25.4 mm ? x 3.0 mm

7 Pcs

25.4 mm ? x 3.0 mm

10 Pcs

AR/AR 2 12.5m

25.4 mm ? x 4.0 mm

4 Pcs

AR/AR 7-14 m

25.4 mm ? x 7.0 mm

26 Pcs

7 Degree wedge

25.4 mm ? x 10.0 mm

2 Pcs

25.4 mm ? x 15.0 mm

1 Pcs

AR 0.97-0.99m

26.0 mm ? x 5.0 mm

1 Pcs

26.74 mm ? x 0.95 mm

1.125 ? x 0.062

2 Pcs

Bevelled edges (28.57mm x1.57mm)

29.9 mm ? x 8.0 mm

3 Pcs

30.0 mm ? x 0.6 mm

4 Pcs

30.0 mm ? x 2.0 mm

1 Pcs

30.0 mm ? x 4.0 mm

5 Pcs

30.0 mm ? x 5.0 mm

4 Pcs

30.0 mm ? x 6.0 mm

1 Pcs

32.0 mm ? x 4.0 mm

2 Pcs

32.0 mm ? x 4.0 mm

2 Pcs

32.0 mm ? x 4.8 mm

1 Pcs

32.5 mm ? x 5.0 mm

1 Pcs

32.5 mm ? x 5.0 mm

8 Pcs

Coated both faces AR/AR @ 10.6m

1.375 ? x 1/16

1 Pcs

Bevelled edges (34.92mm x1.58mm)

35.0 mm ? x 2.0 mm

4 Pcs

35.0 mm ? x 3.0 mm

2 Pcs

35.0 mm ? x 7.0 mm

2 Pcs

AR for 10.6m/hole central/1 Wedge

37.5 mm ? x 2.0 mm

1 Pcs

38.0 mm ? x 3.0 mm

2 Pcs

Zinc Selenide Windows & Components

38.1 mm ? x 2.0 mm

2 Pcs

7 Wedge

38.1 mm ? x 4.0 mm

1 Pcs

AR 3-12m

38.1 mm ? x 4.0 mm

1 Pcs

39.2 mm ? x 5.0 mm

4 Pcs

40.0 mm ? x 2.0 mm

1 Pcs

AR/AR 10.6 m

40.0 mm ? x 3.0 mm

1 Pcs

42.0 mm ? x 2.0 mm

1 Pcs

45.0 mm ? x 4.0 mm

1 Pcs

45.0 mm ? x 8.0 mm

1 Pcs

47.0 mm ? x 4.0 mm

1 Pcs

47.5 mm ? x 7.5 mm

1 Pcs

50.0 mm ? x 5 mm

3 Pcs

55.0 mm ? x 1 mm

1 Pcs

68.25 mm ? x 2.5 mm

1 Pcs

AR/AR Coated 650nm & 1550nm Wedge

100.0 mm ? x 6.0mm

1 Pcs

AR/AR Coated

12mm x 12mm x 1mm

6 Pcs

13mm x 13mm x 2mm

3 Pcs

14.5mm x 3.5mm x 1mm

5 Pcs

20mm x 20mm x 0.5mm

3 Pcs

27mm x 19mm x 1mm

5 Pcs

29.5mm x 11.5mm x 1mm

5 Pcs

30mm x 30mm x 1mm

2 Pcs

30mm x 30mm x 4mm

6 Pcs

35mm x 35mm x 3mm

2 Pcs

Drilled

36mm x 25mm x 3 mm

1 Pcs

38mm x 19mm x 4mm

1 Pcs

Drilled

38mm x 19mm x 4mm

1 Pcs

Drilled

38.1mm x 38.1mm x 7mm

2 Pcs

41mm x 23mm x 2mm

9 Pcs

Drilled

41mm x 23mm x 4mm

1 Pcs

41mm x 25mm x 5mm

2 Pcs

66mm x 38.3mm x 1.5mm

1 Pcs

71mm x 53mm x 3mm

2 Pcs

80mm x 10mm x 4mm

1 Pcs

80mm x 40mm x 4mm

2 Pcs

105mm x 50mm x 5mm

1 Pcs

117mm x 50mm x 1mm

1 Pcs

143mm x 35mm x 4mm

1 Pcs

Drilled

190mm x 130mm x4mm

1 Pcs
