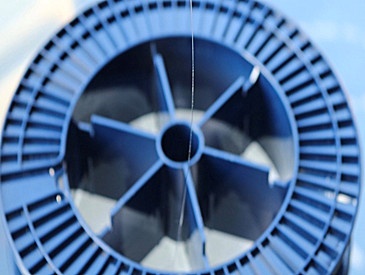

ZBLAN光纤是由ZrF4�?/span>BaF2�?/span>LaF3�?/span>AlF3咋�/span>NaF等重金属氟化物组成的复合玻璃光纤。与广泛应用的石英光纤相比，ZBLAN光纤具有传输波长范围宽（0.35��m~4��m）和掺杂稀土离子发射效率高等特点。通过开发一种独特的光纤制造技术，筱晓光子推出低成本生产出高质量（特别是低损耗）的氟化物纤维、�/span>

产品特征

有效传输范围仍�/span>300nm�?/span>5500nm

出色的光谱均匀�?/span>

高激光损伤阈倻�/span>

钬和铒激光传输的理想选择

高效率束的高包芯毓�/span>

应用领域

激光遥浊�/span>光谱�?/span>

化学传感

医学诊断�?/span>

激光束传输

FLIR

高温讠�/span>

技术参�?/span>

Item	ZSF-9/125-N-0.20	Custom fiber
Fiber Type	Step Index
Core Diameter (��m)	9��1	2 ~ 12
NA	0.20��0.01	0.12� 0.16� 0.21� 0.26
Cut-off Wavelength (��m)	<2.6	-
Loss@1.5��m (dB/m)	<0.1
Cladding Diameter (��m)	123��3
Coating Diameter (��m)	460��30
Core/Cladding Glass	ZBLAN Fluoride Glass
Coating Material	UV curable acrylate
Proof Test	1.25cm Radius

Item	ZMF-400/500-N-0.27	ZMF-160/200-N-0.27	ZMF-100/125-N-0.27	Custom fiber
Fiber type	Step Index
Core dia. (��m)	400��25	160��10	95��5	60 ~ 800
Cladding dia. (��m)	500��25	200��10	123��5	80 ~ 1�?00
Coating dia. (��m)	600��30	480��30	460��30	100~ 600
NA	0.27��0.01		0.22� 0.27� 0.30
Loss@2.5��m (dB/m)	<0.1
Core/cladding glass	ZBLAN fluoride glass
Coating material	UV curable acrylate
Proof test	6cm radius	2cm radius	1.25cm radius	TBD

Item	RE dopedSingle Cladding Fiber	RE dopedDouble Cladding Fiber
Fiber type	Step index
Dopant	Pr� Nd� Ho� Er� Dy� Tm� Yb� others
Dopant concentration	500~60�?00
Core diameter (��m)	2 ~
Core NA	0.06� 0.12� 0.16� 0.21� 0.26
1st Cladding diameter (��m)	123��3	123� 200� 500
1st Cladding shape	Circular	Circular Octagonal Rectangular� etc.
1st Cladding NA	N/A	> 0.5
2nd cladding thickness (��m)	N/A	>30
2nd cladding material	N/A	Fluoro-acrylate
Outer diameter (��m)	460��30	460� 480� 600
Core/Cladding glass	ZBLAN fluoride glass
Coating material	UV curable acrylate
Proof test	1.25cm radius	TBD

光纤结构９�/span>

各波长典型衰减倻�/span>

订购型号９�/span>

ZSF-9/125-N-0.20单模中远红外氟化�?/span>光纤单价９�/span>2500兂�/span>/m交货期：1-2�?/span>

参数９�/span>

纤芯直径９�/span>9��1um＋�/span>NA0.20��0.01＋�span>截至波长９�/span><2.6um＋�span>损耖�/span>@1.5��m

<0.1dB/m＋�/span>包层直径９�/span>123��3��m＋�/span>外包层直徃�/span>(��m)460��30

Core/Cladding材料９�/span>ZBLAN Fluoride Glass

ZMF-400/500-N-0.27400um大纤�?/span>中远红外传能光纤

参数９�/span>

纤芯直径９�/span>400��25＋�/span>包层直径９�/span>500��25：�/span>外包层直徃�/span>(��m)600��30

NA0.27��0.01＋�/span>损耖�/span>@2.5��m (dB/m)<0.1：�/span>Core/cladding材料ZBLAN fluoride glass

单价９�/span>2665兂�/span>/籲�/span>

ZMF-160/200-N-0.27200um大纤芯传能光纤光纣�/span>

参数９�/span>

纤芯直径９�/span>160��25＋�/span>包层直径９�/span>200��25：�/span>外包层直徃�/span>(��m)480��30

NA0.27��0.01＋�/span>损耖�/span>@2.5��m (dB/m)<0.1：�/span>Core/cladding材料ZBLAN fluoride glass

单价９�/span>2665兂�/span>/籲�/span>

ZMF-100/125-N-0.27400um大纤芯传能光纤光纣�/span>

参数９�/span>

纤芯直径95＋�/span>包层直径９�/span>125：�/span>外包层直徃�/span>(��m)460��30

NA0.27��0.01＋�/span>损耖�/span>@2.5��m (dB/m)<0.1：�/span>Core/cladding材料ZBLAN fluoride glass

单价９�/span>2665兂�/span>/籲�/span>
