脉冲压缩光栅
公司品牌
品牌传达企业理念
产品简今/div>

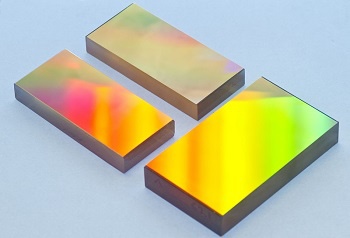

脉冲压缩光栅
产品描述:
脉冲压缩光栅是啁啾脉冲放大技术（CPA）的核心部件，处于强激光系统能量放大的*末端＋strong>脉冲压缩光栅的通光效率和损伤阈值的提高都对强激光束的能量、峰值功率的提升起到极为关键的作用。筱晓光子提供的脉冲压缩光栅涵盖700-3000nm的范围应用、/span>
产品特点９/span>
高衍射效玆/span>
高损伤阈倻/span>
宽的光谱带宽
低衍射波像差
大尺寷/span>
产品应用９/span>
啁啾脉冲放大＇/span>CPA（/span>系统
高能量激先/span>
激光核聚变
脉冲压缩光栅?/span>CPA技术中的应?/span>
订购脉冲压缩光栅时，请使用以下示例格式，或从下面皃/span>PC光栅库存列表中进行选择、/span>
PC 1200 WHThk 800nm（TM/-1）恒定偏?10
6?00nm是所需的优化波长。也可以指定峰值波长的一个或多个范围
7、（TM/-1）是光栅应该优化的偏振态和衍射级。也可以指定TE和平均值（TM+TE?2
W，H标准公差?#177;0.2mm，Thk0.5mm。CA>每个维度?0%、/span>
材料９/span>>750nm的标准金涂层（Au）、/span>
可选基材：零热膨胀玻璃陶瓷，表中标?/span>(Z)?Lw1，Zerodur或同等材?、/span>
光栅库存清单(以销售前为准):注：显示?*效率曲线仅代表所述几何形状和波长，并且可以根据使用几何形状和测量技术而变化、/span>
Art no |
Description (Z) |
Optimised for (nm) see curve |
Deviation(Deg) see curve |
Min Efficiency% (TM/-1) |
715.704.400 |
PC 0300 50x50x10 NIR |
800 |
8 |
25 |
715.704.310 |
PC 0600 25x25x6 NIR |
800 |
8 |
29 |
715.704.550 |
PC 0600 30x30x6 NIR |
800 |
8 |
29 |
715.703.080 |
PC 0600 30x30x6 1550 nm |
1550 |
10 |
90 |
715.701.890 |
PC 0600 50x50x10 NIR |
1600 |
16 |
90 |
715.703.560 |
PC 0600 50x50x10 1550 nm |
1550 |
10 |
90 |
715.707.500 |
PC 0600 50x50x10 1550 nm (Z) |
1550 |
10 |
90 |
715.705.510 |
PC 0600 50x50x10 NIR |
2450 |
10 |
90 |
715.707.120 |
PC 0600 50x110x16 1550 nm (Z) |
1550 |
10 |
90 |
715.701.910 |
PC 0600 50x110x16 NIR |
1600 |
16 |
90 |
715.706.430 |
PC 0600 110x110x16 NIR |
2450 |
10 |
90 |
715.706.880 |
PC 0600 120x140x20 NIR |
2450 |
10 |
90 |
715.707.230 |
PC 0600 120x140x20 NIR (Z) |
2450 |
10 |
90 |
715.704.900 |
PC 0800 25x50x10 NIR |
1250 |
10 |
90 |
715.707.290 |
PC 0800 30x30x6 NIR |
1250 |
10 |
90 |
715.707.300 |
PC 0800 30x75x16 NIR (Z) |
1250 |
10 |
90 |
715.707.430 |
PC 0800 50x50x10 NIR |
1350 |
10 |
90 |
715.707.610 |
PC 0800 50x110x16 NIR (Z) |
1250 |
10 |
90 |
715.706.540 |
PC 0800 100x140x20 NIR (Z) |
1250 |
10 |
90 |
715.706.530 |
PC 0800 110x110x16 NIR (Z) |
1250 |
10 |
90 |
715.703.070 |
PC 0900 30x30x6 NIR |
800 |
10 |
50 |
715.703.060 |
PC 0900 30x30x6 NIR |
1032 |
8 |
90 |
715.704.600 |
PC 0900 30x30x6 NIR |
1060 |
8 |
90 |
715.703.450 |
PC 0900 30x30x6 1350 nm |
1350 |
8 |
90 |
715.703.130 |
PC 0900 30x30x6 1550 nm |
1550 |
8 |
90 |
715.707.540 |
PC 0900 30x30x6 1950 nm |
1950 |
10 |
90 |
715.703.210 |
PC 0900 30x64x10 1550 nm |
1550 |
8 |
90 |
715.703.440 |
PC 0900 30x110x16 1350 nm |
1350 |
8 |
90 |
715.703.090 |
PC 0900 30x110x16 1550 nm |
1550 |
8 |
90 |
715.706.550 |
PC 0900 30x110x16 1950 nm |
1950 |
10 |
90 |
715.704.340 |
PC 0900 50x50x10 NIR |
1047 |
8 |
90 |
715.707.580 |
PC 0900 50x50x10 NIR |
1200 |
8 |
90 |
715.703.550 |
PC 0900 50x50x10 1550 nm |
1550 |
8 |
90 |
715.707.030 |
PC 0900 50x50x10 1950 nm (Z) |
1950 |
10 |
90 |
715.707.020 |
PC 0900 50x110x16 NIR |
800 |
10 |
50 |
715.707.040 |
PC 0900 50x110x16 1950 nm (Z) |
1950 |
10 |
90 |
715.707.650 |
PC 0900 110x110x16 1550 nm (Z) |
1550 |
10 |
90 |
715.706.440 |
PC 0900 120x140x20 1550 nm |
1550 |
8 |
90 |
715.704.140 |
PC 1100 25x25x6 NIR |
1550 |
8 |
90 |
715.707.420 |
PC 1100 30x30x6 NIR |
1032 |
10 |
90 |
715.706.390 |
PC 1100 30x75x16 NIR |
800 |
8 |
88 |
715.706.520 |
PC 1100 30x75x16 NIR (Z) |
800 |
8 |
88 |
715.702.240 |
PC 1100 30x110x16 NIR |
800 |
8 |
88 |
715.706.580 |
PC 1100 30x110x16 NIR (Z) |
800 |
8 |
88 |
715.706.900 |
PC 1100 30x110x16 NIR |
1550 |
8 |
90 |
715.705.180 |
PC 1100 50x50x10 NIR |
800 |
8 |
88 |
715.703.200 |
PC 1100 50x50x10 NIR |
1550 |
8 |
90 |
715.703.500 |
PC 1100 110x110x16 NIR |
800 |
8 |
88 |
715.704.160 |
PC 1200 25x25x6 NIR |
800 |
8 |
90 |
715.702.200 |
PC 1200 25x25x6 NIR |
1047 |
8 |
90 |
715.701.120 |
PC 1200 30x30x6 NIR |
800 |
8 |
90 |
715.703.770 |
PC 1200 30x30x6 NIR |
1047 |
8 |
90 |
715.702.940 |
PC 1200 30x30x6 1550 nm |
1550 |
8 |
90 |
715.701.200 |
PC 1200 30x64x10 NIR |
800 |
8 |
90 |
715.703.410 |
PC 1200 30x64x10 1035 nm |
1035 |
8 |
90 |
715.705.810 |
PC 1200 30x64x10 1550 nm |
1550 |
8 |
90 |
715.700.550 |
PC 1200 30x110x16 NIR |
800 |
8 |
90 |
715.702.950 |
PC 1200 30x110x16 NIR (Z) |
800 |
8 |
90 |
715.702.740 |
PC 1200 30x110x16 NIR |
1550 |
8 |
90 |
715.700.640 |
PC 1200 50x50x10 NIR |
800 |
8 |
90 |
715.705.050 |
PC 1200 50x50x10 NIR (Z) |
800 |
8 |
90 |
715.704.690 |
PC 1200 50x50x10 NIR |
1053 |
8 |
90 |
715.707.590 |
PC 1200 50x50x10 NIR (Z) |
1053 |
8 |
90 |
715.704.250 |
PC 1200 50x50x10 NIR |
1250 |
8 |
90 |
715.702.150 |
PC 1200 58x58x10 NIR |
800 |
8 |
90 |
715.703.930 |
PC 1200 58x58x10 NIR (Z) |
800 |
8 |
90 |
715.703.700 |
PC 1200 58x58x10 NIR |
1550 |
8 |
90 |
715.703.880 |
PC 1200 58x58x10 NIR (Z) |
1550 |
8 |
90 |
715.700.620 |
PC 1200 64x64x10 NIR |
800 |
8 |
90 |
715.700.630 |
PC 1200 50x110x16 NIR |
800 |
8 |
90 |
715.701.320 |
PC 1200 50x110x16 NIR |
800 |
14 |
90 |
715.702.910 |
PC 1200 50x110x16 NIR (Z) |
800 |
8 |
90 |
715.705.600 |
PC 1200 50x110x16 NIR |
1047 |
8 |
90 |
715.705.030 |
PC 1200 50x140x20 NIR |
800 |
8 |
90 |
715.700.460 |
PC 1200 90x90x16 NIR |
800 |
8 |
90 |
715.703.280 |
PC 1200 100x140x20 NIR |
800 |
8 |
90 |
715.700.580 |
PC 1200 110x110x16 NIR |
800 |
8 |
90 |
715.703.960 |
PC 1200 110x110x16 NIR (Z) |
800 |
8 |
90 |
715.701.220 |
PC 1200 120x140x20 NIR |
800 |
8 |
90 |
715.704.670 |
PC 1200 120x140x20 NIR (Z) |
800 |
8 |
90 |
715.705.400 |
PC 1200 120x140x20 NIR |
1053 |
8 |
90 |
715.707.210 |
PC 1200 120x140x20 NIR |
1550 |
8 |
90 |
715.704.680 |
PC 1250 30x64x10 1040 nm |
1040 |
8 |
90 |
715.703.190 |
PC 1400 25x25x6 NIR |
800 |
8 |
90 |
715.707.310 |
PC 1400 25x50x10 NIR |
800 |
8 |
90 |
715.702.620 |
PC 1400 30x30x6 NIR |
800 |
12 |
90 |
715.700.720 |
PC 1400 30x110x16 NIR |
800 |
15 |
90 |
715.701.760 |
PC 1400 30x110x16 NIR |
800 |
8 |
90 |
715.707.010 |
PC 1400 40x140x20 NIR (Z) |
800 |
15 |
90 |
715.702.840 |
PC 1400 50x50x10 NIR |
800 |
8 |
90 |
715.703.990 |
PC 1400 50x50x10 NIR (Z) |
800 |
8 |
90 |
715.707.510 |
PC 1400 50x50x10 NIR |
1030 |
10 |
90 |
715.704.510 |
PC 1400 50x110x16 NIR |
800 |
8 |
90 |
715.704.010 |
PC 1400 50x110x16 NIR (Z) |
800 |
8 |
90 |
715.704.610 |
PC 1400 60x120x20 NIR |
800 |
21 |
90 |
715.703.260 |
PC 1400 64x64x10 NIR |
800 |
8 |
90 |
715.703.620 |
PC 1400 90x90x16 NIR |
800 |
8 |
90 |
715.703.240 |
PC 1400 110x110x16 NIR |
800 |
15 |
90 |
715.704.990 |
PC 1400 110x110x16 NIR (Z) |
800 |
10 |
90 |
715.704.080 |
PC 1400 100x140x20 NIR |
800 |
17 |
90 |
715.704.190 |
PC 1400 120x140x20 NIR |
800 |
12 |
90 |
715.704.660 |
PC 1400 120x140x20 NIR (Z) |
800 |
8 |
90 |
715.705.730 |
PC 1480 25x25x6 NIR |
1053 |
10 |
90 |
715.704.030 |
PC 1480 50x50x10 NIR |
765 |
20 |
89 |
715.707.330 |
PC 1480 50x50x10 NIR |
1053 |
10 |
90 |
715.705.780 |
PC 1480 50x110x16 NIR |
1053 |
10 |
90 |
715.706.150 |
PC 1480 58x58x10 NIR |
800 |
10 |
90 |
715.707.100 |
PC 1480 60x140x20 NIR |
800 |
10 |
90 |
715.703.750 |
PC 1480 60x140x20 NIR |
1060 |
8 |
90 |
715.705.740 |
PC 1480 110x110x16 NIR |
800 |
10 |
90 |
715.705.750 |
PC 1480 120x140x20 NIR |
800 |
10 |
90 |
715.706.110 |
PC 1480 120x140x20 NIR (Z) |
800 |
10 |
90 |
715.706.780 |
PC 1480 140x120x20 NIR (Z) |
800 |
10 |
90 |
715.705.990 |
PC 1480 140x120x20 NIR |
800 |
18 |
90 |
715.703.640 |
PC 1500 25x25x6 NIR |
800 |
8 |
90 |
715.702.590 |
PC 1500 30x30x6 NIR |
800 |
55 |
90 |
715.704.050 |
PC 1500 30x30x6 NIR |
1030 |
8 |
90 |
715.703.860 |
PC 1500 30x64x10 NIR |
800 |
8 |
90 |
715.706.220 |
PC 1500 30x64x10 NIR |
1030 |
8 |
90 |
715.705.070 |
PC 1500 30x75x16 1030 nm |
1030 |
8 |
90 |
715.701.470 |
PC 1500 30x110x16 800 nm |
800 |
8 |
90 |
715.702.990 |
PC 1500 30x110x16 800 nm |
800 |
26 |
90 |
715.706.330 |
PC 1500 30x110x16 NIR (Z) |
800 |
30 |
90 |
715.703.110 |
PC 1500 30x110x16 1030 nm |
1030 |
8 |
90 |
715.703.100 |
PC 1500 30x110x16 1030 nm (Z) |
1030 |
8 |
90 |
715.704.120 |
PC 1500 50x50x10 NIR |
800 |
13 |
90 |
715.703.980 |
PC 1500 50x50x10 NIR (Z) |
800 |
13 |
90 |
715.701.380 |
PC 1500 50x110x16 800 nm |
800 |
8 |
90 |
715.703.510 |
PC 1500 50x110x16 NIR (Z) |
800 |
8 |
90 |
715.703.520 |
PC 1500 50x110x16 NIR (Z) |
800 |
30 |
90 |
715.702.470 |
PC 1500 50x140x20 NIR |
800 |
13 |
90 |
715.706.670 |
PC 1500 50x140x20 NIR (Z) |
800 |
13 |
90 |
715.704.350 |
PC 1500 58x58x10 NIR |
800 |
14 |
90 |
715.703.920 |
PC 1500 58x58x10 NIR (Z) |
800 |
13 |
90 |
715.701.750 |
PC 1500 64x64x10 NIR |
800 |
8 |
90 |
715.705.230 |
PC 1500 64x64x10 NIR (Z) |
800 |
8 |
90 |
715.706.510 |
PC 1500 70x140x20 NIR |
800 |
13 |
90 |
715.707.070 |
PC 1500 70x140x20 NIR (Z) |
800 |
13 |
90 |
715.704.520 |
PC 1500 80x50x16 NIR |
800 |
8 |
90 |
715.703.780 |
PC 1500 90x90x16 NIR |
800 |
14 |
90 |
715.703.610 |
PC 1500 100x140x20 NIR |
800 |
8 |
90 |
715.702.040 |
PC 1500 100x140x20 NIR |
800 |
33 |
90 |
705.703.420 |
PC 1500 110x50x16 NIR |
800 |
8 |
90 |
715.706.940 |
PC 1500 110x50x16 NIR (Z) |
800 |
8 |
90 |
715.704.200 |
PC 1500 110x110x16 NIR |
800 |
8 |
90 |
715.704.850 |
PC 1500 110x110x16 NIR (Z) |
800 |
8 |
90 |
715.705.480 |
PC 1500 110x110x16 NIR |
800 |
30 |
90 |
715.701.660 |
PC 1500 120x140x20 NIR |
800 |
8 |
90 |
715.703.950 |
PC 1500 120x140x20 NIR (Z) |
800 |
13 |
90 |
715.705.620 |
PC 1500 120x140x20 NIR |
800 |
30 |
90 |
715.704.430 |
PC 1600 25x25x6 NIR |
800 |
8 |
90 |
715.705.220 |
PC 1600 30x30x6 NIR |
800 |
8 |
90 |
715.704.150 |
PC 1600 30x64x10 NIR |
800 |
8 |
90 |
715.704.870 |
PC 1600 30x75x16 NIR |
800 |
15 |
90 |
715.700.350 |
PC 1600 30x110x16 NIR |
800 |
15 |
90 |
715.704.440 |
PC 1600 50x50x10 NIR |
750 |
20 |
90 |
715.707.090 |
PC 1600 50x50x10 NIR (Z) |
800 |
13 |
90 |
715.707.140 |
PC 1600 50x110x16 NIR |
800 |
10 |
90 |
715.704.880 |
PC 1600 50x110x16 NIR (Z) |
800 |
15 |
90 |
715.705.440 |
PC 1600 64x64x10 NIR |
1064 |
10 |
90 |
715.705.110 |
PC 1600 110x110x16 NIR (Z) |
800 |
8 |
90 |
715.704.320 |
PC 1600 110x110x16 NIR |
1053 |
10 |
90 |
715.704.420 |
PC 1600 120x140x20 NIR |
800 |
8 |
90 |
715.704.560 |
PC 1700 25x25x6 NIR |
800 |
8 |
90 |
715.706.240 |
PC 1700 30x30x6 NIR |
800 |
8 |
90 |
715.702.400 |
PC 1700 30x30x6 NIR |
1053 |
10 |
90 |
715.702.960 |
PC 1700 30x64x10 NIR |
800 |
30 |
90 |
715.702.970 |
PC 1700 30x64x10 VIS |
633 |
30 |
79 |
715.705.190 |
PC 1700 30x64x10 NIR |
1053 |
10 |
90 |
715.707.180 |
PC 1700 30x110x16 NIR (Z) |
1035 |
10 |
90 |
715.706.680 |
PC 1700 30x110x16 NIR (Z) |
1053 |
10 |
90 |
715.703.670 |
PC 1700 50x50x10 NIR |
1040 |
10 |
90 |
715.702.650 |
PC 1700 50x110x16 NIR |
1040 |
10 |
90 |
715.701.680 |
PC 1700 64x64x10 800 nm |
800 |
8 |
90 |
715.703.230 |
PC 1700 64x64x10 1053 nm |
1053 |
10 |
90 |
715.705.420 |
PC 1700 120x140x20 NIR |
1053 |
10 |
90 |
715.705.680 |
PC 1740 30x30x6 NIR |
1053 |
8 |
90 |
715.705.910 |
PC 1740 30x64x10 NIR (Z) |
1053 |
8 |
90 |
715.705.690 |
PC 1740 30x110x16 NIR |
1053 |
8 |
90 |
715.706.590 |
PC 1740 50x50x10 NIR (Z) |
1060 |
8 |
90 |
715.705.800 |
PC 1740 50x50x10 NIR |
1053 |
8 |
90 |
715.704.570 |
PC 1740 50x110x16 NIR (Z) |
1040 |
11 |
90 |
715.707.060 |
PC 1740 50x140x20 NIR (Z) |
1030 |
10 |
90 |
715.706.020 |
PC 1740 64x30x10 NIR (Z) |
1053 |
8 |
90 |
715.705.920 |
PC 1740 64x64x10 NIR (Z) |
1053 |
8 |
90 |
715.701.880 |
PC 1740 64x64x10 NIR |
1053 |
8 |
90 |
715.705.840 |
PC 1740 100x140x20 NIR |
1057 |
8 |
90 |
715.707.050 |
PC 1740 110x110x16 NIR (Z) |
1018 |
10 |
90 |
715.705.830 |
PC 1740 110x110x16 NIR |
1057 |
8 |
90 |
715.707.080 |
PC 1740 120x140x20 NIR (Z) |
1030 |
10 |
90 |
715.704.070 |
PC 1740 120x140x20 NIR (Z) |
1054 |
14 |
90 |
715.704.100 |
PC 1740 120x140x20 NIR |
1054 |
14 |
90 |
715.701.070 |
PC 1800 15x15x6 NIR |
800 |
8 |
90 |
715.705.540 |
PC 1800 15x30x6 NIR |
800 |
8 |
90 |
715.704.130 |
PC 1800 25x25x6 NIR |
800 |
8 |
90 |
715.701.140 |
PC 1800 30x30x6 NIR |
800 |
8 |
90 |
715.702.510 |
PC 1800 30x30x6 NIR |
1030 |
8 |
90 |
715.704.180 |
PC 1800 30x30x6 NIR |
1047 |
8 |
90 |
715.703.690 |
PC 1800 30x64x10 NIR |
800 |
8 |
90 |
715.702.520 |
PC 1800 30x64x10 NIR |
1030 |
8 |
90 |
715.703.120 |
PC 1800 30x64x10 1060 nm |
1060 |
8 |
85 |
715.703.010 |
PC 1800 30x110x16 800 nm |
800 |
17 |
90 |
715.700.450 |
PC 1800 30x110x16 NIR |
800 |
8 |
90 |
715.705.250 |
PC 1800 30x110x16 NIR (Z) |
800 |
8 |
90 |
715.702.530 |
PC 1800 30x110x16 NIR |
1030 |
8 |
90 |
715.704.170 |
PC 1800 30x110x16 NIR |
1047 |
8 |
90 |
715.700.800 |
PC 1800 50x50x10 NIR |
800 |
8 |
90 |
715.704.110 |
PC 1800 50x50x10 NIR (Z) |
800 |
8 |
90 |
715.704.280 |
PC 1800 50x50x10 NIR |
1030 |
8 |
90 |
715.704.490 |
PC 1800 50x50x10 NIR |
1064 |
8 |
85 |
715.700.600 |
PC 1800 50x110x16 NIR |
800 |
8 |
90 |
715.703.020 |
PC 1800 50x110x16 800 nm |
800 |
16 |
90 |
715.703.570 |
PC 1800 50x110x16 NIR (Z) |
800 |
16 |
90 |
715.704.290 |
PC 1800 50x110x16 NIR |
1030 |
8 |
90 |
715.704.370 |
PC 1800 50x110x16 NIR |
1053 |
8 |
82 |
715.705.160 |
PC 1800 50x140x20 NIR |
800 |
8 |
90 |
715.704.540 |
PC 1800 50x140x20 NIR |
1030 |
8 |
90 |
715.700.560 |
PC 1800 64x64x10 NIR |
800 |
8 |
90 |
715.704.380 |
PC 1800 64x64x10 NIR |
1053 |
8 |
82 |
715.704.220 |
PC 1800 100x140x20 NIR |
800 |
8 |
90 |
715.700.590 |
PC 1800 110x110x16 NIR |
800 |
8 |
90 |
715.704.410 |
PC 1800 110x110x16 NIR |
1054 |
8 |
82 |
715.701.150 |
PC 1800 120x140x20 NIR |
800 |
8 |
90 |
715.703.820 |
PC 1800 120x140x20 NIR (Z) |
800 |
8 |
90 |
715.703.270 |
PC 2000 25x25x6 NIR |
800 |
8 |
90 |
715.701.920 |
PC 2000 30x30x6 NIR |
800 |
8 |
90 |
715.701.040 |
PC 2000 30x30x6 800 nm |
800 |
8 |
90 |
715.700.470 |
PC 2000 30x64x10 NIR |
800 |
8 |
90 |
715.701.580 |
PC 2000 30x75x16 800 nm |
800 |
8 |
90 |
715.700.570 |
PC 2000 30x110x16 NIR |
800 |
15 |
90 |
715.700.920 |
PC 2000 30x110x16 NIR |
800 |
8 |
90 |
715.700.820 |
PC 2000 50x50x10 NIR |
800 |
8 |
90 |
715.701.330 |
PC 2000 50x110x16 NIR |
800 |
8 |
90 |
715.703.800 |
PC 2000 50x110x16 NIR (Z) |
800 |
8 |
90 |
715.703.630 |
PC 2000 50x110x16 NIR (Z) |
800 |
23 |
88 |
715.702.600 |
PC 2000 58x58x10 NIR |
950 |
8 |
90 |
715.700.830 |
PC 2000 64x64x10 NIR |
800 |
8 |
90 |
715.704.230 |
PC 2000 100x140x20 NIR |
800 |
8 |
90 |
715.704.270 |
PC 2000 110x110x16 NIR |
800 |
8 |
90 |
715.701.710 |
PC 2000 120x140x20 NIR |
800 |
8 |
90 |
715.705.280 |
PC 2100 25x25x6 NIR |
800 |
8 |
90 |
715.703.480 |
PC 2100 30x30x6 NIR |
800 |
8 |
90 |
715.703.040 |
PC 2100 30x64x10 NIR |
800 |
8 |
90 |
715.701.650 |
PC 2100 30x110x16 NIR |
800 |
8 |
90 |
715.702.260 |
PC 2100 50x50x10 NIR |
800 |
8 |
90 |
715.702.250 |
PC 2100 50x110x16 NIR |
800 |
8 |
90 |
715.704.360 |
PC 2200 25x25x6 NIR |
800 |
8 |
90 |
715.701.970 |
PC 2200 30x30x6 NIR |
800 |
8 |
90 |
715.705.120 |
PC 2200 30x64x10 NIR |
800 |
8 |
90 |
715.701.230 |
PC 2200 30x110x16 NIR |
800 |
8 |
90 |
715.703.360 |
PC 2200 50x50x10 NIR |
765 |
16 |
90 |
715.701.630 |
PC 2200 50x50x10 NIR |
800 |
8 |
90 |
715.703.370 |
PC 2200 50x110x16 NIR |
765 |
16 |
90 |
715.701.530 |
PC 2200 50x110x16 NIR |
800 |
8 |
90 |
715.703.810 |
PC 2200 50x110x16 NIR (Z) |
800 |
8 |
90 |
715.703.580 |
PC 2200 50x110x16 NIR (Z) |
800 |
15 |
88 |
715.703.350 |
PC 2200 100x140x20 NIR |
800 |
8 |
90 |
715.703.540 |
PC 2200 100x140x20 NIR |
800 |
13 |
90 |
715.702.560 |
PC 2200 100x140x20 NIR |
800 |
21 |
85 |
715.700.650 |
PC 2200 110x110x16 NIR |
800 |
8 |
90 |
715.703.910 |
PC 2200 120x140x20 NIR |
800 |
13 |
90 |
715.704.580 |
PC 2300 25x25x6 NIR |
800 |
8 |
88 |
715.702.850 |
PC 2300 30x30x6 NIR |
800 |
8 |
88 |
715.702.190 |
PC 2300 30x64x10 NIR |
800 |
8 |
88 |
715.701.450 |
PC 2300 30x110x16 NIR |
800 |
15 |
88 |
715.702.800 |
PC 2300 50x50x10 NIR |
800 |
8 |
88 |
715.701.990 |
PC 2400 30x30x6 NIR |
800 |
8 |
87 |
715.701.980 |
PC 2400 30x64x10 NIR |
800 |
8 |
87 |
715.701.350 |
PC 2400 30x110x16 NIR |
800 |
8 |
87 |
715.701.340 |
PC 2400 50x50x10 NIR |
800 |
8 |
87 |
715.707.640 |
PC 2400 58x58x10 NIR |
800 |
8 |
87 |
- 推荐产品
- 供应产品
- 产品分类
- Wasatch Photonics’EVPG激光脉冲压缩光?250 l/mm @ 1030nm
- 金属化单模光纣/a>
- 2000nm高功率台式中红外单模FP光源
- 808nm单模14 Pin蝶形光纤耦合激光器
- 非线性晶体型快速扫描自/互相关仪
- 特种波长波分复用?434/1470 980/1060 1033/1083nm
- GasFinder 2-VB：车载气体检测仪
- 405nm 10mW单模光纤耦合激光器
- 光电探测?高速Si-PIN)
- ER50-7-PM保偏掺铒光纤
- 碲化?CdTe)晶体
- 2um波段光纤激光器谐振腔专用的光栅寸/a>
- 硒化锌分光镜
- TerasSense太赫兹产生器IMPATT
- 多通道光纤阵列
- 1x3一次拉锥多芯单模光纤耦合?310 1550nm
