仪器简介：

Temperature conditions

case operation temperature +15...+30��C

storage temperature -20...+60��C

recommended cooling capacity >1000 W

chiller flow capacity <5 lmin

water pressure 4 bar

water temperature 20��C

Fiber data

core diameter 400��m �� 2%

N.A. 0�?2

connectors LD80

Other parameters

expected lifetime (MTBF) 20.000 h

RoHS2002/95/EC and CE

compliant

YES

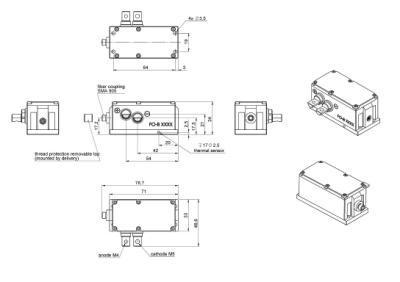

laser head dimensions

Connectors not included

71x33x34 mm

weight laser head 6�? kg

warranty 1 year

Optional

Pilot Beam

pilot beam output power > 1 mW

pilot beam wavelength 625 �� 5 nm

pilot beam voltage 3-5 V

pilot beam current < 120 mA

Monitor Diode

operation voltage 5 VDC

monitor diode signal 0-2 V

技术参数：

Optical data

output power ?350W CW at the fiber end

center wavelength l 805-810nm� 915nm� 940nm� 975-980nm

tolerance of l �� 10nmn (��3� �� 2)nm***

spectral width (FWHM) <8nm (< 5nm)***

temperature drift of l ~0.3� ~0.35，~0�?nm/K

主要特点９�/strong>

Electrical data

typ. threshold current 6-10 A

typ. operation current (BOL*) 53 A

max. operation current (BOL*) 60 A

max. operation current (EOL**) 72 A

typical efficiency 37%

slope efficiency 7�? W/A

operation voltage <20 v

reverse voltage 0
