Features:

? Unique wavelength offerings for speciality applications

? Brillouin Broadband SLED for improved stability

? 633nm - 1625 nm

? Sensitivity to -70 dB

? USB communications port

? Wide range of available wavelengths

? Touch screen display

? Dual wavelength source available

? High resolution

? Optional insertion loss measurement capability

? Built-in memory

Applications:

? OCT device testing

? Backreflection measurement of passive

fiber optic devices

? Insertion loss measurement

? End-to-end loss measurement

? Quality control

? Component or system troubleshooting

? Network installation

Product Description:

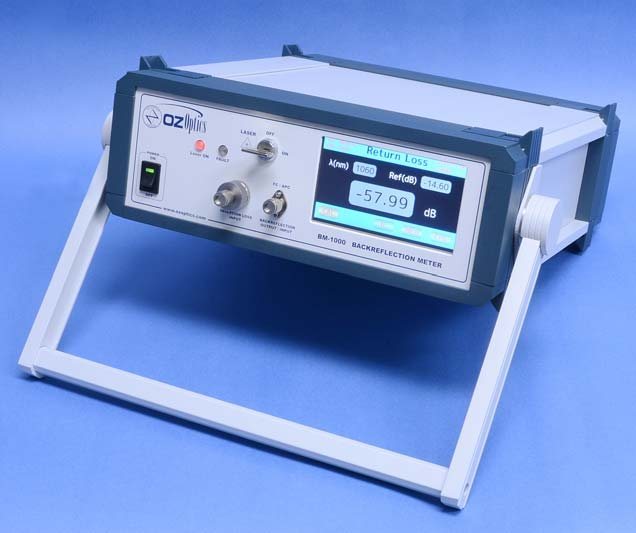

The OZ Optics Limited Benchtop BM-1000 and BM-2000 Backreflection Meters measure the total accumulated optical return loss that is

reflected back through a device or fiber under test. The measured reflections are caused by Rayleigh scattering� sudden changes in the

refractive index within the device under test (DUT)� or from connector ends.

The Benchtop Backreflection Meter is configured with an FC/APC connector on the output port� to minimize unwanted reflections. The meter

has either one or two built-in SLED or laser diodes for return loss measurement at specific wavelengths. An optional detector can be added to

the unit for insertion loss measurements. Reference patchcords for calibration are available. Adaptor patchcords are also available� to allow the

meter to be used with devices having different connectors.

The Benchtop Backreflection Meter is offered with special wavelengths� ranging from 630nm to 1625 nm. Thus providing backreflection

measurement capabilities for non-telecom applications as well as telecom. Please refer to the ordering information.

The Benchtop Backreflection Meter has a color touch screen display with a simple graphical user interface. The unit comes with a built-in

memory that allows the user to store measured DUT test results.

The Benchtop BM-1000 and BM-2000 Backreflection Meters can be operated remotely via the built-in USB interface. A universal AC/DC power

supply is included with all units.
