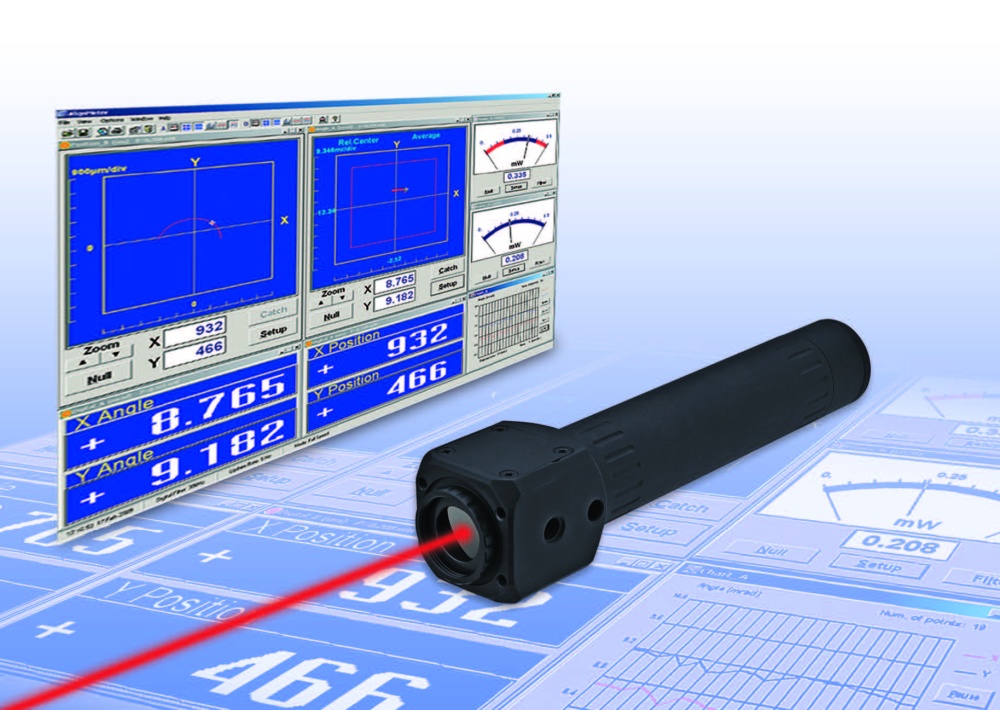

激光准直仪AlignMeterUSB
轻便、快速、精确的激光准直仪，同时测量光束位置、角度和功率
多用途：测量光束位置(探测面积直径? mm )，角?高达180 mrad )和功?10W 5 mW无衰减片?
精确９/span>分辨率低?.1m& 50 Hz的数字滤波，位置传感?#177;15m**精度?.005 mRad分辨率，0.125 mRad角度传感?*精度、/span>
方便９/span>USB2.0接口，软件适用于笔记本/台式电脑Win XP/7(32 & 64?系统、/span>
易于使用９/span>用户友好的软件，完整的联机帮助程庎/span>
主要特点９/span>
n通过USB2.0接口输入电源
n新硬件拥?4位A/D
n方便的自动增益设?/span>
n位置和角度传感器同步操作
n用于用户应用程序集成的ActiveX程序匄/span>
n可与多种设备协同操作
n通过RS232存储数据记录到Excel文件
n实时显示位置、角度和功率测量
每个准直仪由两个PSD、分束器和透镜组件组成、/span>
参数９/span>
AlignMeter USB |
||
PSD size (two optionals) |
9mmX9mm |
4mmX4mm |
Type |
Dual-axis Si resin no glass cover |
Dual-axis Si resin no glass cover |
Usable beam size range |
50m to ?8mm |
50m to ?3mm |
Update rate |
Max 150 Hz at 500 Hz digital filter |
Max 150 Hz at 500 Hz digital filter |
Spectral range |
350 1100nm |
350 1100nm |
Position measurement range |
8mm diameter circle max. centered on the PSD |
3mm diameter circle max. centered on the PSD |
Power range |
10 W 10 mW with attenuating ND filters |
10 W 10 mW with attenuating ND filters |
Power accuracy (*) |
5% |
5% |
Lens type |
Plano convex achromat A/R coated |
Plano convex achromat A/R coated |
Beam splitter |
50:50 A:R coated non-polarized |
50:50 A:R coated non-polarized |
Temperature range |
0oc to 35oc |
0oc to 35oc |
Optional accessories |
ND filters (See Optional Accessories on page 4) |
ND filters (See Optional Accessories on page 4) |
Hood for ambient light obstruction |
Hood for ambient light obstruction |
|
(See Optional Accessories on page 4) |
(See Optional Accessories on page 4) |
|
