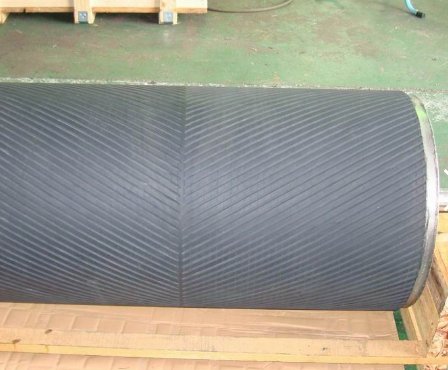

产品描述
磁滚作为头或尾滚安装在现有的传送带系统中，是一种具有成本效益的磁性金属分离器、/p>
磁性滚轮不需要维护，磁滚可以从皮带上传送的材料中自动清除不需要的铁，以防止机械损坏和产品污染、/p>
应用领域
食品，化工，采矿，岩石产品，陶瓷，纸张、木制品等资源回收，煤炭处理和铸造行?
工作原理
磁滚广泛用作带式输送机中的头辊，用于从各种材料中连续自动去除有害的杂质铁、/p>
磁滚?60°都装有磁铁，形成具有相应旋转磁场的磁系统，该磁场围绕整个圆周有效。磁场吸引物料中的铁磁金属颗粒，并且在磁滚上运行的传送带将这些铁颗粒带到磁滚的的下侧，当铁在磁滚的下侧并离开磁场范围内时，铁就从皮带带上脱落，实现分选效果、/p>
对于强导磁性铁粒子，我们安装刮板进行剥离。磁性滚轮是一个连续的系统，因此不需要停止物料输送系统带走分离的金属颗粒。从而磁滚适合铁含量比较高的物料、/p>
规格?/strong>
规格 (公制（/p> 产能是根据表格中滚轮的转速核算的，表格中皮带的速度是推荐的更大的皮带速度，皮带速度降低，产能也会相应的降低，从而确保更好的分选效果、/p> |
滚轮直径 |
滚轮宽度 mm |
产能 m³/h |
键槽尺寸 宽度*深度*长度 （mm) |
203mm (43 MTR P.M) |
254 |
12.7 |
9.53X4.77X58 |
|
305 |
16.4 |
9.53X4.77X58 |
||
356 |
18.1 |
9.53X4.77X58 |
||
406 |
22.6 |
9.53X4.77X58 |
||
457 |
30.3 |
9.53X4.77X58 |
||
508 |
38.8 |
9.53X4.77X58 |
||
559 |
50 |
9.53X4.77X58 |
||
660 |
68 |
9.53X4.77X58 |
||
813 |
114 |
9.53X4.77X58 |
||
965 |
161 |
9.53X4.77X58 |
||
305mm (64 MTR P.M) |
356 |
27 |
12.7X6.3X63.5 |
|
406 |
34 |
12.7X6.3X63.5 |
||
457 |
45 |
12.7X6.3X63.5 |
||
508 |
64 |
12.7X6.3X63.5 |
||
559 |
77 |
12.7X6.3X63.5 |
||
660 |
102 |
12.7X6.3X63.5 |
||
813 |
170 |
12.7X6.3X63.5 |
||
965 |
242 |
12.7X6.3X63.5 |
||
1118 |
306 |
12.7X6.3X63.5 |
||
1295 |
428 |
12.7X6.3X63.5 |
||
381mm (73 MTR P.M) |
356 |
30 |
15.88X7.94X76 |
|
406 |
39 |
15.88X7.94X76 |
||
457 |
53 |
15.88X7.94X76 |
||
508 |
77 |
15.88X7.94X76 |
||
559 |
88 |
15.88X7.94X76 |
||
660 |
116 |
15.88X7.94X76 |
||
813 |
195 |
15.88X7.94X76 |
||
965 |
276 |
15.88X7.94X76 |
||
1118 |
349 |
15.88X7.94X76 |
||
1295 |
489 |
15.88X7.94X76 |
||
457mm (82 MTR P.M) |
356 |
34 |
15.88X7.94X76 |
|
406 |
44 |
15.88X7.94X76 |
||
457 |
62 |
15.88X7.94X76 |
||
508 |
87 |
15.88X7.94X76 |
||
559 |
105 |
19.05X9.53X76 |
||
660 |
132 |
19.05X9.53X76 |
||
813 |
219 |
19.05X9.53X76 |
||
965 |
310 |
19.05X9.53X76 |
||
1118 |
394 |
19.05X9.53X76 |
||
1295 |
550 |
19.05X9.53X76 |
||
508mm (91 MTR P.M) |
406 |
48 |
19.05X9.53X76 |
|
457 |
68 |
19.05X9.53X76 |
||
508 |
96 |
19.05X9.53X76 |
||
559 |
116 |
19.05X9.53X76 |
||
660 |
145 |
19.05X9.53X76 |
||
813 |
244 |
19.05X9.53X76 |
||
965 |
345 |
19.05X9.53X76 |
||
1118 |
436 |
19.05X9.53X76 |
||
1295 |
615 |
19.05X9.53X76 |
||
1448 |
810 |
19.05X9.53X76 |
||
1600 |
1050 |
19.05X9.53X76 |
||
610mm (104 MTR P.M) |
406 |
57 |
19.05X9.53X76 |
|
457 |
77 |
19.05X9.53X76 |
||
508 |
125 |
19.05X9.53X76 |
||
559 |
132 |
19.05X9.53X76 |
||
660 |
166 |
19.05X9.53X76 |
||
813 |
280 |
22.23X11.11X76 |
||
965 |
460 |
22.23X11.11X76 |
||
1118 |
500 |
25.4X12.7X76 |
||
1295 |
700 |
25.4X12.7X76 |
||
1448 |
920 |
25.4X12.7X76 |
||
1600 |
1200 |
25.4X12.7X76 |
||
762mm (122 MTR P.M) |
508 |
130 |
25.4X12.7X76 |
|
559 |
155 |
25.4X12.7X76 |
||
660 |
195 |
25.4X12.7X76 |
||
813 |
325 |
31.75X15.88X89 |
||
965 |
460 |
31.75X15.88X89 |
||
1118 |
585 |
31.75X15.88X89 |
||
1295 |
815 |
31.75X15.88X89 |
||
1448 |
1071 |
31.75X15.88X89 |
||
1600 |
1071 |
31.75X15.88X89 |
||
914mm (134 MTR P.M) |
508 |
145 |
25.4X12.7X76 |
|
559 |
175 |
25.4X12.7X76 |
||
660 |
215 |
31.75X15.88X89 |
||
813 |
360 |
31.75X15.88X89 |
||
965 |
510 |
31.75X15.88X89 |
||
1118 |
640 |
31.75X15.88X89 |
||
1295 |
900 |
31.75X15.88X89 |
||
1448 |
1180 |
31.75X15.88X89 |
||
1600 |
1540 |
31.75X15.88X89 |
服务
免费物料测试
根据测试结果和工作环境提供设计方桇/p>
