产品简今/div>

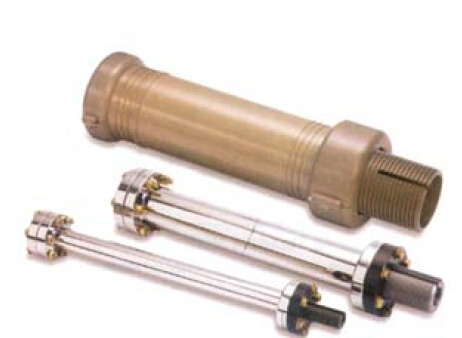

动态轴向压缩柱
持续不断的轴向压缩防止塌陷形戏/span>从而确保色谱柱的长寿命
和普通HPLC柱一样可以在任何地方使用
轴向压缩条件下装填获得高柱效
全球**颖的制备柰/strong>每一根SpringTM柱的内部都有一个贮存能量的机械弹簧一直给柱床加压。这?*技术就是目?*的可防止柱床塌陷的动态轴向压缩柱(美国**叶/span>5893971?951873?036855)我们可以提供用自有填料装填的预装弹簧柱。弹簧柱硬件可以确保预装弹簧?长的使用対/span>命和**柱效、/span>MultiPacker装柱工作站配吇/span>SpringTM弹簧柱硬件可以让您轻松自己完成选用任何制备?/span>料的装柱。和市面上的其他装柱系统相比＋/span>MultiPacker装柱工作站不仅具有价值优势，耋/span>且还不需要在每个制备HPLC的使用地方都配专用的装柱机、/span>
SpringTM柱装填示意图
SpringTM弹簧柱硬仵/span>SpringTM弹簧柱需和MultiPacker?柱装填机配套使用＋/span>具有独特的优点：
高效的轴向压?/span>
更长的填料使用寿呼/span>
便携式的轴向压缩柰/span>
装柱简单方侾/span>
我们也提供预装填的弹簧柱，如果使用者自己没有MultiPacer装柱系统又要重新装填，就必须把柱子返回到我们公司了、/span>
如何订购和MultiPacker柱装系统配套的SpringTM弹簧柱硬仵/span>弹簧柱可以整套订购，请咨询上海宸乔生物科技有限公司。或者用户根据要求自己选择其中的部件，相关客户定制件，请咨询上海宸乔生物科技有限公司。弹簧柱?/span>长度上有两种规格40cm?0cm?0cm柱管*长可装填15cm长的柱子?0cm柱管*长可装填30cm长的柱子、/span>
每个弹簧柱套装有五个部件组成。对于用户定制柱，下列的每个部件都需要订购、/span>
1. 弹簧柱基本套装包?/span>
a. 柱管
b. 密封圈和O形环
c. 锁定装置
d. 弹簧片导箠/span>
e. 法兰
f. 组装螺栓零件
g. 柱长垫块(70cm柱用)－未附照片部2. 弹簧柱活塞套装有活塞、筛板、PTFE热缩膜和O彡/span>环，可以分别订购1um?um?um筛板孔径的活塞套装、/span>
3. 弹簧套装。可以根据您的要求选购不同压力范围皃/span>弹簧套装。为保持轴向压缩力，弹簧的弹力必须要超过实际的操作压力、/span>
4. 出口筛板。选购1um?um?um孔径的筛板。对?01 mm内径的柱子，出口筛板和活塞套装是宋/span>全一样的、/span>
5. 管路连接。选购适合您需要的内外径的管路
下面的指导将会帮助您选择适合您需要的部件组合。如仍需帮助上海宸乔生物科技有限公司的技术支持、/span>
SpringTM弹簧柱硬仵/strong>SpringTM弹簧柱硬件套裄/span>
我们提供成套?5mm?0mm?01mm内径的标准SpringTM弹簧柱硬件套装，如下表所示，用一个产品号尰/span>可以订购。每个套装都?um的筛板和1000?000psig的弹簧。如客户有不同的需求，可以从后面选择部件自由组合定制的弹簧柱、/span>
后面详细列出了每个部件和替换零件、/span>
弹簧柱硬件套裄/span>
| 包括 | |||
| 柱尺寷/td> | 货号 | 描述 | 货号 |
| 25mm i.d. | |||
25mm i.d. x 40cm＋/p> Non-Water-Jacketed |
SA2002-025040 | Base Column Parts Kit* 40cm long column for bed lengths up to 15cm | SC2002-025040 |
| AS2002-025A09 | Piston Assembly with 2m frit | ||
| AF0000-C02502 | Outlet Frit 2m | ||
| AS2002-025A03 | Spring Kit for packing pressures from 1000 to 2000psig | ||
| AS2002-025A07 | 1/16”o.d. 0.040”i.d. Connecting Tube and Fittings | ||
25mm i.d. x 70cm＋/p> Non-Water-Jacketed |
SA2002-025070 | Base Column Parts Kit* 70cm long column for bed lengths up to 30cm | SC2002-025070 |
| AS2002-025A09 | Piston Assembly with 2m frit | ||
| AF0000-C02502 | Outlet Frit 2m | ||
| AS2002-025A03 | Spring Kit for packing pressures from 1000 to 2000psig | ||
| AS2002-025A07 | 1/16”o.d. 0.040”i.d. Connecting Tube and Fittings | ||
| 50mm i.d. | |||
50mm i.d. x 40cm＋/p> Non-Water-Jacketed** |
SA2002-050040 | Base Column Parts Kit* 40cm long column for bed Iengths up to 15cm | SC2002-050040 |
| AS2002-050A01 | Piston Assembly with 2m frit | ||
| AF0000-B05002 | Outlet Frit 2m | ||
| AS2002-050A03 | Spring Kit for packing pressures from 1000 to 2000psig | ||
| AS2002-050A07 | 1/6”o.d. 0.040”i.d. Connecting Tube and Fittings | ||
| AS2002-050A09 | 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | ||
50mm i.d. x 70cm＋/p> Non-Water-Jacketed** |
SA2002-050070 | Base Column Parts Kit* 70cm Jong column for bed Iengths up to 30cm | SC2002-050070 |
| AS2002-050A01 | Piston Assembly with 2m frit | ||
| AF0000-B05002 | Outlet Frit 2m | ||
| AS2002-050A03 | Spring Kit for packing pressures from 1000 to 2000psig | ||
| AS2002-050A07 | 1/16”o.d. 0.040”i.d. Connecting Tube and Fittings | ||
| AS2002-050A09 | 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | ||
| 101mm i.d. | |||
101mm i.d. x 40cm＋/p> Water-Jacketed |
SA4004-101040 | Base Column Parts Kit* 40cm long column for bed lengths up to 15cm | SC4004-101040 |
| ?2 x AS4004-101A06 | Piston Assembly with 2m frit | ||
| AS4004-101A03 | ?Spring Kit for packing pressures up to 2000psig | ||
| AS2002-050A08 | 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | ||
101mm i.d. x 70cm＋/p> Water-Jacketed |
SA4004-101070 | Base Column Parts Kit* 70cm long column for bed lengths up to 30cm | SC4004-101070 |
| 2 x AS4004-101A06 | Piston Assembly with 2m frit | ||
| AS4004-101A03 | Spring Kit for packing pressures up to 2000psig | ||
| AS2002-050A08s | 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | ||
SpringTM弹簧柱硬仵/span>有经验的弹簧柱用户可以根据自己的要求定制弹簧柱零件，组装一个完整的弹簧柱需要五个零件、/span>
弹簧柱零件：
| 柱尺寷/td> | 描述 | 货号 |
| 25mm i.d. | ||
| 1. Base Parts Kit | Non-Water-Jacketed Kit 40cm long for bed Iengths up to 15cm | SA2002-025040 |
| Water-Jacketed Kit 40cm Iong for bed Iengths up to 15cm | SA2002-W25040 | |
| Non-Water-Jacketed Kit 70cm Iong for bed lengths up to 30cm | SA2002-025070 | |
| Water-Jacketed Kit 70cm Iong，for bed Iengths up to 30cm | SA2002-W25070 | |
| 2. Piston Assembly | Piston Assembly with 1m frit | AS2002-025A01 |
| Piston Assembly with 2m frit | AS2002-025A09 | |
| Piston Assembly with 5m frit | AS2002-025A02 | |
| 3. Spring Kit | Spring Kit for packing pressures from 1000 to 2000psig | AS2002-025A03 |
| Spring Kit for packing pressures from 500 to 900psig | AS2002-025A04 | |
| Spring Kit for packing pressures up to 400psig | AS2002-025A05 | |
| 4. Outlet Frit | Outlet Frit 1m | AF0000-C02501 |
| Outlet Frit 2m | AF0000-C02502 | |
| 0utlet Frit 5m | AF0000-C02503 | |
| 5. Tubing and Connectors | 1/16”o.d. 0.020”i.d. Connecting Tube and Fittings | AS2002-025A06 |
| 1/16”o.d. 0.040”i.d. Connecting Tube and Fittings | AS2002-025A07 | |
| 50mm i.d. | ||
| 1. Base Parts Kit | Non-Water-Jacketed Kit 40cm Iong for bed Iengths up to 15cm | SA2002-050040 |
| Water-Jacketed Kit 40cm long．for bed Iengths up to 15cm | SA2002-W50040 | |
| Non-Water-Jacketed Kit 70cm Iong，for bed lengths up to 30cm | SA2002-050070 | |
| Water-Jacketed Kit?0cm Iong，for bed Iengths up to 30cm | SA2002-W50070 | |
| 2. Piston Assembly | Piston Assembly with 1m frit | AS2002-050A01 |
| Piston Assembly with 2m frit | AS2002-050A11 | |
| Piston Assembly with 5m frit | AS2002-050A02 | |
| 3. Spring Kit | Spring Kit for packing pressures from 1000 to 2000psig | AS2002-050A03 |
| Spring Kit for packing pressures from 500 to 900psig | AS2002-050A05 | |
| Spring Kit for packing pressures up to 400psig | AS2002-050A06 | |
| 4. Outlet Frit | Outlet Frit 1m | AF0000-B05001 |
| Outlet Frit 2m | AF0000-B05002 | |
| 0utlet Frit 5m | AF0000-B05003 | |
| 5. Tubing and Connectors | 1/16”o.d. 0.040”i.d. Connecting Tube and Fittings | AS2002-050A07 |
| 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | AS2002-050A08 | |
| 1/8”o.d. 0.085”i.d. Connecting Tube and Fittings | AS2002-050A09 | |
| 101mm i.d. | ||
| 1. Base Parts Kit | Non-Water-Jacketed Kit 40cm Iong for bed Iengths up to 15cm | SA4004-N10140 |
| Water-Jacketed Kit 40cm long for bed lengths up to 15cm | SA4004-101040 | |
| Non-Water-Jacketed Kit 70cm Iong for bed lengths up to 30cm | SA4004-N10170 | |
| Water-Jacketed Kit 70cm Iong for bed Iengths up to 30cm | SA4004-101070 | |
2. Piston Assembly (Need Qty?) |
Piston Assembly with 1m frit | AS4004-101A01 |
| Piston Assembly with 2m frit | AS4004-101A06 | |
| Piston Assembly with 5m frit | AS4004-101A02 | |
| 3. Spring Kit | Spring Kit for packing pressures from 1000 to 2000psig | AS4004-101A03 |
| Spring Kit for packing pressures from 500 to 900psig | AS4004-101A04 | |
| Spring Kit for packing pressures up to 400psig | AS4004-101A05 | |
| 4. Tubing and Connectors | 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | AS2002-050A08 |
| 1/8”o.d. 0.085”i.d. Connecting Tube and Fittings | AS2002-050A09 | |
上述套装和组合里的每个零件在第后面表格中都一一列出了、/p>
小贴?/span>
请选择正确的筛板尺寸以确保没有填料颗粒跐/span>出柱子而影响背压，请见下面的推荐、/span>
| 颗粒大小 | 推荐筛板孔隙 |
| <5um | 1um |
| 5-10um | 2um |
| >10um | 5um |
SpringTM弹簧柱重装套裄/strong>重装柱时，常见的2m?m孔径的筛板是和对应的的套装打包提供的 1m孔径的筛板是可以从下面的里/span>装零件表中订购、/span>
25mm?0mm内径弹簧柱的重装套装可满足三次重装，101mm内径弹簧柱的重装套装可满足一次重装、/span>
弹簧柱重装套裄/strong>
| 包括 | ||||
| 柱尺寷/td> | 数量 | 货号 | 描述 | 货号 |
| 25mm i.d. | ||||
| With 2m Frits | 3 | AF0000-C02502 | Outlet Frit 2m | AS2002-025A16 |
| 3 | AH0000-R025A1 | Outlet O-ring Set | ||
| 3 | AF0000-D02501 | Outlet Disperser Frit | ||
| 3 | AS2002-025A14 | Piston Frit Replacement Kit* 2m | ||
| With 5m Frits | 3 | AF0000-C02503 | 0utlet Frit 5m | AS2002-025A17 |
| 3 | AH0000-R025A1 | Outlet O-ring Set | ||
| 3 | AF0000-D02501 | Outlet Disperser Frit | ||
| 3 | AS2002-025A13 | Piston Frit Replacement Kit* 5m | ||
| 50mm i.d. | ||||
| With 2m Frits | 3 | AF0000-B05002 | Outlet Frit 2m | AS2002-050A18 |
| 3 | AH0000-R050A1 | Outlet O-ring Set | ||
| 3 | AF0000-D05001 | Outlet Disperser Frit | ||
| 3 | AS2002-050A16 | Piston Frit Replacement Kit* 2m | ||
| With 5m Frits | 3 | AF0000-B05003 | 0utlet Frit 5m | AS2002-050A19 |
| 3 | AH0000-R050A1 | Outlet O-ring Set | ||
| 3 | AF0000-D05001 | Outlet Disperser Frit | ||
| 3 | AS2002-050A15 | Piston Frit Replacement Kit* 5m | ||
| 101mm i.d. | ||||
| With 2m Frits | 2 | AS4004-101A18 | Piston Frit Replacement Kit* 2m | AS4004-101A20 |
| 2 | AS4004-101011 | Piston O-ring | ||
| 2 | AS4004-101012 | PTFE Sleeve | ||
| With 5m Frits | 2 | AS4004-101A17 | Piston Frit Replacement Kit* 5m | AS4004-101A21 |
| 2 | AS4004-101011 | Piston O-ring | ||
| 2 | AS4004-101012 | PTFE Sleeve | ||
*柱头重装套装的零件见下表
弹簧柱的替换零件
除了上表中的重装套装，每个单独的替换零件可以从下表中订购、/p>
SpringTMColumn Replacement Parts
| 描述 | For 25mm i.d. | For 50mm i.d. | For 101mm i.d. |
| Top Restraint | --- | --- | AS4004-101008 |
| Bottom Restraint | --- | --- | AS4004-101009 |
| Piston Top | ---- | --- | AS4004-101010 |
| Piston O-ring | AS2002-025011 | AS2002-050011 | AS4004-101011 |
| Guide Tube | AS2002-025013 | AS2002-050013 | AS4004-101013 |
| Column Body 40 cm Long Non-Water-Jacketed | FS2002-025040 | FS2002-050040 | AS4004-N10140 |
| Column Body 70 cm Long Non-Water-Jacketed | FS2002-025070 | FS2002-050070 | AS4004-N10170 |
| Column Body 40 cm Long Water-Jacketed | FS2002-W25040 | FS2002-W50040 | AS4004-101040 |
| Column Body 70 cm Long Water-Jacketed | FS2002-W25070 | FS2002-W50070 | AS4004-101070 |
| Outlet Dispemer Frit | AF0000-D02501 | AF0000-D05001 | --- |
| Outlet Frit 1m | AF0000-C02501 | AF0000-B05001 | --- |
| Outlet Frit 2m | AF0000-C02502 | AF0000-B05002 | --- |
| Outlet Frit 5m | AF0000-C02503 | AF0000-B05003 | --- |
| Outlet O-ring Set | AH0000-R025A1 | AH0000-R050A1 | --- |
| Replacement Bolts Nuts and Washem for Non-Water-Jacketed Column | AS2002-025A08 | AS2002-050A10 | --- |
| Replacement Bolts Nuts and Washem for Water-Jacketed Column | AS2002-025A11 | AS2002-050A13 | --- |
| Threaded Spacer for 40cm Long Column | AS2002-025000 | AS2002-050000 | AS4004-101000 |
| Threaded Spacer for 70cm Long Column | AS2002-025001 | AS2002-050001 | AS4004-101001 |
| Threaded Flange | AS2002-025002 | AS2002-050002 | AS4004-101002 |
| Packing Spacer | AS2002-025003 | AS2002-050003 | AS4004-101003 |
| Unpacking Spacer for 40cm Long Columns | AS2002-025004 | AS2002-050004 | AS4004-101004 |
| Unpacking Spacer for 70cm Long Columns | AS2002-025005 | AS2002-050005 | AS4004-101005 |
| Piston | AS2002-025007 | AS2002-050007 | AS4004-101007 |
| Piston Frit Replacement Kit(Piston O-ring 1m Double Density Frit PTFE Sleeve) 1m | AS2002-025A12 | AS2002-050A14 | AS4004-101A16 |
| Piston Frit Replacement Kit(Piston O-ring 2m Double Density Frit PTFE Sleeve) 2m | AS2002-025A14 | AS2002-050A16 | AS4004-101A18 |
| Piston Frit Replacement Kit(Piston O-ring 5m Double Density Frit PTFE Sleeve) 5m | AS2002-025A13 | AS2002-050A15 | AS4004-101A17 |
| PTFE Sleeve | AS2002-025010 | AS2002-050010 | AS4004-101012 |
