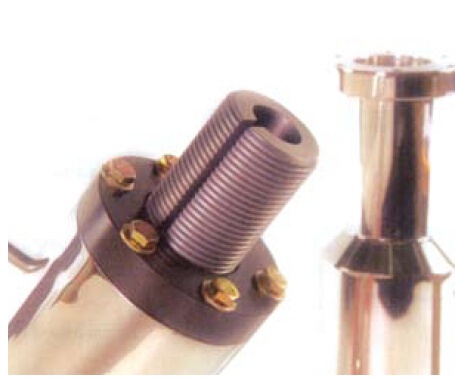

轴向SFC(超临界流体色?柱硬件和MultiPacker装柱机配套使?/p>
高效的装柱系绞/p>
可受?000psig，适用于SFC(超临界流体色?
用MultiPacker装柱机可轻松装柱格雷斯的轴向SFC柱是基于轴向弹簧压缩柱开发设计的。SFC柱可以在相同的MultiPacker装柱系统上轻松装填， 但设计时考虑了SFC的要求 密封系统也按特殊工艺生产的，?*可耐压?000psig。虽然也采用轴向加压的方式装柱，但由于SFC系统典型的高备压以及流动相的低粘度特性，柱头也不太可能出现塌陷，所以在SFC柱中不使用弹簧、/p>
| ?轴向SFC 柱硬件规 | |
| 内表面： | 电抛光型316不锈钢，PTFE |
| 柱身９/td> | 电抛光型316不锈钡/td> |
| 活塞９/td> | 电抛光型316不锈钡/td> |
| 螺纹锁定杆： | 6061铜/td> |
| 柱底板： | 抛光?16不锈 |
| 螺栓零件９/td> | 8级，适合压力容器?/td> |
| 筛板９/td> | 钝化烧结?16不锈钡/td> |
| 密封圈： | PTFE |
| 唇形密封: | Turcon |
| 受力环： | 铛/td> |
| 压力耐压 | 5000psig (345bar) |
| **耐热 | 135C (275F) |
SFC密封系统
轴向SFC柱的密封材料可以和SFC系统的超临界二氧化碳相兼容。密封系统可以在高达5000psig(345bar)压力下连续运行、/span>
活塞
一个PTFE材质的O形主密封圈和一个加弹簧皃/span>Turcon次密封圈保证了活塞的彻底密封、/span>
柱出叢/strong>
柱出口密封系统是由一个加弹簧的Turcon;密封圈和铜受力环共同构成、/span>
SFC柱硬件套裄/strong>
如下所示，用户可以用一个订单号订购标准?5mm?0mm内径的带水浴套SFC柱硬件套装，以下两页刖/span>出了每个套装的零仵/span>
Axial SFC Columns
包括 |
|||
| 柱尺寷/td> | 货号 | 描述 | 货号 |
| 25mm i.d. | |||
25mm i.d. x 40cm＋/p> Water-Jacketed |
AY2002-W25040 | Base Column Parts Kit* 40cm long column for bed lengths up to 15cm | SY2002-W25040 |
| AY2002-025A01 | Piston Assembly with 1m frit | ||
| AF0000-C02501 | Outlet Frit 1m | ||
| AS2002-025A07 | 1/16”o.d. 0.020”i.d. Connecting Tube and Fittings | ||
25mm i.d. x 70cm＋/p>Water-Jacketed |
AY2002-W25070 | Base Column Parts Kit* 70cm Iong column for bed Iengths up to 30cm | SY2002-W25070 |
| AY2002-025A01 | Piston Assembly with 1m frit | ||
| AF0000-C02501 | Outlet Frit 1m | ||
| AS2002-025A07 | 1/16”o.d. 0.020”i.d. Connecting Tube and Fittings | ||
| 50mm i.d. | |||
50mm i.d. x 40cm＋/p>Water-Jacketed |
AY2002-W50040 | Base Column Parts Kit* 40cm long column for bed lengths up to 15cm | SY2002-W50040 |
| AY2002-050A01 | Piston Assembly with 1m frit | ||
| AF0000-B05001 | Outlet Frit 1m | ||
| AS2002-050A07 | 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | ||
50mm i.d. x 70cm＋/p>Water-Jacketed |
AY2002-W50070 | Base Column Parts Kit* 70cm Iong column for bed Iengths up to 30cm | SY2002-W50070 |
| AY2002-050A01 | Piston Assembly with 1m frit | ||
| AF0000-B05001 | Outlet Frit 1m | ||
| AS2002-050A07 | 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | ||
更多信息
超临界流体色谱（SFC（/span>
1879?*次发现了超临界流体，二十世纪五十年代人们就利用超临界流体进行萃取应用。到二十世纪八十年代越来越多的人把超临界流体作为流动相应用到SFC中。SFC?常见的流动相是二氧化碳，因为趄/span>临界的二氧化碳对很多物质有很好的溶解度和很大的上样量。此外，超临界二氧化碳和其它超临界流体的粗/span>度很低，这使得快速分离和萃取成为可能。超临界流体的易挥发性使得收集的馏分可以在自然条件下的轻杽/span>浓缩、/span>
SFC今天已成为另一种高效液相色谱，亦或正相亦或反相，它是分析热不稳定中小分子的理想工具、/span>任何可溶于甲醇或更弱极性溶剂的分子都可以用SFC分析，很多很难用其它技术分离的强碱可以在SFC上快速高效的分离并有很好的峰形。因为其分离的高速度以及馏分收集的简单易行，SFC技术近来在药物研发咋/span>药物纯化领域的应用也越来越多、/span>SFC要求柱硬件和密封装置在高压下不泄漏。格雷斯公司的轴向SFC柱正是基于这种要求而设计的，此外采用已被广泛接受的轴向加压技术的装填技术可以得到更长的柱使用寿命、/span>
如何订购轴向SFC柰/strong>
轴向SFC柱可以订购一整套的柱硬件，见74页，?/span>户也以根据要求自己选购，如下所述。我?/span>目前提供两种规格的轴向SFC柱，40cm?0cm镾/span>度的两种?0 cm长的柱管可以*长装?5cm柱长的色谱柱?0cm长的柱管可以*长装?0cm柱长的色谱柱、/span>
每套完整的柱硬件有四个部件组成：
1 SpringTM弹簧柱基本套装包?
a. 轴向SFC柱管
b. 密封圈和O形环
c. 锁定装置
d. 柱尾法兰
e. 组装零件
f. 装柱垫块(70cm长柱管用)
2 活塞套装包括活塞、筛板、PTFE热缩膜和O形环，可以订购带1m?m筛板孔径的活塞套装、/span>
3 出口筛板。可选择1m?m筛板、/span>
4 管路连接。选择您需要的内外径的管路
有经验的轴向SFC柱用户可以根据需要选择零件自己来组装完整的轴向SFC柰/span>、/p>
Axial SFC Columns
| 包括 | ||
| 柱尺寷/td> | 描述 | 货号 |
| 25mm i.d. | ||
| 1. Base Parts Kit | Non-Water-Jacketed Axial SFC Column Kit 40cm long for bed lengths up to 15cm | AY2002-025040 |
| Water-Jacketed Axial SFC Column Kit 40cm long for bed lengths up to 15cm | AY2002-W25040 | |
| Non-Water-Jacketed Axial SFC Column Kit 70cm long for bed lengths up to 30cm | AY2002-025070 | |
| Water-Jacketed AxiaI SFC Column Kit 70cm Iong for bed Iengths up to 30cm | AY2002-W25070 | |
| 2. Piston Assembly | Piston Assembly with 1m frit | AY2002-025A01 |
| Piston Assembly with 5m frit | AY2002-025A02 | |
| 3. Outlet Frit | Outlet Frit 1m | AF0000-C02501 |
| Outlet Frit 5m | AF0000-C02503 | |
| 4. Tubing and Connectors | 1/16”o.d. 0.020”i.d. Connecting Tube and Fittings | AF2002-025A06 |
| 1/16”o.d. 0.040”i.d. Connecting Tube and Fittings | AF2002-025A07 | |
| 50mm i.d. | ||
| 1. Base Parts Kit | Non-Water-Jacketed Axial SFC Column Kit 40cm long for bed lengths up to 15cm | AY2002-050040 |
| Water-Jacketed AxiaI SFC Column Kit 40cm Iong for bed Iengths up to 15cm | AY2002-W50040 | |
| Non-Water-Jacketed AxiaI SFC Column Kit 70cm Iong for bed Iengths up to 30cm | AY2002-050070 | |
| Water-Jacketed AxiaI SFC Column Kit 70cm Iong for bed Iengths up to 30cm | AY2002-50070 | |
| 2. Piston Assembly | Piston Assembly with 1m frit | AY2002-050A01 |
| Piston Assembly with 5m frit | AY2002-050A02 | |
| 3. Outlet Frit | Outlet Frit 1m | AF0000-B05001 |
| Outlet Frit 5m | AF0000-B05003 | |
| 4. Tubing and Connectors | 1/16”o.d. 0.040”i.d. Connecting Tube and Fittings | AF2002-050A07 |
| 1/8”o.d. 0.060”i.d. Connecting Tube and Fittings | AF2002-050A08 | |
| 1/8”o.d. 0.085”i.d. Connecting Tube and Fittings | AF2002-050A09 | |
上述套装中的独立零件和零件组合清单，请见后面以及本页
SFC柱重装套裄/strong>
每个重装套装中含有可重装一次的易耗件、/span>
Repack Kit for SpringTM Columns
| 包括 | |||
| 柱尺寷/td> | 货号 | 描述 | 货号 |
| 25mm i.d. | |||
| With 1pm Frits | AF0000-C02501 | Outlet Frit 1m | AY2002-025A14 |
| AH0000-R025A2 | SeaI Ring Set for AxiaI SFC Column Outlet | ||
| AF0000-D02501 | Outlet Disperser Frit | ||
| AY2002-025A12 | Piston Frit Replacement Kit* 1m | ||
| With 5pm Frits | AF0000-C02503 | Outlet Frit 5m | AY2002-025A15 |
| AF0000-D02501 | Outlet Disperser Frit | ||
| AH0000-R025A2 | SeaI Ring Set for AxiaI SFC Column Outlet | ||
| AY2002-025A13 | Piston Frit Replacement Kit* 5m | ||
| 50mm i.d. | |||
| With 1pm Frits | AF0000-B05001 | Outlet Frit 1m | AY2002-050A12 |
| AH0000-R050A2 | Seal Ring Set for AxiaI SFC Column Outlet | ||
| AF0000-D05001 | Outlet Disperser Frit | ||
| AY2002-050A14 | Piston Frit Replacement Kit* 1m | ||
| With 5pm Frits | AF0000-B05003 | Outlet Frit 5m | AY2002-025A15 |
| AF0000-D05001 | Outlet Disperser Frit | ||
| AH0000-R050A2 | Seal Ring Set for AxiaI SFC Column Outlet | ||
| AY2002-050A15 | Piston Frit Replacement Kit* 5m | ||
SFC柱可更换的零仵/strong>
除了上述的SFC柱重装套装外，您还可以在下面的清单中订购每一个零仵/span>
SpringTMColumn Replacement Parts
| 描述 | For 25mm i.d－/td> | For 50mm i.d－/td> |
| 0utlet Disperser Frit | AF0000-D02501 | AF0000-D05001 |
| Outlet Frit 1m | AF0000-C02501 | AF0000-B05001 |
| Outlet Frit 5m | AF0000-C02503 | AF0000-B05003 |
| Seal Ring Set for Axial SFC Column Outlet | AH0000-R025A2 | AH0000-R050A2 |
| Replacement Bolts Nuts and Washers for Non-Water-Jacketed Column | AY2002-025A08 | AY2002-050A10 |
| Replacement Botls Nuts and Washers for Water-Jacketed Column | AY2002-025A11 | AY2002-050A13 |
| Threaded Spacer for 40cm Long Column | AS2002-025000 | AS2002-050000 |
| Threaded Spacer for 70cm Long Column | AS2002-025001 | AS2002-050001 |
| Threaded Flange | AS2002-025002 | AS2002-050002 |
| Packing Spacer | AS2002-025003 | AS2002-050003 |
| Unpacking Spacer for 70cm Long Columns | AS2002-025005 | AS2002-050005 |
| Piston | AY2002-025007 | AY2002-050007 |
| Piston Frit Replacement Kit 1m；Piston O-ring spring-loaded seal PTFE sleeve 1m Double-Density Frit | AY2002-025A12 | AY2002-050A14 |
| Piston Frit Replacement Kit 5m；Piston O-ring spring-loaded seal PTFE sleeve 5m Double-Density Frit | AY2002-025A13 | AY2002-050A15 |
| Piston SeaI for Axial SFC Column | AY2002-025011 | AY2002-050011 |
| PTFE Sleeve | AS2002-025010 | AS2002-050010 |
