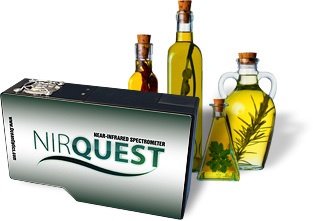

No matter what your work demands� NIRQuest has you covered. NIRQuest is the line of Near-Infrared Spectrometers that deliver superb performance� accuracy and reliability.

The NIRQuest series of spectrometers are small-footprint� near-infrared instruments with high-performance response that cover various ranges from 900-2500 nm. Thanks to their low-noise optoelectronics and a range of grating and bench options� NIRQuest spectrometers are ideal for demanding applications ranging from moisture detection and chemical analysis to high-resolution laser and optical fiber characterization.

What's more� NIRQuest spectrometers can be customized for a variety of applications by selecting different gratings� slits and optical bench accessories. [Optical Bench Options]

Make NIRQuest Your Own

512-element InGaAs array detector options covering 900-1700 nm and 900-2200 nm. 256-element options covering 900-2050 nm and 900-2500 nm

Wide range of grating and optical bench options to optimize your setup

External hardware triggering function for capturing data when an external event occurs; or to trigger an event after data acquisition

Meet the Lineup

Each NIRQuest spectrometer model is preset with optical bench and grating options appropriate for many NIR applications. However� we also offer a full range of slit� filter and grating options to optimize your setup for higher resolution needs or other similar performance requirements.

NIRQuest512

Perfect if you need best response at ~1600 nm and optical resolution of ~3.1 nm (FWHM)

NIRQuest512-2.2

If you require good response across 900-2200 nm without sacrificing optical resolution performance (~4.7 nm)

NIRQuest256-2.1

For good response at higher wavelengths (~1900 nm) and if high optical resolution (~8.0 nm) is not a major consideration

NIRQuest256-2.5

....... You require good response at higher wavelengths (peak response is at ~2200 nm) and if high optical resolution (~11.0 nm) is not a major factor

High-Resolution Custom NIR Options

Unlike most small-footprint NIR spectrometers� NIRQuest can be optimized for high resolution (<0.25 nm FWHM) analysis. This makes the system especially useful for characterizing lasers and optical fibers as well as analyzing atomic emission lines. Contact an Applications Scientist for help in customizing your NIRQuest configuration.

Calibration and Service

We offer two spectrometer wavelength calibration sources: The AR-1 Argon Source (696-1704 nm) and the XE-1 Xenon Source (916-1894 nm) Prices begin at under $500.

Add an Annual Service Package to your NIRQuest for only $800 and receive annual spectrometer wavelength recalibration and complete system maintenance.

Light Sources and Accessories

The LS-1 and HL-2000 Tungsten Halogen Light Sources are our best broadband light source options for your NIRQuest spectrometer.

Low OH content optical fibers and probes are optimized for response from 400-2100 nm. Look for assemblies with the VIS-NIR designation to ensure best performance with your NIRQuest.

The OF1-RG830 is an optional longpass filter that is installed in the optical bench and transmits signal >830 nm. The OF1-RG830 is most useful for NIRQuest512 applications where second-order effects may be a concern.

NIRQuest Standard Pricing

Note: Prices shown here are for the NIRQuest Spectrometer only (including USB cable and 5VDC power supply). Software� fibers and other accessories sold separately.

NIRQUEST512

NIR Spectrometer� 900-1700 nm� 512-element InGaAs array includes grating NIR3 (900-1700 nm) and SLIT-25

$15320

NIRQUEST512-2.2

NIR Spectrometer� 900-2200 nm� 512-element InGaAs array; includes grating NIR2 (900-2050 nm) and SLIT-25

$25800

NIRQUEST256-2.1

NIR Spectrometer� 900-2100 nm� 256-element InGaAs array; includes grating NIR2 (200-2050 nm) and SLIT-25

$21099

NIRQUEST256-2.5

NIR Spectrometer� 900-2500 nm� 256-element InGaAs array; includes grating NIR1 (900-2500 nm) and SLIT-25

$23405

Optional Items

OF1-RG830

Longpass Filter� installed� transmits >830 nm

$375

SPECTRASUITE

SpectraSuite Spectrometer Operating Software (Windows� OS X� Linux)

$199

ASP-NIR

One-Year Annual Service Package for NIRQuest Spectrometers� includes wavelength calibration and adjustment

$800
