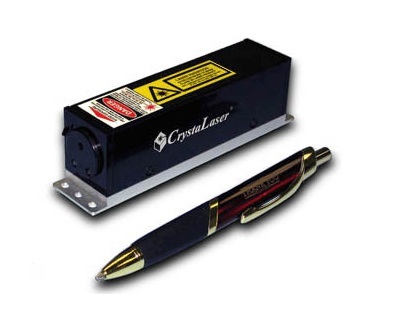

Q-Switched UV Laser |
|||||||
Wavelengths |
355 nm |
351 nm |
349 nm |
266 nm |
262 nm |
||
Max.average power at |
|||||||
optimal repetition rate* |
100 mW |
100 mW |
100 mW |
50 mW |
50 mW |
||
Max.Pulse energy* at 1 kHz rep.rate |
25 J |
50 J |
50 J |
15 J |
25 J |
||
Available average output power |
100 mW?0mW |
25 mW?0 mW |
50 mW?0 mW?0 mW 10 mW? mW |
||||
Pulse width |
Typically 10 - 15 ns varies from power and repetition rate 5 - 100 ns option available |
||||||
Repetition rate |
1 kHz to 100 kHz internal adjustable 0 Hz to 400 kHz by external trigger |
||||||
Beam divergence full angle |
3 - 4 mrad 2 - 6 mrad |
||||||
Beam diameter (1/e2) |
0.2 mm 0.15 x 0.3 mm |
||||||
Transverse beam mode |
TEMoo M2<1.3; Typically M2<1.1 for 349 351 and 355 nm; Elliptical beam for 262 and 266 nm |
||||||
Longitudinal mode |
Multiple longitudinal modes; Narrow linewidth with long coherence length option available |
||||||
Power stability rms |
5% after warm-up |
||||||
Beam pointing stability |
< 0.02 mrad at constant temperature |
||||||
Polarization |
Linear; Ratio 100:1 |
