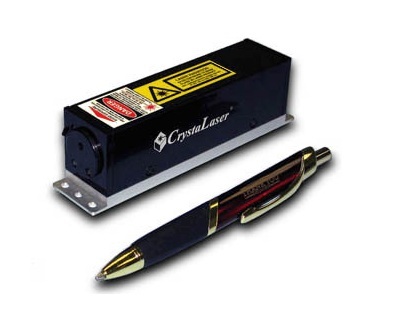

Q-Switched Infrared Lasers

Wavelengths

1064 nm

1053 nm

1047 nm

946� 1122� 1313� 1319� 1338� 1342� and 1444 nm available

Max. average power

2000mW

2000mW

2000mW

Max.pulse energy*at 1kHz

0.32mJ

0.60mJ

0.60mJ

Available average power(mW)

2000�?500＋�/span>

1000�?00＋�/span>

200� 100 (higher average powers available� contact us for details)

Pulse width

Typically 15 - 30 ns� varies from power and repetition rate� 7 - 100 ns option available

Repetition rate

1 kHz to 100 kHz internal adjustable� 0 Hz to 500 kHz by external trigger

Transverse beam mode

TEMoo� M²< 1.2� typical M²< 1.1

Beam diameter (1/e2)

0.5 mm

Beam divergence� full angle

3 - 4 mrad

Longitudinal mode

Single longitudinal mode with long coherence length option available

Power stability� rms

3% after warm-up

Beam pointing stability

< 0.02 mrad at constant temperature

Polarization

Linear; Ratio 100:1

Notes: Laser output power and pulse energy can be optimized to a custom repetition rate upon request.

Contact us for higher power Q-switched lasers.
