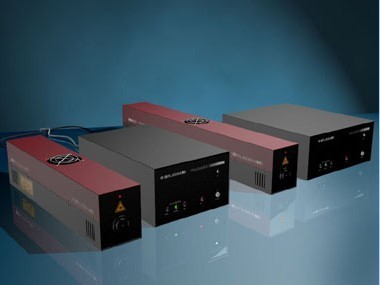

氦镉激光器
产品简今/div>
Types of the Offered He-Cd Lasers
- Laser with simultaneous generation on 2 wavelengths has the power of linear-polarized emission from 5 to 20 mW at wavelength 325 nm and from 35 to 100 mW at wavelength 441.6 nm.
- Laser with generation at 1 wavelength 0.44 ?m has power of linear-polarized emission 60 150 mW.
- Laser with generation at 1 wavelength 0.32 ?m has emission power in the range 10 35 mW.
| Model | Wavelength nm | Power mW | Spectral structure | Polarization | Downloads | |
| HCCL-4UM | 325 | 6 | TEMmn | 1:1 | ||
| HCL-10U | 325 | 10 | TEMoo | 100:1 | ||
| HCCL-8UM(I) | 325 | 12 | TEMmn | 1:1 | ||
| HCCL-15UM | 325 | 15 | TEMmn | 1:1 | ||
| HCCL-30UM(I) | 325 | 25 | TEMmn | 1:1 | ||
| HCL-30UM(I)P | 325 | 30 | TEMmn | 100:1 | ||
| HCL-30UM(I) | 325 | 35 | TEMmn | 1:1 | ||
| HCL-100U(I) | 325 | 30 | TEMoo | 100:1 |
| Model | Wavelength nm | Power mW | Spectral structure | Polarization | Downloads | |
| HCCL-10V | 442 | 10 | TEMoo | 100:1 | ||
| HCCL-20V | 442 | 20 | TEMmn | 1:1 | ||
| HCCL-25V | 442 | 25 | TEMoo | 100:1 | ||
| HCL-50V | 442 | 60 | TEMoo | 100:1 | ||
| HCL-60V(I) | 442 | 80 | TEMoo | 100:1 | ||
| HCL-70VM(I) | 442 | 100 | TEMmn | 1:1 | ||
| HCL-100V | 442 | 100 | TEMoo | 100:1 | ||
| HCL-100V(I) | 442 | 150 | TEMoo | 100:1 |
Double line (325/442-nm) lasers
| Model | Wavelength nm | Power mW | Spectral structure | Polarization | Downloads | |
| HCL-40 | 325/442 | 5/35 | TEMoo/TEMoo | 100:1 | ||
| HCL-40 | 325/442 | 10/40 | TEMmn/TEMoo | 100:1 | ||
| HCL-40(I) | 325/442 | 15/50 | TEMmn/TEMoo | 100:1 | ||
| HCL-100(I) | 325/442 | 30/100 | TEMmn/TEMoo | 100:1 |
