运行参数/Operating Parameters

介质：氧化锆，硅酸锆0.4-1.6mm＋�/p>

填充量（80%）约480kg

产量（浆料流量）�?00-1500L/h / 1000-3000L/h

*终细度：0.2-1.0um

◆Medium: zirconium oxide, zirconium silicate 0.4-1.6mm,

Filling amount: (80%) of approximately 480kg

◆production (slurry flow) :500-1500L / h / 1000-3000L / h

◆Final fineness :0.2-1.0um

技术数�?Technical Data

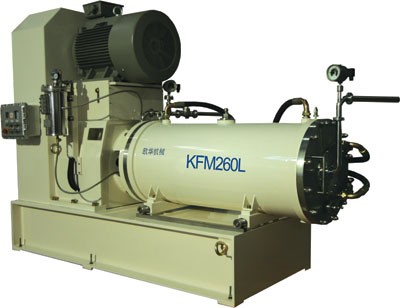

型号/Model KFM-260/1000L

电机功率/Motor Power 75kw Exe dII BT4

研磨桶容�?Grinding Bucket Capacity 268L

研磨盘速度/Grinding Disk Speed 10.0-11.5m/s

研磨�?Grinding Bucket 304镀硬铬/PU 304 Hard Chrome

分散�?Dispersing Disk 高耐磨钨合金钢/High Wear-resistant Tungsten Alloy

研磨桶进出料端盖 304不锈钢经特殊处理/PU

Material Accessing Cover of Grinding Bucket 304 Stainless Steel with a Special Treatment

分离介质/Separation Medium 动态分离DDC结构/Dynamic Separation DDC Structure

分离筛网/Separation Sieve 304渗硼处理，间�?.15-0.4mm

304 Boronizing Processing, Clearance 0.15-0.4mm

生产厂家：株洲市欧华化工机械有限公司
