技术参数:
? 技术参?/p>
Scan modules Measuring range in x,y-direction [mm] Resolution in x,y-direction [mm] Positioning range in z-direction [mm] Max. measuring speed [mm/s]
SC 50 50X50 0.5 100 50
SC 100 100x100 0.5 100 50
SC 150 150x150 0.5 100 50
SC 200 200x200 0.5 100 50
other dimensions on request
Sensors Resolution z [m] Resolution x,y [m] Working distance [mm] Measuring range in z-direction [mm] Camera (optional)
Confocal point sensor CF 4 0.02 1 4 1.0 off-axis
CF 13 0.02 1 13 1.0 (BMT5)
Autofocus sensor AF 2 0.025/0.0111) 1 2 1.5/0.651) integrated
AF 5 0.025/0.0111) 1 5 1.5/0.651) (BMT3)
Chromatic white light sensor CRT 52) 0.010 4 5 0.3 off-axis (BMT5)
CRT 122) 0.025 4 12 1.0
CRT 162) 0.075 8 16 3.0
Holographic sensor CP 15 3.0 12 12 1.8 integrated
(BMT 4)
CP 42 6.0 15 42 8.0
CP 65 10.0 25 65 18.0
1) with restricted measuring range 2) with 1 4 or 30 kHz measuring frequency available
Modules
System controller High performance industrial PC DVD-Writer network card+/p>
Windows XP Professional
Cabinet and work table MT 70 Stable container for electronic modules with work table
1550x800x750 (lxwxh in mm)
Granite measuring stand MP 100 Portal construction 660x450x497 (lxwxh in mm) for SC 50 to SC 150
Granite measuring stand MP 200 Portal construction 680x480x385 (lxwxh in mm) from SC 200
NF soft standard software NanoFocus control and evaluation software profile and topography
representation roughness calculation compliant with DIN EN ISO
Options
NF 3D-Plus Photo-realistic 3D presentation of topographical data (OpenGL)
NF Active X Interface modules to program individual measurement processes and
calculations (Excel/VBA)
NF Hybridmaster Automation tool for the use of scan? in thick film production incl. SPC and
teach in module
NF Flatmaster Automated measurement of straightness flatness and warpage
NF Solder Automated off-line measurement of fine pitch solderpaste print in SMT production
NF AutoScan Automated measurement of profiles and surfaces at arbitrary measurement
points
主要特点9/strong>

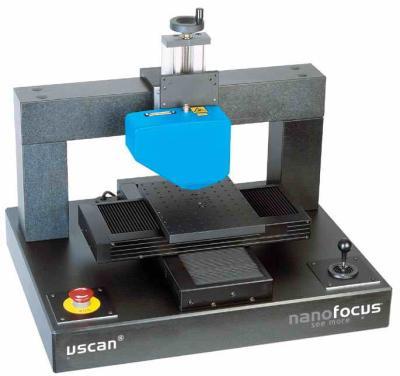

Scan采用模块化设计,特点是快速测量、不接触、不破坏、自动化
Scan的中心部件扫描模?x/y方向样品扫描)可以和不同的传感?/p>
(Z方向测量)连用,如Confocal point sensor、Autofocus sensor?/p>
Chromatic white light sensor、Holographic sensor等、/p>
AF2 自动对焦(Autofocus)
借由探测器的回馈讯号调整物镜位置,得到待测物焦点,而获得待测物的确实高?/p>
CF4 共轭焦(Confocal Laser)
激光光束经由物镜迅速上下移动聚焦于待测物上,此时偵测器能经由孔洞得?*光的强度,如此侦测器根据此讯号确定其位置
? 应用
? 集成电路封装和表面贴片技?/p>
? 厚膜混合电路:膜厚度的自动化测野/p>
? 精密部件
