MC系列颚式破碎机的主要特性：MACKORN MC系列颚式破碎机均采用创新的模块化、无焊接框架结构，因而赋予设夆�/span>很好的抗疲劳性、很奼�/span>的可靠性和多种安装方式。得益于精确平衡的整体结构，MC系列颚式破碎机安装简便且经济。配合使用特殊的优质铸钢组件和耐久的磨损部件，赋予�?*的适用性、杰出的经济性和较低的吨运行成本
The MACKORN MC Series crushers are based on a revolutionary modular,non-welded frame construction,offering owners the highest possible fatigue styrength,excellent reliability and numerous monting possibilities,Thanks to the accurately balanced structure,the MC Series jaws are easy and economical to install.Combined with special high-quality cast steel componets and durable wear parts,means exceptionally high crusher avalilability,cost-efficient crushing and low cost per ton.

高质量和可靠�?/strong> ***的工艺和材料 模块式、无焊接结构 比同级别破碎机的轴承更大，四个轴承规格相吋�br/> 铸钢动颚体和前后墙体 整体铸钢轴承�?br/> 可修复的破碎机机枵�br/> 性能优秀 恰到好处的破碎腔设计 大冲程，**转速和高功玆�br/> 小排料口设计 多种齿板和边护板适用各种应用

使用和安装成本低 易于实现自动匕�br/> 快速而安全的双锲块排料口调整系统 保护板安装在颚板后面 橡胶块安裄�br/> 一体化的机电底�?br/> 飞轮保护罩结构紧凑，便于维修 定制的给料槽 自动油脂润滑 应用广泛的固定和移动设备 石料 矿山(井上和井�? 废物回收(混凝土，沥青�? 工业(矿渣，阳极等)

High quality and reliability word-class craftsmanship and material Modular,non welded construction Four equal size bearings that larger than those of most crusher of comparable size Cast steel pitman and crusher frames Single-piece cast steel frame bearing housings Repair crusher construction Outstanding performance Efficient cavity designs Long stroke,optimum speed Small allowed crusher settings The Right jaws and cheek plates for the widest range of applications

Low operating and installation costs Easy to automate Fast and safe wedge setting adjustments system Protection plates behind the jaw plates Rmper crusher mounting Versatile integral motor base Compact and service friendly flywheel guards Custom feed chute Automatic grease lubrication system Used in a wide range of applications,both stationary and mobile Aggregate Minling(surface and underground) Recycling(concrete,asphalt,etc) Industrial(slag,anodes,etc)

技术数�?/strong>

		MC80	MC96	MC100	MC110	MC125	MC140	MC145	MC160	MC200
给料口宽�?MM) Feed opening width		800	930	1000	1100	1250	1400	1400	1600	2000
给料深度(mm) Feed opening depth		510	580	760	850	950	1070	1100	1200	1500
电机功率(Kw) Power		75	90	110	160	160	200	200	250	400
转�?rpm) speed		350	330	260	230	200	220	220	220	200
产品尺寸(mm) Porduct size	紧边排料�?MM) Closed size setting	�?小时 T/H	�?小时 T/H	�?小时 T/H	�?小时 T/H	�?小时 T/H	�?小时 T/H	�?小时 T/H	�?小时 T/H	�?小时 T/H
0-30	20
0-35	25
0-45	30
0-60	40	65-85
0-75	50	80-95
0-90	60	95-125	120-155
0-105	70	115-150	140-180	150-210	190-250
0-120	80	130-170	160-210	170-225	210-275
0-135	90	150-195	180-235	190-245	235-305
0-150	100	165-215	200-260	215-280	255-330	290-380
0-185	125	210-275	250-325	265-345	310-405	350-455	380-500	400-520
0-225	150	250-325	300-390	315-410	370-480	410-535	455-590	470-610	520-675
0-260	175	290-380	350-455	370-480	425-550	470-610	520-675	540-700	595-775	760-990
0-300	200			420-545	480-625	530-690	590-765	610-795	675-880	855-1110
0-340	225					590-770	655-850	680-885	750-975	945-1230
0-375	250					650-845	725-945	750-975	825-1070	1040-1350
0-410	275							820-1070	900-1170	1130-1470
0-450	300								980-1275	1225-1590

注：该数据根据当地使用情况采集获得、�br/> 根据用途和生产要求，通常可以采用小的紧边排料口生产。欲了解破碎机在具体应用中的性能，请与美矿工程师联系、�br/> 以上数据所表示的破碎机产量，是针对平均比重�?.7t/M3，给 料能够顺利进入破碎腔、无架桥卡堵现象，给料剔除小于排矿口细料时取小值，含细料是取大值。产量可能随给料方式和物料性质诸如粒度组成、含水泥量、松散密度和可碎性而变化、�br/> 破碎机紧边排料口的检测方式随所用颚板齿型的变化有所不同。它将对破碎机的能力和产品粒度产生影响。以下因素可提高破碎机的能力和性能９�br/> 1.适当的颚板选择 2.适当的给料极酌�br/> 3.可控的给料量 4.足够的给料机能力和给料宽�?br/> 5.充分的破碎机排料匹�br/> 6.排料皮带机与破碎�?*能力相匹酌�/p>

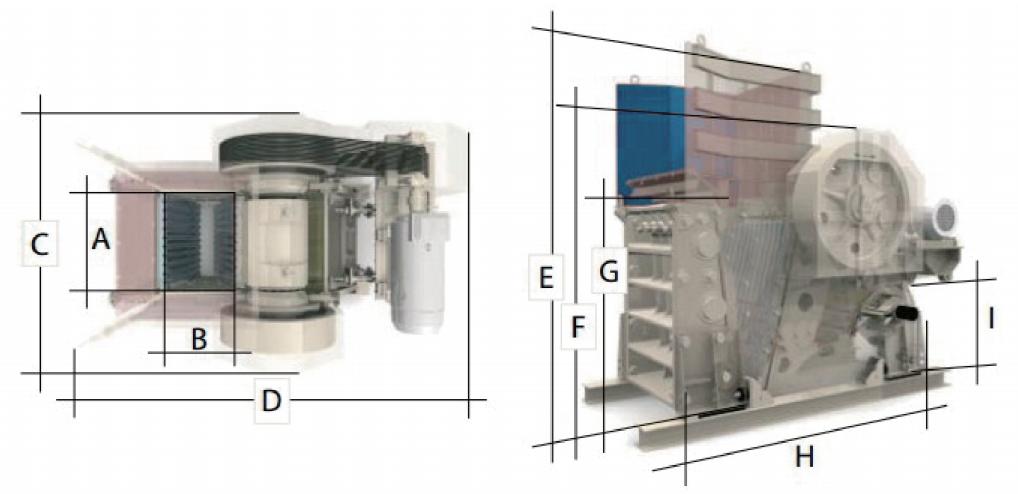

		MC80	MC96	MC100	MC110	MC125	MC140	MC145	MC160	MC200
A	mm	800	930	1000	1100	1250	1400	1400	1600	2000
B	mm	510	580	760	850	950	1070	1100	1200	1500
C	mm	1526	1755	2420	2385	2800	3010	3110	3700	4040
D	mm	2577	2880	3670	3770	4100	4400	4600	5900	6700
D	mm	1990	1610	2890	2890	3440	3950	4100	4580	4950
F	mm	1750	1460	2490	2750	2980	3140	3410	3750	4465
G	mm	1200	755	1700	1940	2100	2260	2430	2650	2800
H	mm	2100	2500	2965	2820	3470	3755	2855	4280	4870
I	mm	625	465	775	580	980	1050	1050	1300	1400
破碎机自里�br/> Basic crusher weight	Kg	7670	9759	20060	25800	37970	47120	54540	7130	121510
破碎机总重 Total weight	Kg	9520	11870	23300	29500	43910	54010	63190	83300	137160
