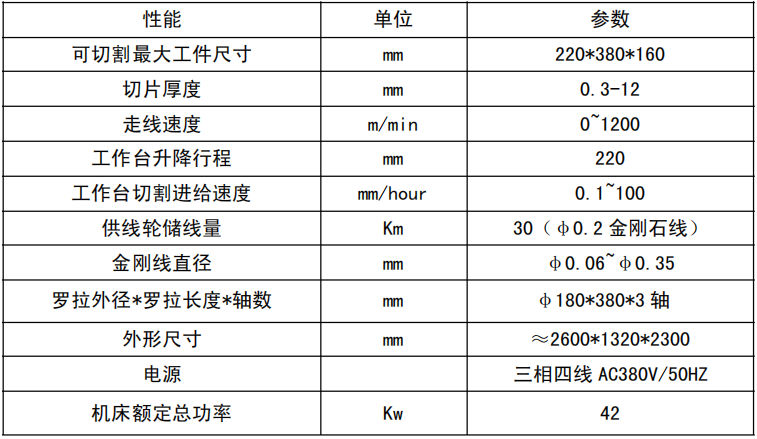

技术参� Main Specifications

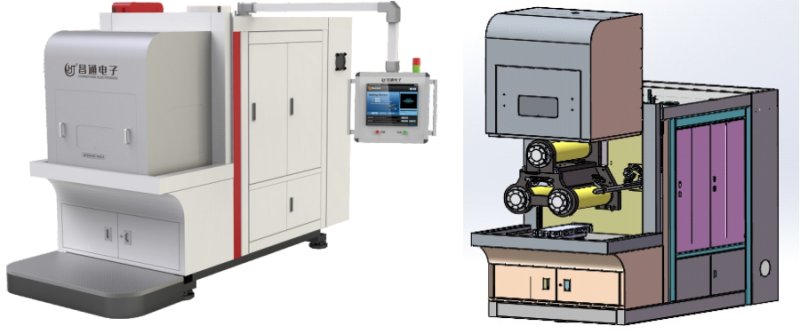

CHTXQ-380多线切割朹�/span>设备用途：本机型共三罗拉，罗拉厂度�?80mm，用于切割厚�?.3-12mm的产品、�/span>

Equipment use: This model has three rollers, the length of the roller is 380mm, used for cutting products with a thickness of 0.3-

12mm.

CHTXQ-380多线切割朹�/span>技术特� Brief Introduction

1、铸件机身，使整体结构不变形，高速运转更稳定、�/span>

2、主轴精�?.01mm，拆装方便、�/span>

3、下置式工作台，材料由下向上上升切割，上下料方便、�/span>

4、三电机直连三罗拉，使三罗拉都成为主动轴，降低钢线对罗拉的磨损，提高罗拉的使用时间、�/span>

5、装载面积为�?0mm*380mm、�/span>

6、操作使用方便，自动升降护罩，工作台全面展开，便于材料装卸和罗拉拆装

7、高效低耗，设备不需要气源，整机耗电功率低、�/span>

1, the casting body, so that the overall structure is not deformed, high-speed operation is more stable.

2, spindle precision 0.01mm, easy to disassemble.

3, under the table, the material from the bottom up to cut, loading and unloading convenient.

4, the three motor is directly connected to the three rollers, so that the three rollers become the drive shaft, reduce the wear of the steel wire to the roller, and improve the use time of the roller.

5,the loading area is: 220mm*380mm .

6,easytooperate,automaticliftingshield,theworkbenchisfully expanded, easy to load and unload materials and roll.

7, high efficiency and low consumption, the equipment does not need air source, and the whole machine consumes low power.
