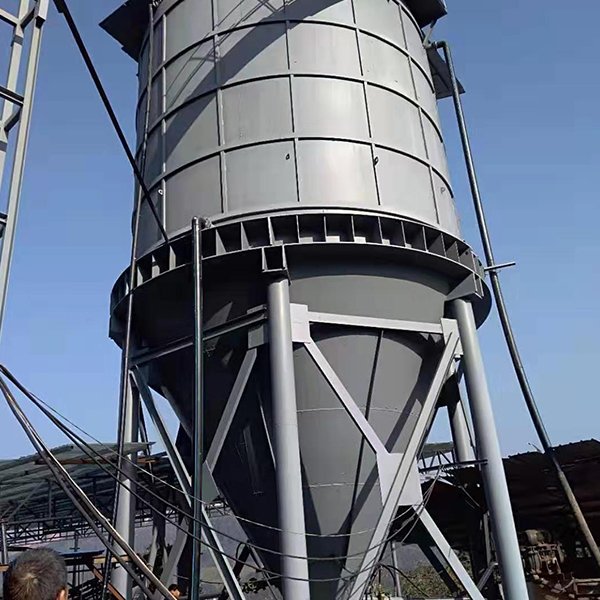

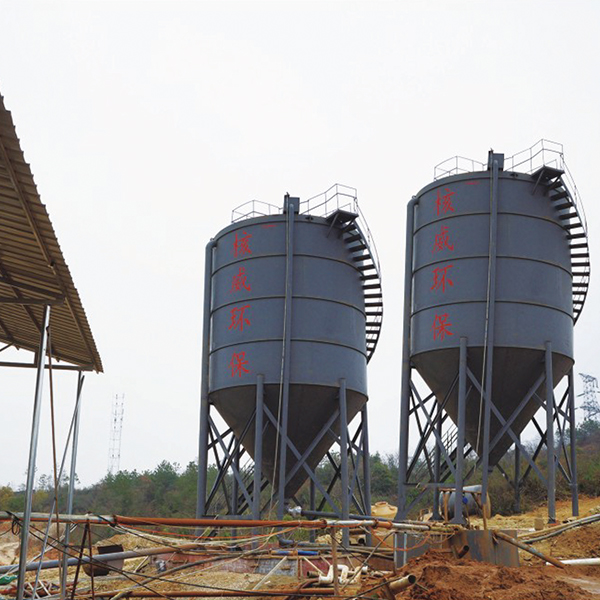

高效深锥浓缩朹�/h1>

产品详情

高效深锥浓缩机工作原琅�/span>
主要特点
处理量大，单台处理量**可以处理1000方污水每小时，底部外排固体浓度高、运行费用低，占地面积小，投资省，节电，运行费用低，操作简单，管理方便。溢流水的质量能轻松达到国家排放标准或中水回用标准。因此它非常受各大型矿山，洗砂场客户的青睐、�/span>
Working principle of high efficiency deep cone thickener
Features
Large production capacity, the maximum production capacity of a single unit can be 1000 cubic meters of sewage per hour. Bottom discharged with high solid concentration, low operation cost, the floor area is small, low investment, energy conservation, easy operation, and the management is convenient. The quality of overflow water can easily meet the national discharge standard or reclaimed water reuse standard. Therefore, it is very popular with customers of large mines and sand washing fields.

型号Model	直径Diameter（mm（�/span>	罐身Tank Body（mm（�/span>	锥高Cone Height（mm（�/span>	总高Total Height（mm（�/span>	容量Volume（m³（�/span>
GSN3000	3000	9000	2390	12530	70
GSN3800	3800	7500	3074	12574	97
GSN5700	5700	7500	4676	14176	231
GSN7600	7600	6000	6321	14321	368
GSN9500	9500	4500	7880	14380	505

洗砂污水处理工艺流程
文字说明
洗砂机排出来的污水通过1号排水管进入泥水中转池，由渣浆泵通过2号泥水输送管抽至浓缩罐，泥浆水进入浓缩罐的同时，3号进药管也把药剂抽至浓缩罐使泥水与药剂混合，泥水与药剂混合反应后泥浆就快速沉淀，清水溢流通过4号排水管排进清水池以备回用，可用于清洗设备与洗砂或排放，5号排水管排清水进药剂池用于溶解药剂�?号排泥管通过浓缩罐底部阀门控制把沉淀浓缩好的泥浆排进压滤机，并同时通过7号药剂管把药剂抽到管道混合器进行絮凝后，进行压滤脱水�?后脱水后的泥饼通过输送带送至泥饼堆场进行堆放或装车外运，8号清洗水管是用来清洗滤带，压滤机压出来的水与清洗滤带的水通过设备地基进行收集，再通过9号水管排到泥水中转池进行余药利用再一起把泥水抽至浓缩罐进行泥水分离。泥浆沉淀清水排出，以此循环。洗砂污水零排放，清水回用，泥饼回填或外运、�/span>
Sand washing sewage treatment process
Description
The sewage discharged from the sand washing machine through the No.1 drain pipe to the mud water transfer tank, and pumped to the concentration tank through the No.2 pipe by the slurry pump. At the same time, the No.3 feed pipe also pumps the chemical to the concentration tank to mix the mud water and the chemical. After the mud water and the agent mix reaction, the mud quickly settles. The clear water overflows into the clean water tank through the No.4 drain pipe for reuse, it is for cleaning equipment and sand washing or discharge, No. 5 drain pipe discharges clear water into the tank for dissolving chemicals. No.6 mud discharge pipe is used to discharge the settled and concentrated mud into the filter press through the control of the valve at the bottom of the concentration tank, and at the same time, the chemical is pumped to the pipeline mixer through No.7 pipe for flocculation,then to the equipment for dehydration. Finally, the filter cake is sent to the storge yard through the conveyor belt for stacking or loading and transportation. No.8 water pipe is used to clean the filter belt, The water from the filter press and the water for cleaning the filter belt are collected through the equipment foundation, and then discharged to the mud water transfer tank through the No.9 Water Pipe for the use of residual chemicals, and then the mud water is pumped to the concentration tank for mud water separation. The mud settles and clear water is discharged to circulate. Zero discharge of sand washing sewage, reuse of clean water, filter cake shall be backfilled or loading out.

以上是关于Tags:高效深锥浓缩机厂家，高效深锥浓缩机价格，高效深锥浓缩机哪家好的详细介绌�br/>地区产品� 湖北高效深锥浓缩机，江西高效深锥浓缩机，云南高效深锥浓缩机，四川高效深锥浓缩机，广东高效深锥浓缩机，湖南高效深锥浓缩机，福建高效深锥浓缩机，安徽高效深锥浓缩机，河南高效深锥浓缩机，内蒙古高效深锥浓缩机、�/p>
