The CAMSIZER P4 particle analyzer has been developed to comprehensively characterize dry, free flowing bulk materials. Whereas traditional sieve analysis, for example, can only determine the approximate particle size, the CAMSIZER P4 simultaneously measures both particle size and shape � with much more detail and at a higher resolution.

The particle analyzer is atime and cost-savingalternative whenever continuous quality control of the production process is required. It is also suitable for checking incoming and outgoing goods and generally for measurements of a wide range of different sample materials.

Smooth changeover from sieve analysisto CAMSIZER® P4 is easily possible with algorithms for emulating sieve analysis.

The CAMSIZER P4 reliablyanalyzes all size and shape parametersof a great variety of bulk materials and granulates including spherical and irregularly shaped grains and crystals, spray-dried and fluid bed granular materials, pellets and extrudates.

Thanks to the robust construction and a measuring technique that is not sensitive to disturbances, the particle analyzer is alsosuitable for operation under challenging industrial conditions.

In combination with theoptional AutoSamplerefficiency can be increased by high sample throughput due to the automated sample measurement. The particle analyzer is available as anonline versionfor the continuous monitoring of critical production processes.

应用实例

food granulates, pesticides, pharmaceutical pellets, plastic granulates, proppants, salt, silicon granulates, wood chips, 催化�? 化学制品, 咖啡, 建筑原料, 沙子, 洗衣�? 焦炭, �? 玻璃, 研磨�? �? 肥料, 金属粉末, 陶瓷, ...

优点

• Hardware

• Wide size range from 20 µm to 30 mm

• Full size range measured simultaneously in each measurement

• Excellent comparability to sieve analysis, also for multimodal distributions

• 测量时间�?nbsp;(2-3 min.)

• 2 CCD cameras with 30 fps and 1.3 Mpixel each

• Pulsed LED lightsource with high brightness and long lifetime

• Software

• Optimized, intuitive software

• 一次测量，可同时得到粒度，粒型，颗粒数，密度和透明度等信息

• Particle Library function: database for images and characteristics of all particles

• 3D Cloud representation of size and morphology parameters in 3 dimensions

• Advanced shape parameters for roundness and sphericity (ISO13503-2 and API RP 56/58/60)

• Several language versions (English, French, Spanish, Chinese, Russian, German, and many other languages)

• General

• Detailed particle size analysis - results are saved in more than 3,000 size classes

• 测量准确度高，具有可重复�?/p>

• 非接触，无损测试

• 校正快捷方便

• 操作简单易�?/p>

• Password protected instrument settings

• 支持自动测量操作

• 设计稳健，可耐受灰尘和不稳定环境

• 自洁，耐耗，无需维护

• 比传统筛分省时省劚�/p>

性能指标

作用原理

The particle analyzer CAMSIZER P4 uses the principle ofdynamic image analysis(ISO 13322-2). The sample is transported to the measurement field via a vibratory feeder where the particles drop between a planar light source and two CCD cameras.The projected particle shadows are recorded at a rate of more than 60 images per second and analyzed.In this way almost every single particle in the bulk material flow is recorded and evaluated. Thus, it is possible to measure a wide range of particles from 20 µm to 30 mm extremely accurately, without having to switch measuring ranges or make adjustments.

Thanks to its extremely short exposure times, the novel LED strobe light source allows very sharp images to be produced and distortion-free determination of the projection areas. The sharp contrast allows, at the same time, details of the surface structure of the particles to be seen almost like through a microscope. The frequency of the light flashes is so high that the strobing is not visible to the naked eye.

With theunique, patented dual-camera systema great depth of sharpness, and therefore maximum precision across the entire measuring range, is obtained with the particle analyzer. The zoom camera provides maximum resolution down to the fine range, while the basic camera also records larger particles and guarantees a high statistical certainty in the results. This ensures the excellent reproducibility of the CAMSIZER measuring results, even if only a relatively small sample amount is available.The results are saved in at least 3,000 size classes.

根据技术改造和误差调整

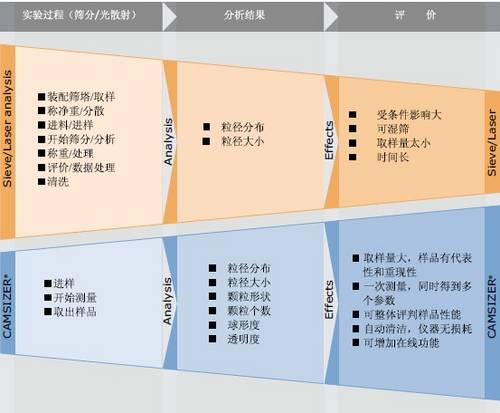

CAMSIZER^®对比筛分和光散射技术—更精确，更全面
