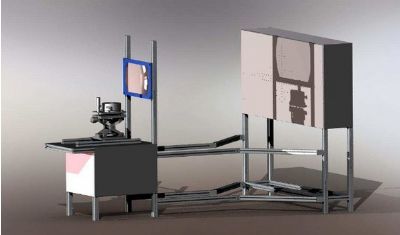

Multicells headlight reduce photometric bench allows measurement and qualifying

examination of headlight product according to different standards (SAE� ECE� Japan) on 1.5

meter distance through lens.

It can measure different types of headlight: cars� motorbikes＋�/p>

trucks.

主要特点

- Measurement range : 450 lux maxi.

- Number of points measured: until 200 points (chosen by customer).

- Measurement precision: 0.01 lux on all measurement range.

- Measurement frequency: 10 measurement per second.

- Coefficients used for measurements depend on measured headlight’s color and

power: cristal� LAD� ambre� LED.

系统架构

? Tilt platform allowing cut off setting

? 1 power supply

? Configuration of cell’s number

? Measurement with different color’s coefficients available.

? Equipment is controlled by ALPES software

软件

- Complete management of measurement thank to a simplified interface.

- Creation/edition interface of personalized standard.

- Management of headlight power supplies.

- Output format Excel file� text file� IES file (isolux).

- Cells calibration functions by dedicated software.

系统技术参�?/h2>

系统配置和订购信�?/h2>

MES_L_128	MES_L with 128 cells with manual vertical stage
MES_L_128MV	MES_L with 128 cells with motorized vertical
MES_L_128MRV	MES_L with 128 cells with motorized rotating stage and vertical stage
