It can measure different types of headlight: cars� motorbikes� trucks.

主要特点:

- Number of points measured: until 31 points.

- Measurement precision : 0.1 candela on all measurement range.

- Measurement frequency : 10 measurement per second.

- Coefficient used for measurement depend on measured rearlight’s color and

power : cristal� LAD� ambre� LED.

系统架构

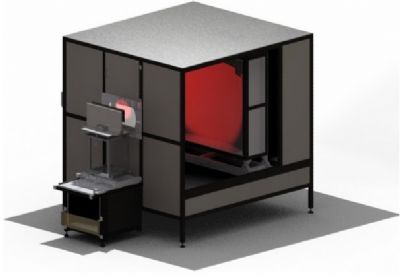

? Enclosed bench avoiding straight light.

? 1 power supply.

? Configuration of cell’s number.

? Measurement with different color’s coefficients available.

? Equipment is controlled by ALPES software

ALPES 软件

? Creation/edition of personalized standards.

? Management of power supplies.

? Output format (.xls� .ies� .txt).

? Cells calibration.

技术参�?/h2>

Measurement cells	31� up to 62 cells
Photometric range	0�?1 to 1500 Candela
Photometric resolution	0�?1 Candela
Display frequency	1 measurement/second
Measurement mode	3 modes (continuous� PWM� blinking)
Power Supply	1 power supplies 25V/7A
Size	Height : 1�?0 m Width : 1�?0 m Lenght : 2�?0 m
Power requirements	230V/50Hz/10A� 110V/60 Hz/10A
PC information	Processor : DualCore 2.7 GHz RAM : 2 Go
Software:	ALPES� Pack Office

订购信息

MES_S_31 MES_S with 31 cells with manual vertical stage

MES_S_31MV MES_S with 31 cells with motorized vertical

MES_S_31MRV MES_S with 31 cells with motorized rotating stage and vertical stage
