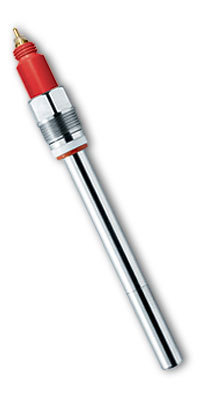

InPro 6900(i)痕量极谱法氧气传感器
InPro 6900(i)痕量极谱法氧气传感器的图?/></a></div></div></div> <div class=
参考报价：
面议
品牌９/dt>
关注度：
830
样本９/dt>
暂无
型号９/dt>
产地９/dt>
瑞士
信息完整度：
典型用户９/dt>
暂无
索取资料及报件/a>
认证信息
高级会员 2平/div> 称： 北京联博永通科技有限公司（美国通用toc,瑞士梅特勒－托利多授权经销商）
证：工商信息已核宝br /> 访问量：60272
手机网站
扫一扫，手机访问更轻杽/div>
产品分类
产品简今/div>

Accuracy at low oxygen level.

METTLER TOLEDO’s InPro6900i is the intelligent counterpart for the InPro6900 the proven standard especially in food and beverage applications for low oxygen concentrations. The special electrode design with guard ring around the cathode together with the larger surface of the cathode allows for measurement down to 1ppb dissolved oxygen.

Thanks to the integrated ISM technologywith Plug and Measure capability makes installation much easier and offers new possibilities for maintenance planning thanks automated self diagnosis and asset management. Together with the iSense Asset Suitealways one step ahead.

规格 - InPro 6900(i) 痕量极谱法氧气传感器

市场 /应用 酿造应用中的消?卫生过程
精度 1 % + 1 ppb

1 % + 3 ppb
消毒皃/td> yes
耐高厊/td> no
液接材质 stainless steel (AISI316L) with 3.1B certificates
机械耐压 max. 12 bar (174 psi) absolute
连接?/td> VP
检测极陏/td> 在水溶液中为 1 ppb 至饱

在含二氧化碳溶液中为 3 ppb 至饱咋/td>
ISM yes
ATEX证书 SEV 14 ATEX 0169 X

Ex ia IIC T6/T5/T4/T3 Ga/Gb

Ex ia IIIC T69oC/T81oC/T109oC/ T161oC Da/Db
IECEx Certificate of Conformity IECEx SEV 14.0026X

Ex ia IIC T6/T5/T4/T3 Ga/Gb

Ex ia IIIC T69oC/T81oC/T109oC/ T161oC Da/Db
FM批准 IS/ I II III /1 /ABCDEFG /T6
Insertion length for 12 mm: 70 120 220 mm (2.8" 4.7" 8.7")

As with all oxygen sensors from METTLER TOLEDO also the ISM sensors fulfill highest requirements for hygienic design in compliance with EHEDG and 3-A standards. The proven maintenance concept with membrane body and replaceable inner body is continued with all i-type sensors.

Features and Benefits

Enhanced diagnostics

  • Permanent sensor monitoring with ISM technology reduces the risk sensor failures.
Predictive maintenance

  • The enhanced diagnostics allows for better maintenance planning "as few as possible as often as necessary".
High process safety

  • FDA compliant materials of construction and easy-to-clean high-polished surface (N5 grade) to satisfy increasing regulatory requirements.
Reduced service time down to just 5 minutes

  • Thanks to the easy-to-replace membrane body and quick-disconnect interior body.
Long sensor lifetime

  • Durable and rugged sensor design for increased resistance to harsh environments.
Installation in hazardous zones

  • ATEX certificate: SEV 14 ATEX 0169 X

    Ex ia IIC T6/T5/T4/T3 Ga/Gb

    Ex ia IIIC T69oC/T81oC/T109oC/ T161oC Da/Db

    IECEx Certificate of Conformity: IECEx SEV 14.0026X

    Ex ia IIC T6/T5/T4/T3 Ga/Gb

    Ex ia IIIC T69oC/T81oC/T109oC/ T161oC Da/Db

    FM approval: IS/ I II III /1 /ABCDEFG /T6
